SG4 Extended

95ASE2080

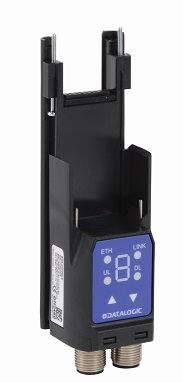

SG4-DONGLE
SG4 EXTENDED Ethernet communication interface

Type 4 safety light curtain with advanced functionality

Overview

  • No dead zone
  • Pigtail cable with M12 connector
  • Cascade connection of up to 3 units
  • Up to 20m operating range and 1800m protected height
  • Compact dimensions (35 x 41 mm section)
  • Anti-interference coding
  • Integrated Muting function
  • Floating Blanking, Fixed Blanking and Reduced Resolution
  • Configurable with:
  • Pushbuttons for common configuration
  • Graphic User Interface for complete parametrisation
  • Ethernet Interface for programming, monitoring and error logging

Technical Features

Detection properties
Nominal sensing distance n/a
Resolution n/a
controlled height n/a
number of rays n/a
Sensitivity adjustment n/a
Effective Aperture Angle n/a
Application
Description Ethernet adapter
Functions SG4 Programmable dongle
Safety parameters
Type Safety accessory
SIL n/a
SILCL n/a
Outputs
Output type n/a
Response time n/a
Electrical data
Operating Voltage n/a
Load current ≤ 500mA each output
Emission n/a
Interference to external light n/a
Power Consumption - Receiver n/a
Power Consumption - Emitter n/a
Mechanical data
Dimensions n/a
Material n/a
Connections M12-12 poles + M12-5 poles + M12-4 poles D-Coded
Generical Data
Network Interface Ethernet TCP/IP
Dimensions n/a
Humidity 15 … 95 % (no condensation)
Mechanical Protection IP65
UNASSIGNED
Disegno 2D PDF n/a

Downloads for SG4-DONGLE
