| Nominal sensing distance | 0,2 … 19 m |
| Resolution | 30mm |
| controlled height | 450 mm |
| number of rays | 24 |
| Sensitivity adjustment | n/a |
| Effective Aperture Angle | ≤ ±5° |
| Function Principle | Emitter + Receiver |
| Available functions | Automatic Restart |

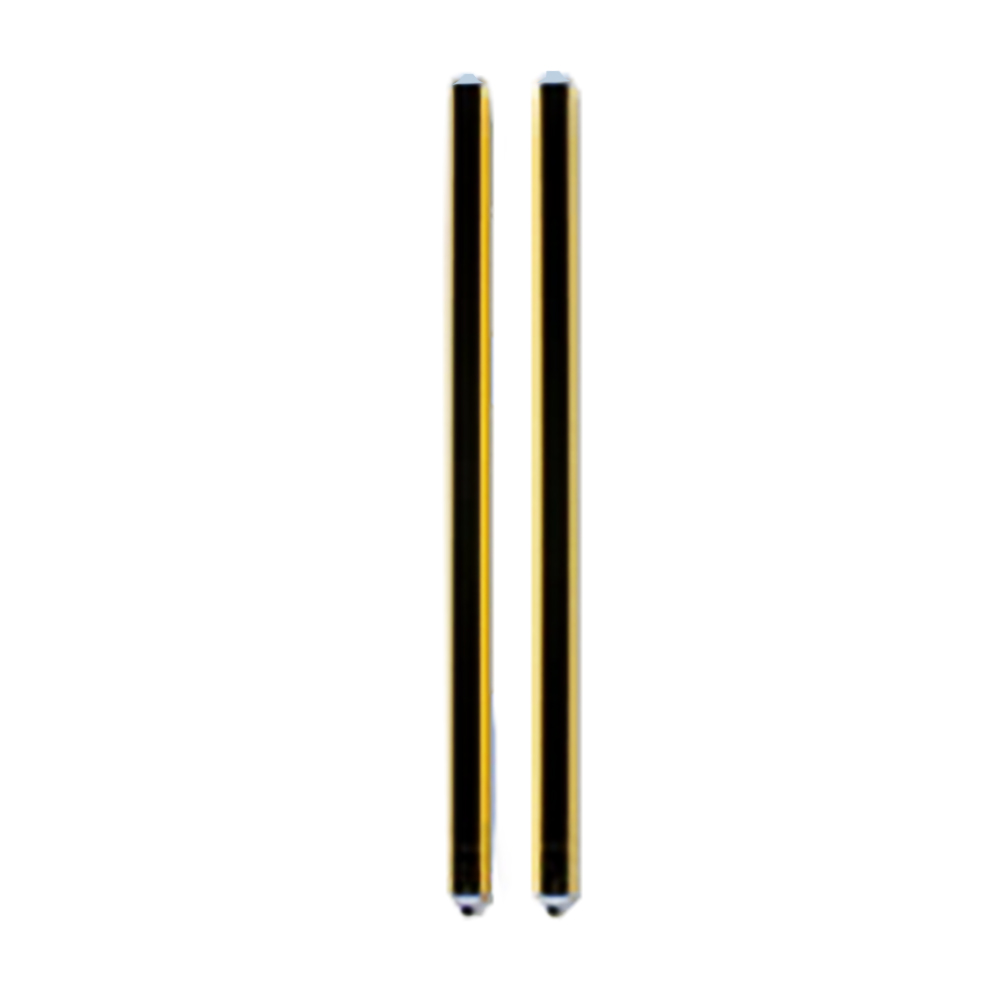

| Description | Compact standard |
| Functions | Hand protection res. 30 mm |
| Type | Type 2 safety light curtain (A) |
| SIL | 1 |
| SILCL | 1 |
| PL | c |
| PFHd | 1,04E-08 |
| Dcavg | 97,50% |
| MTTFd | 273 years |
| SFF | 98,40% |
| Output type | 2 x PNP-NO (OSSD safety output) |
| Response time | 10,9 ms |
| Operating Voltage | 24 Vdc ± 20% |
| Load current | ≤ 500mA each output |
| Emission | Infrared LED (850 nm wavelength) |
| Interference to external light | According to IEC 61496-2 |
| Power Consumption - Receiver | ≤ 3W (no load) |
| Power Consumption - Emitter | ≤ 2W |
| Capacitive Load | ≥ 2,2µF |
| Cabel Length (Power Supply/Output) | ≤ 50m |
| Dimensions | 33x37x533 |
| Connections | M12-4 poles (emitter) M12-5 poles (receiver) |
| Storage temperature | -25…+ 70°C |
| Material | Painted aluminum / PMMA / PC MAKROLON |
| Vibrations | Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6) |
| Shocks | 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29) |
| Approvals | CE, cULus, TÜV |
| EMC compatibility | According to 2014/30/EU Directive |
| Supplied Accessories | Standard "L" Mounting Brackets: 4 pcs kit |
| Dimensions | 32,3x36,9x533,2 mm |
| Operating Temperature | -10…+55°C |
| Humidity | 15 … 95 % (no condensation) |
| Mechanical Protection | IP65 |
