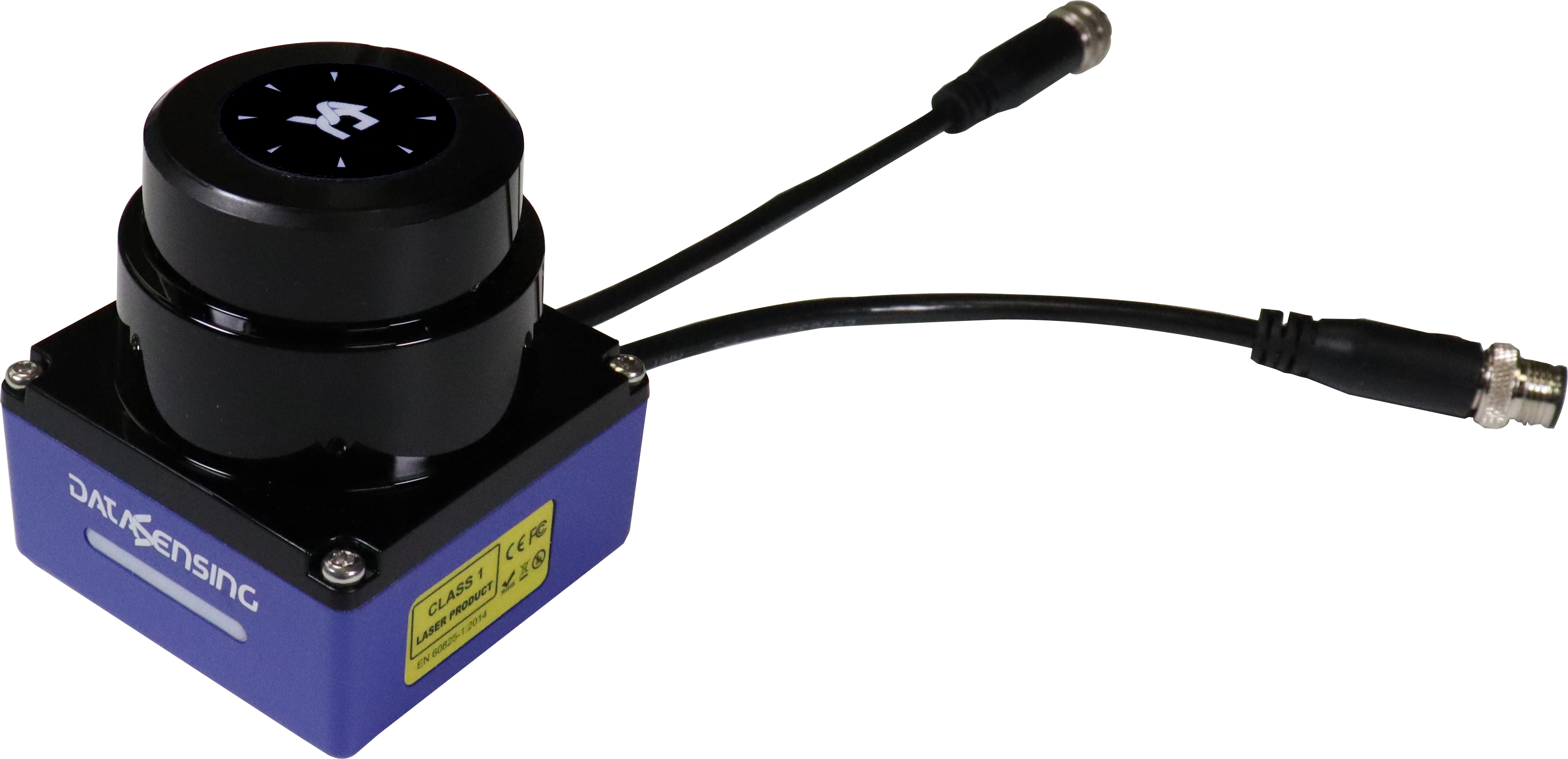

LGS-A10 Compact lidar for collision avoidance and 2D object detection
Overview
COMPACT, RELIABLE AND RUGGED LIDAR FOR COLLISION AVOIDANCE AND 2D OBJECT DETECTION
The LGS-A10 is a compact, rugged lidar for industrial use, ideal for AMRs and AGVs collision avoidance or 2D object detection, with quick setup and monitoring by dedicated PC interface (LGS_PRO). It ensures, even outdoor, reliable detection by digital I/O and accurate measuring stream trough to Ethernet UDP connection.
ToF technology on infrared laser
2D Measurement data for natural navigation and for object profiling
360° measurement for all-round scanning
Very Compact design suitable also for smaller machines
High precision and reliable measurement up to 25 meters
Up to 225000 measured points per second
Up to 25 Hz selectable rotation frequency
0.25° angle resolution
Dimensions: 65 x 65 x 70 mm
10 m x 360° detection field
3 simultaneous detection outputs
Up to 16 zone sets
5 selectable detection capabilities
10 selectable response times
Output response time min = 80 ms
Technical Features
Detection properties
Nominal sensing distance
25 m (Measurement) ; 10 m (Object detection)
Minimum sensing distance (blind zone)
0.1 m
Measurement range @ 10% targe remission
10 m
Angular resolution
0.25° @10Hz / 0.5° @15Hz / 1° @25Hz
Application
Description
Compact lidar LGS-A10
Functions
AMR AGV Collsion avoidance - 2D object detection
Configuration and monitoring interface
LGS PRO
Outputs
Response time
80 ms min
Data Transmitted
angle - distance - signal strenght of each measuring point ; time stamp and more
Ethernet connection
M12 4 pins M Key D -- IEEE 802.3u 100Mbps Ethernet
