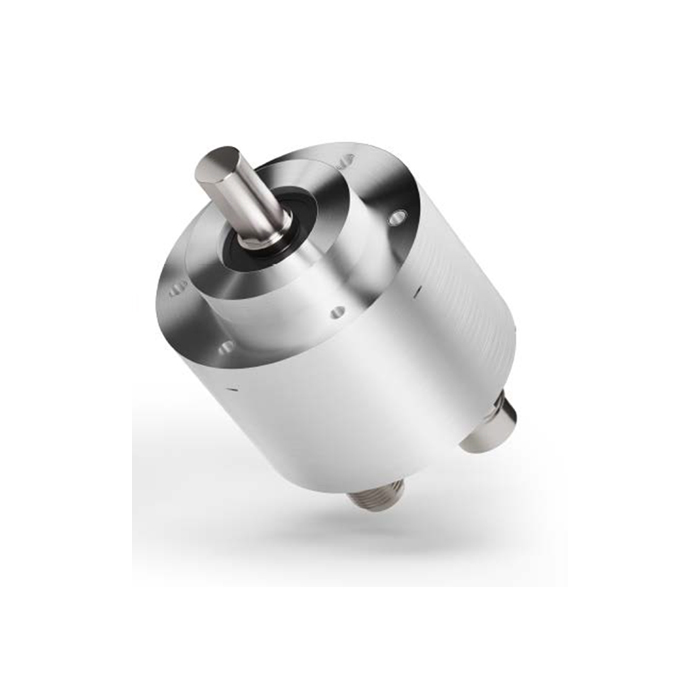

High resolution absolute multi turn encoders with embedded PROFINET and axial connectors
- Standard dimension Ø58 mm
- Hollow or solid shaft
- Extremely high accuracy
- Integrated Fieldbus interface
| Resolution | 27 bits |
| Angular resolution | 8192 cpr x 16384 turns |
| Function Principle | Absolute multiturn encoder with Fieldbus |
| Output type | axial connectors |
| Operating Voltage | 7.5-34 VDC |
| Dimensions | Ø58 mm x 51 mm |
| Mounting | Shaft Ø10mm |
| Housing material | Metal - Aluminium |
| Connections | M12 axial connectors |
| Shaft diameter | Ø10mm |
| Network Interfaces | EtherCAT |
