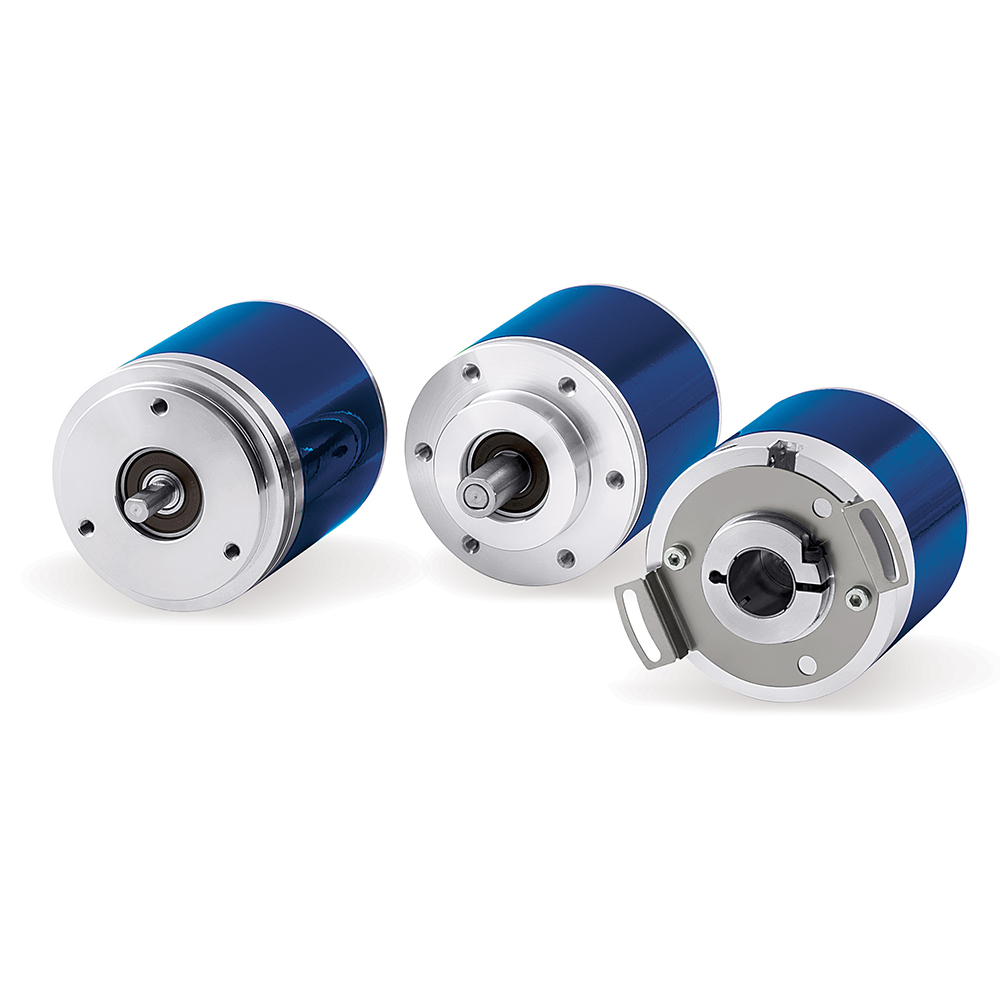

AMT58

95B081090

AMT58-S10-13x12-M12
Encoder Absolute multiturn - shaft 10 mm -SSI 25 bit - M12

SSI® Multi-turn Line

Overview

  • Standard dimension Ø58mm
  • Hollow or solid shaft
  • Very high resolution
  • Very high accuracy

Technical Features

Detection properties
Nominal sensing distance 8192 cpr x 4096 turns
Sensitivity adjustment n/a
Application
Description Shaft Ø10mm
Functions Absolute multiturn
Outputs
Output type Gray SSI RS422
Response time n/a
Electrical data
Operating Voltage 7.5-34 VDC
Emission n/a
Mechanical data
Dimensions Ø58x52
Connections M12
Material Metal - Aluminium
Generical Data
Dimensions Ø58x52
