VBR

VBR1/D0-3V

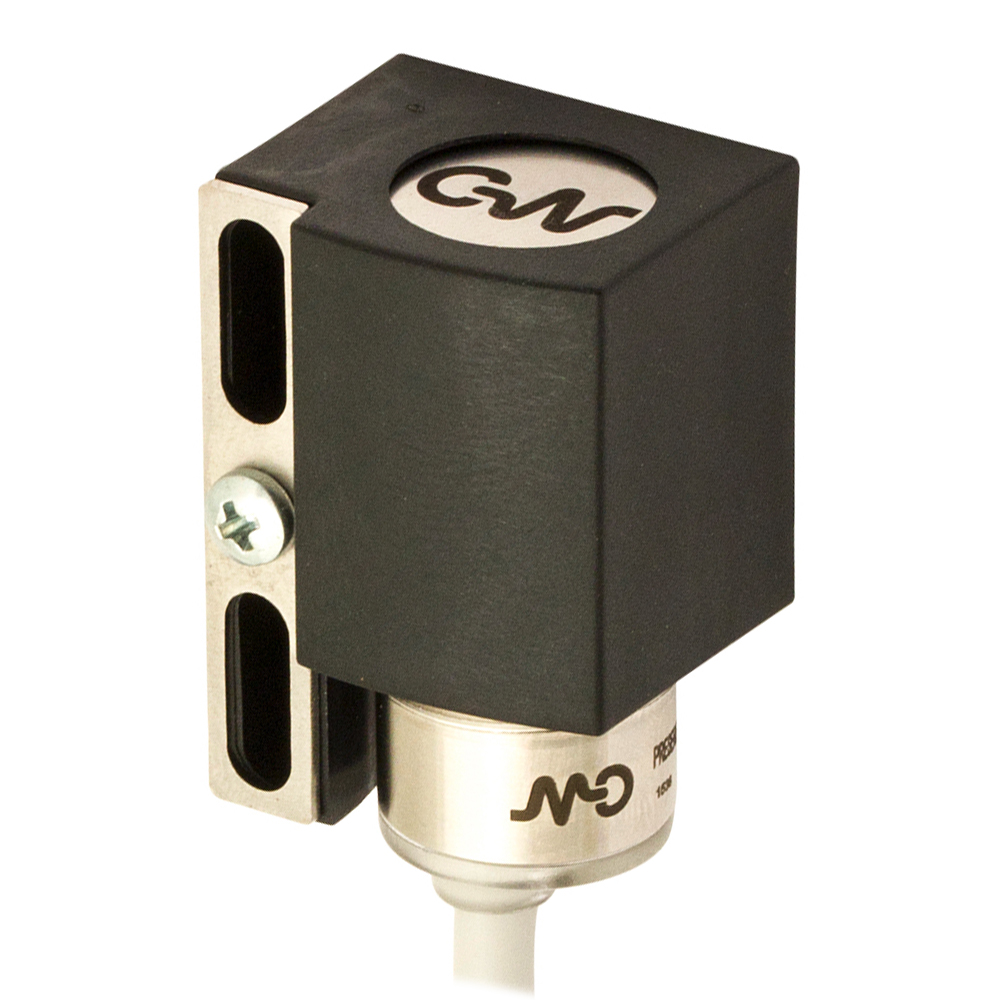

Vibration, shock and inclination sensor, 3-axis, RS485 + Analogue, M12 pigtail
Vibration, shock and inclination sensor, 3-axis, RS485 + Analogue, 200 mm cable + M12 pigtail plug exit

Vibrations and inclination sensor

Overview

  • M18 housing
  • AISI316L stainless steel housing (front included)
  • IP67 protection degree

Technical Features

Detection properties
Operative range ± 2g; ± 4g; ± 8g; ± 16g (selectable)
Resolution 15,62mg @ ± 2g 31,25mg @ ± 4g 62,50mg @ ± 8g 125mg @ ±16g
Detection Axes 3 (X, Y, Z)
Application
Technology MEMS
Outputs
Output type Digital + Analogue (I/V selectable)
Output Function Vibration amplitude
Digital Output RS485 57600 baud rate - 1 bit stop - no parity
Voltage Analogue Output 0…5V / 0…10V (selectable)
Current Analogue Output 4…20mA / 0…20mA / 0…24mA (selectable)
Electrical data
Operating Voltage 19,2 … 28,8 Vdc
LED indicators Green: Run mode Yellow: writing/programming memory Blue: transit of RS485 packet data Red: Interrupt active
Reverse Polarity Protection Yes
Impulsive Overvoltage Protection Yes
Power Consumption < 1 W
Frequency Range 0 … 400Hz
Digital Resolution 16 bit @RS485 (complementary to 2)
Analogue Resolution 12 bit
Load Resistor (Voltage) 1kΩ … 1MΩ
Load Resistor (Current) 100 … 500Ω
Mechanical data
Dimensions M18
Housing Material Stainless steel AISI316L (body) Grilamid (cable exit)
Connections pigtail 200mm + M12- 5 poles
Active Head Material Stainless steel AISI316L
Operating temperature -25°C …+70°C
Storage temperature -30°C … + 90°C (without ice)
humidity < 80% (without condensation)
Test/Approvals
Approvals CE
Degree of protection IP67
Accessories
Supplied Accessories 2 x nuts
Generical Data
Dimensions M18
Operating Temperature -25°C …+70°C
Humidity < 80% (without condensation)
Mechanical Protection IP67

Connections

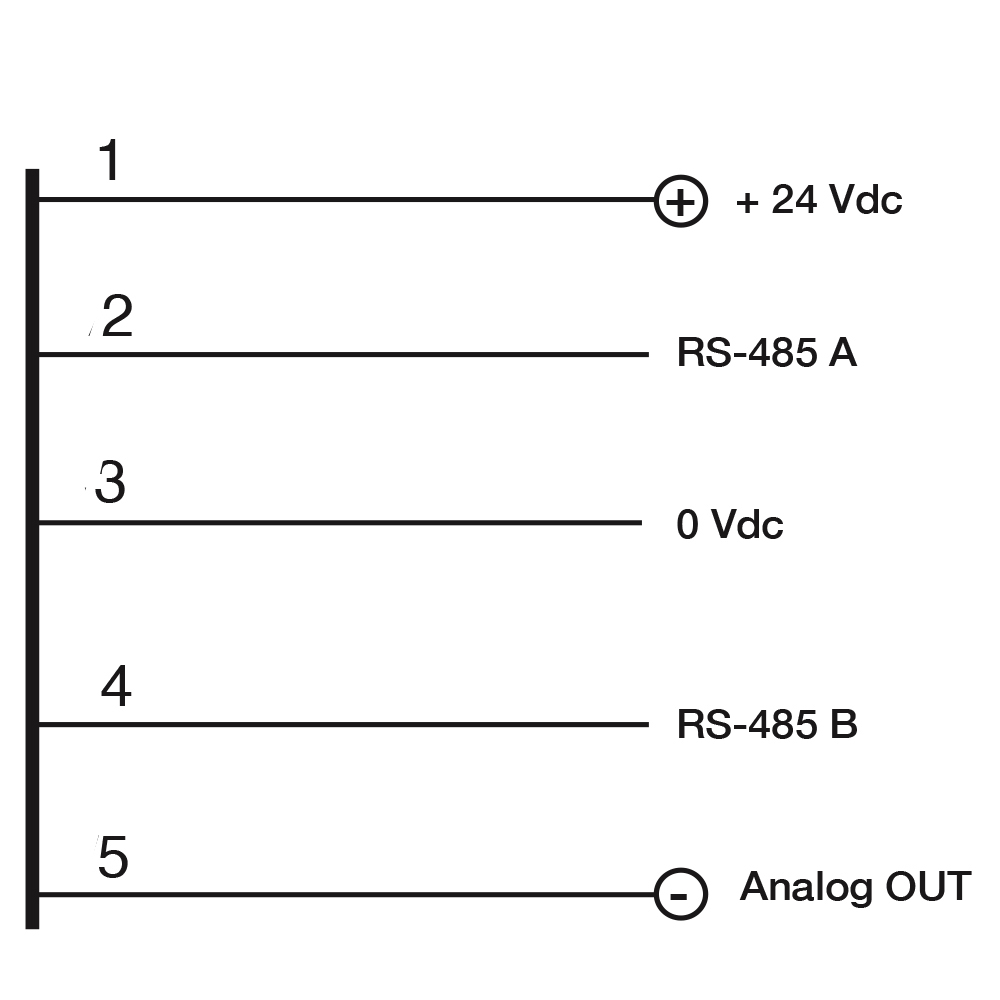

Eletrical diagram

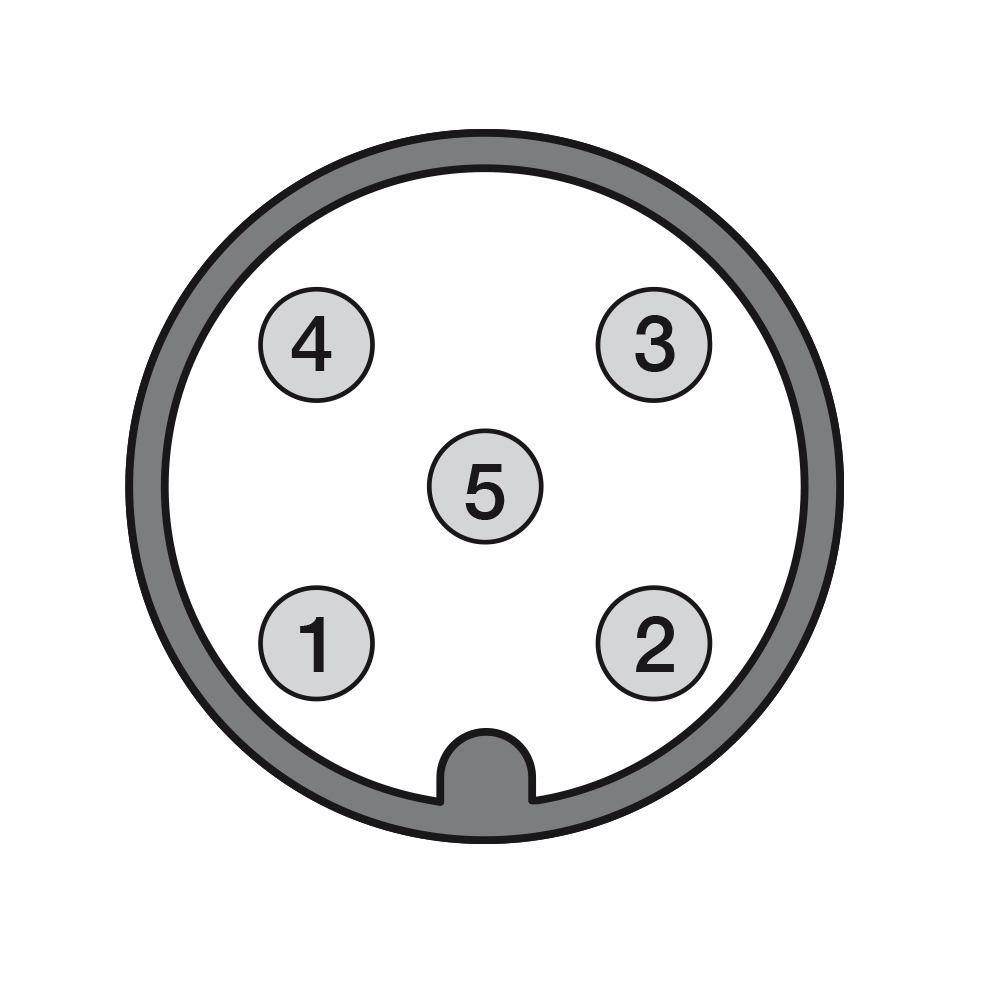

Connector

Others

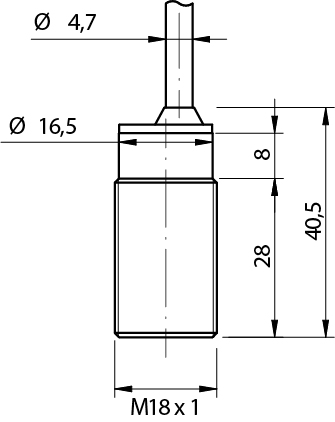

Dimensions

Downloads for VBR1/D0-3V
