UR+DG

DGE/01-2A

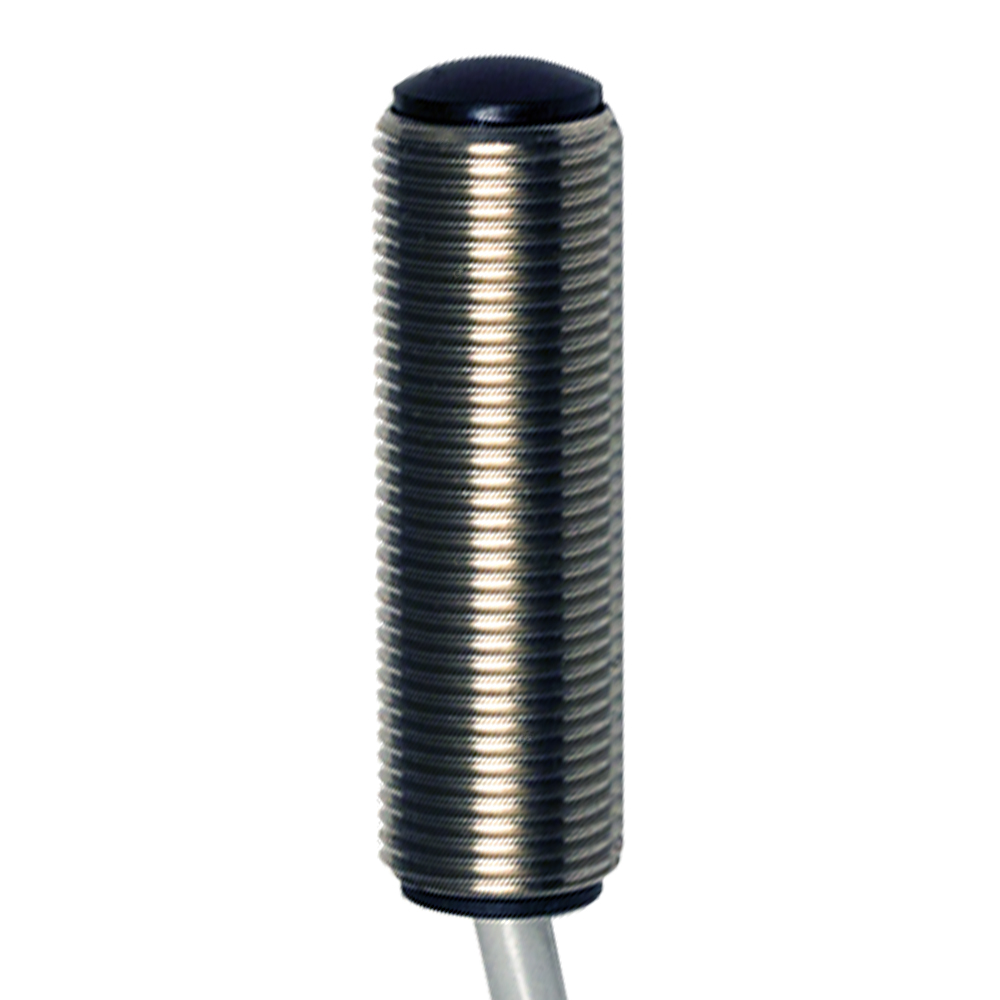

Photo.M12,IR emiss.,Cable,Emitter
Photoelectric sensor Em. 75 mm M12 L41 mm Met. plast. 5 m

Control unit for miniaturized sensors with miniature photoelectric sensors

Overview

  • The unit allows the mouting of miniature pair of sensors suitable for very harsh environments (DG series)
  • LED indicators: alignment (stability), operating voltage, alarm and output state
  • Operating voltage AC or DC
  • Relay output and relay alarm output
  • Double timer with indipendent adjustments
  • Sensitivity adjustment
  • Possibility of mounting on panel
  • IP68 photoelectric sensors for applications in harsh environment
  • Sensing distance 60 m (HI), 30 m (LO)
  • Approvals: CE

Technical Features

Detection properties
Nominal sensing distance 75m
Beam angle ± 5°
Application
Function Principle Emitter
Optic position Axial
Electrical data
Operating Voltage from UR control unit
Emission Infrared
Interference to external light 20000 lux
Mechanical data
Dimensions M12 x 41mm
Housing Material Stainless steel AISI 303
Connections 5m PVC cable
Active Head Material Polycarbonate
Operating temperature -20°C … +60°C
Diameter/Dimension M12
Test/Approvals
Approvals CE
EMC compatibility Conforming with EMC directive according with EN60947-5-2
Degree of protection IP67
Generical Data
Dimensions M12 x 41mm
Operating Temperature -20°C … +60°C
Mechanical Protection IP67

Connections

Eletrical diagram

Others

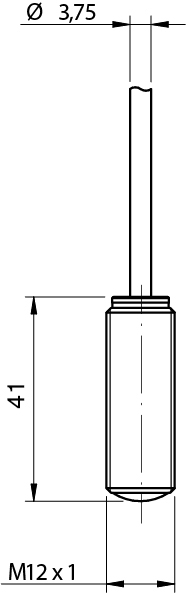

Dimensions
Response curves
