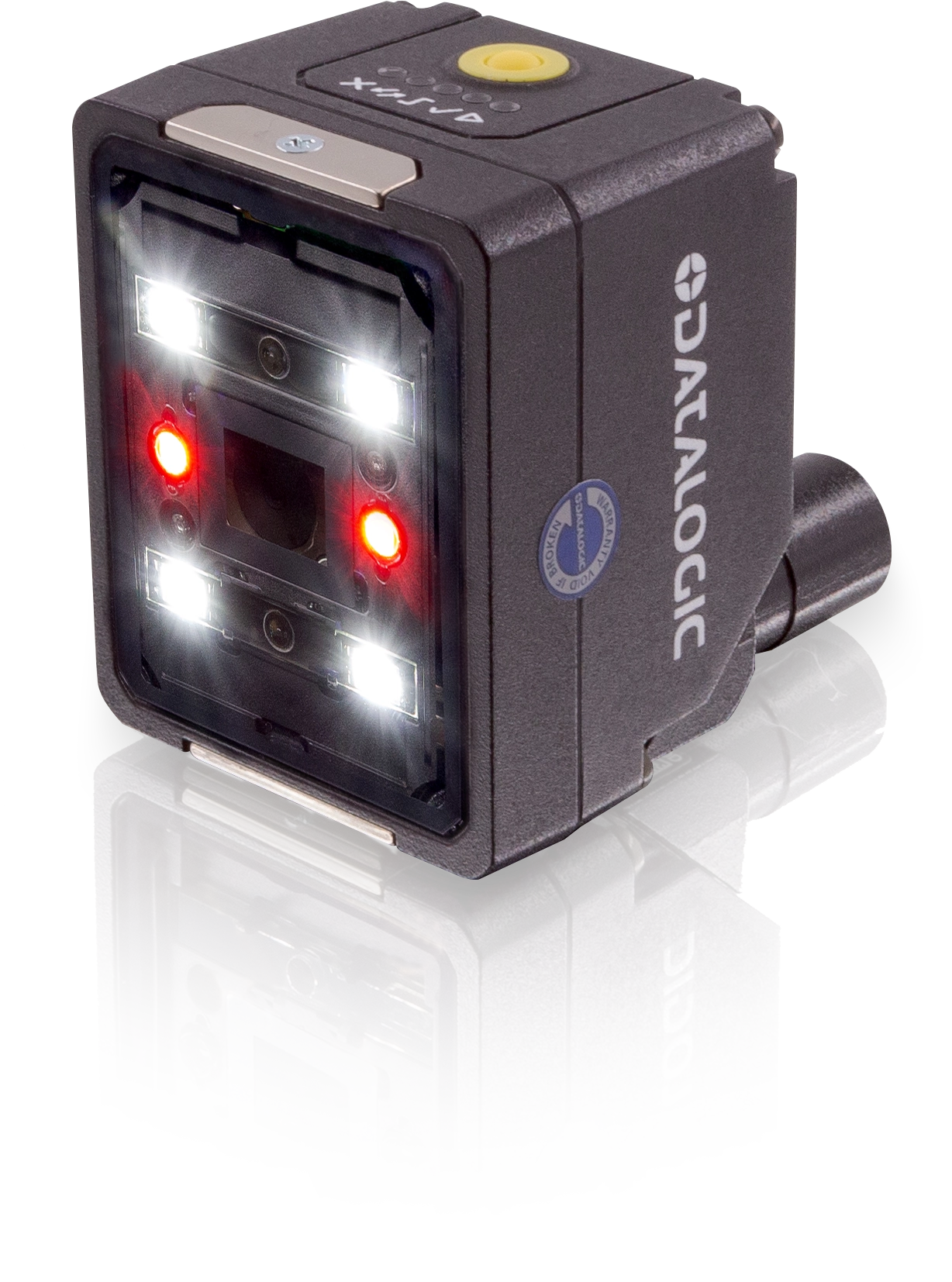

AI-powered smart photoelectric sensor with machine learning algorithms.
No vision tool programming required
No need of machine vision skills
Deterministic response time
Reduced cost of ownership and maintenance
Electronic focus control
Up to 400mm operating distance
Bright and visible Red LED pointer
Powerful white polarized light illuminator
Green/Red LED Spot for GOOD/NO-GOOD part
Ethernet TCP/IP communication
Easy and Intuitive WEB Server GUI for mai
| Nominal sensing distance | 400 mm |
| Sensitivity adjustment | TEACH-IN push button + WEB based GUI (through Ethernet) |
| Minimum sensing distance (blind zone) | 50 mm |
| Function Principle | Object detection classification 6 classes + Anomaly detection |
| Optic position | Radial 90° |
| Functions | Object detection classification 6 classes + Anomaly detection |
| Output type | 4 NPN/PNP/PP, 1 Ethernet 10/100 (M12 8-pin X-coded) |
| Response time | 15…50 ms (deterministic classifier) 200 ms max (non det. anomaly) |
| Operating Voltage | 10…30 Vdc |
| Leakage current | ≤ 400 μA |
| Output voltage drop | 100 mA |
| Max ripple content | ≤10% |
| LED indicators | 6 LED yellow (output, run, trigger, good, bad, not used) + 2 on back (1 blue power, 1 yellow Ethernet) |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission | LED white 4 polarized white H.P. LEDs + 2 LED red aim + 1 LED green spot + 1 LED green spot |
| Interference to external light | according to EN 60947-5-2 : 2020 |
| Impulsive Overvoltage Protection | Yes |
| Power Consumption | 0.17…0.5 mA @30 V …10 V (5W) @30V…10V (5V) |
| Insulation resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Contact resistance | 500 Vac 1 min., between electronics and housing |
| Dimensions | 47 x 58 x 38 mm |
| Housing Material | Metal - Aluminium / PMMA |
| Connections | M12 plug 8 pin |
| Active Head Material | PMMA |
| Storage temperature | - 25°C…+70°C |
| Material | PMMA |
| shaft material | Yellow rubber |
| Diameter/Dimension | Cubic |
| Approvals | CE CSS |
| EMC compatibility | EN 60947-5-2 |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
| Dimensions | 47 x 58 x 38 mm |
| Operating Temperature | -25…70°C |
| Mechanical Protection | IP67 |
| Imager | 50 (total anomaly), 50 (total classifier) |
