NAMUR

95B064390

IS-18-C20-S2
Inductive Proximity Sensor ø18 standard - non flush 8 mm - namur - M12

Non-contact detection Cost effective and reliable detection of any metal part

Overview

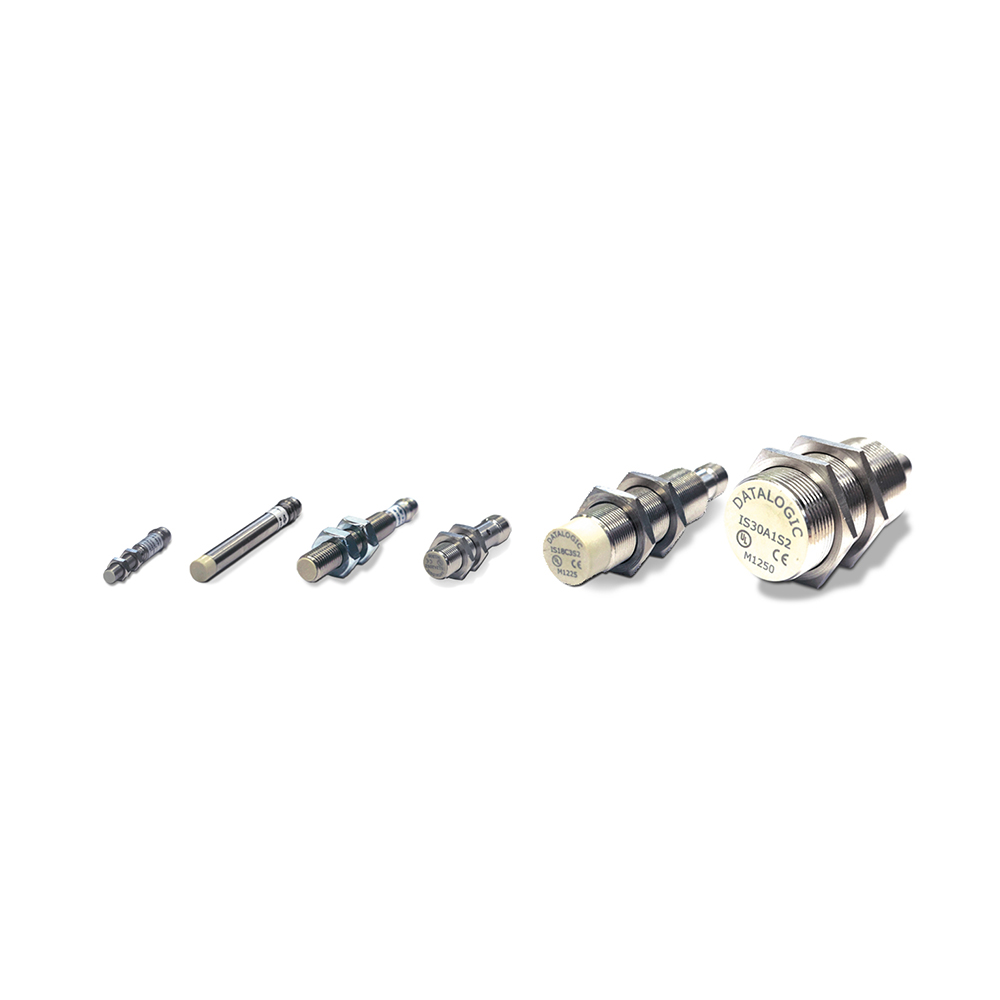

  • Standard proximity M4, M5, M8, M12, M18, M30
  • Double range (i.e. M12 4mm, M18 14mm, M30
    • 20mm)
  • Unshielded or shielded models for flush mounting
  • Nickel brass or stainless steel short and long
    • housing
  • Ecolab and Diversey certifications for industrial
    • detergents
  • Multi-voltage, Metal face, Weld field immune models
  • NO/NC, NPN or PNP output and programmable
    • versions.

Technical Features

Detection properties
Nominal sensing distance 8mm
Operanting distance 0…6,48mm
Standard target 24x24mm FE360
Correction Factor copper: 0,4…0,5 / aluminium: 0,4...0,6 / brass: 0,5...0,7 / stainelss steel: 0,7…1,05
Repeat Accuracy < 3% (UB 24V Ta=23°C ±5°C)
Hysteresis < 10%
Application
Description M18 NAMUR no-flush mount
Functions Proximity
Outputs
Output type NAMUR
Output Function NAMUR
Switching frequency 1kHz
Response time 0,5
Electrical data
Operating Voltage 7.7...9Vdc
No-Load supply current < 1mA (target absent)
Load current < 3mA (target present)
Max ripple content ≤ 10%
Short-circuit protection Yes
Reverse Polarity Protection Yes
Emission ≥100kHz
Protection against inductive loads Yes
Mechanical data
Mounting Unshielded
Dimensions Ø18x65
Housing Material Nickel-plated brass
Connections M12 Plug
Active Head Material LCP
Tightening torque 20Nm
Material Nickel-plated brass
Diameter/Dimension M18
Test/Approvals
Approvals CE cULus II 3G EX nA II T6 II 3D EX tD A22 IP67 T85°C
Accessories
Supplied Accessories 2 nuts M18x1
Generical Data
Dimensions Ø18 / L = 65mm
Operating Temperature -25°C…+60°C
Mechanical Protection IP67
