| Nominal sensing distance | 5mm |
| Operanting distance | 0…4,05mm |
| Standard target | 18x18mm FE360 |
| Correction Factor | copper: 0 / aluminium: 0,13 / brass: 0,27 / stainless steel: 0,70 |
| Thermal drift of Sr | < 10% |
| Repeat Accuracy | < 5% (UB 24V Ta=23°C ±5°C) |
| Hysteresis | 1 … 20% |

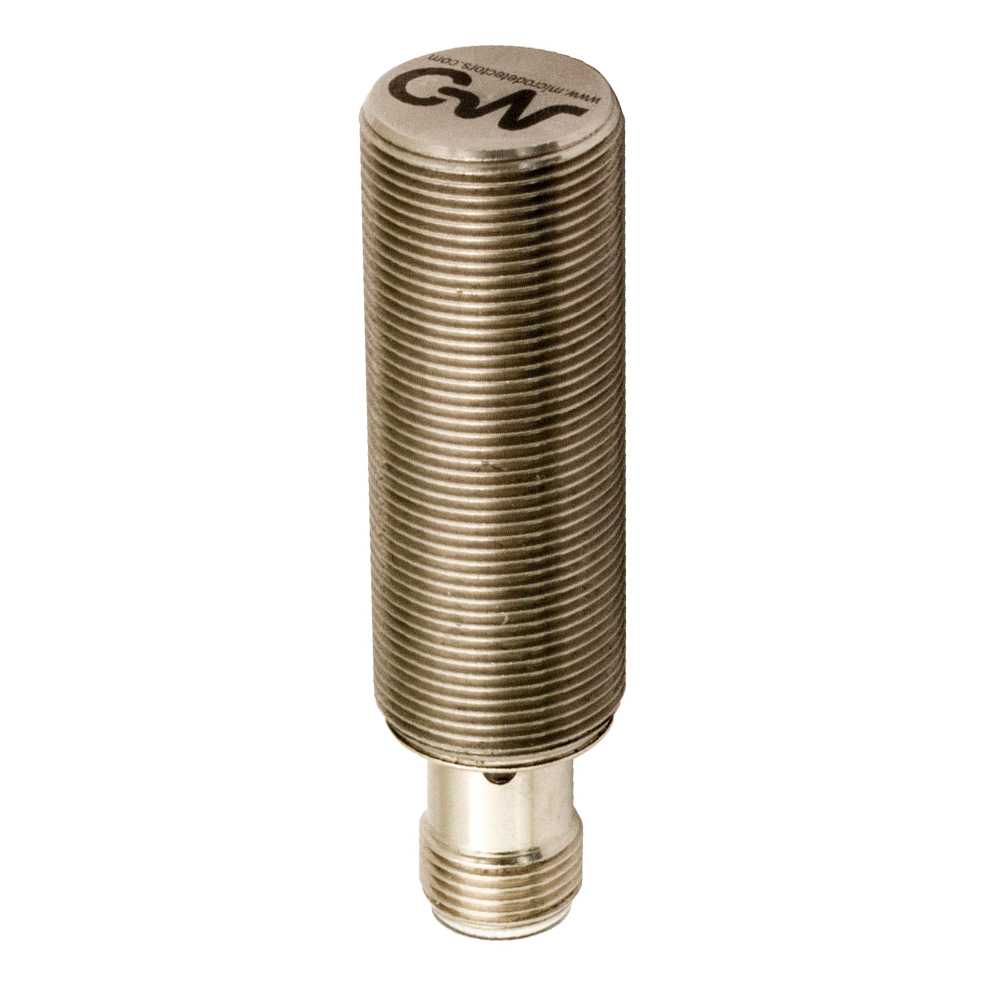

| Description | M18 short flush mount |
| Functions | Proximity |
| Output type | PNP |
| Output Function | NO + NC |
| Switching frequency | 100Hz |
| Operating Voltage | 10...30Vdc |
| No-Load supply current | ≤ 10mA |
| Load current | ≤ 200mA |
| Leakage current | ≤ 10μA |
| Output voltage drop | ≤ 1,5V @200mA |
| Max ripple content | ≤ 10% |
| LED indicators | Yellow LED output state |
| Time delay before availability | ≤ 50ms |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Impulsive Overvoltage Protection | Yes |
| Protection against inductive loads | Yes |

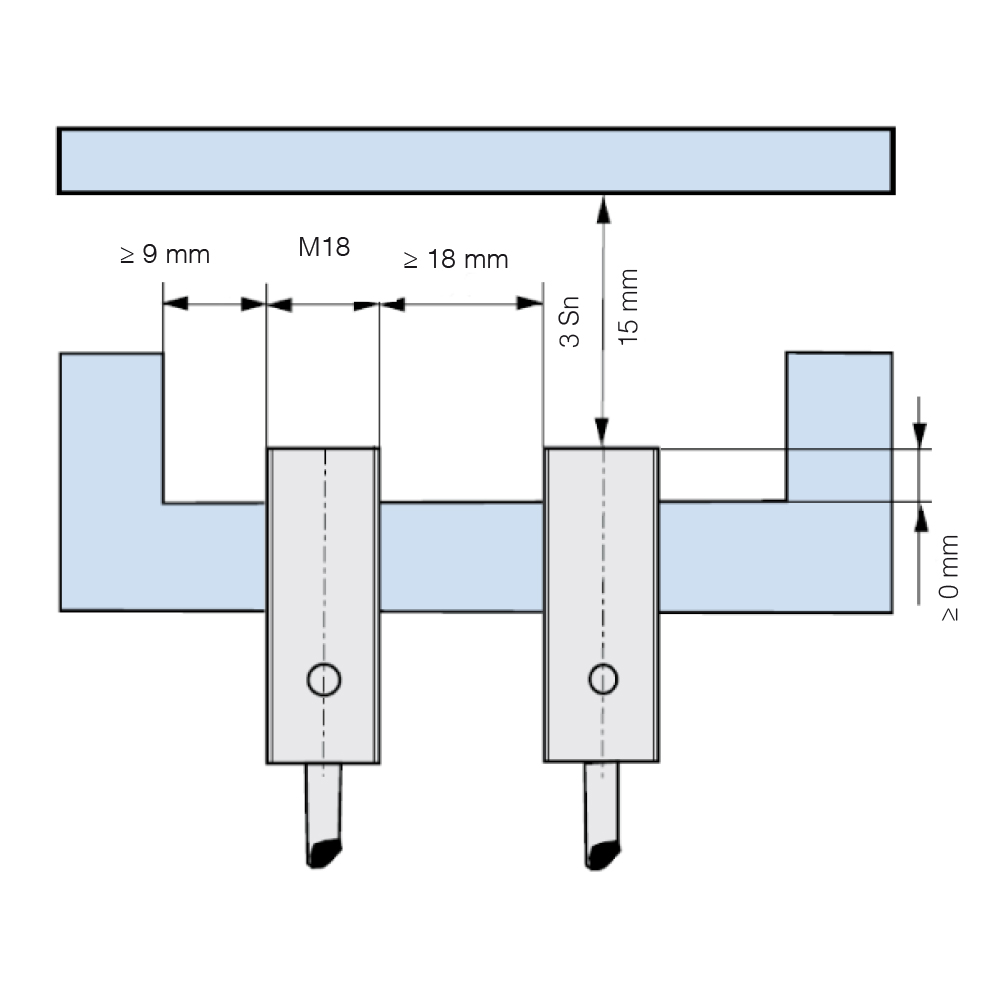

| Mounting | Shielded |
| Dimensions | M18 x 1 / L = 49mm |
| Weight | 55g |
| Housing Material | AISI316L Stainless Steel |
| Connections | M12 Plug |
| Active Head Material | stainless steel AISI316L |
| Tightening torque | 25Nm |
| Operating temperature | -25°C…+70°C |
| Material | AISI316L Stainless Steel |
| 0,25mm | 0,50mm |
| Diameter/Dimension | M18 |
| Approvals | CE cULus |
| EMC compatibility | IEC 60947-5-2 |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| Degree of protection | IP68, IP69K |
| IK05 | IK08 |
| 80bar | 80bar |
| Supplied Accessories | 2 nuts M18x1 |
| Dimensions | M18 x 1 / L = 49mm |
| Operating Temperature | -25°C…+70°C |
| Mechanical Protection | IP68 / IP69K |
