FG

FGRS/0N-0E

Photo.Midi,NPN-NO/NC,M12 plug,BGS

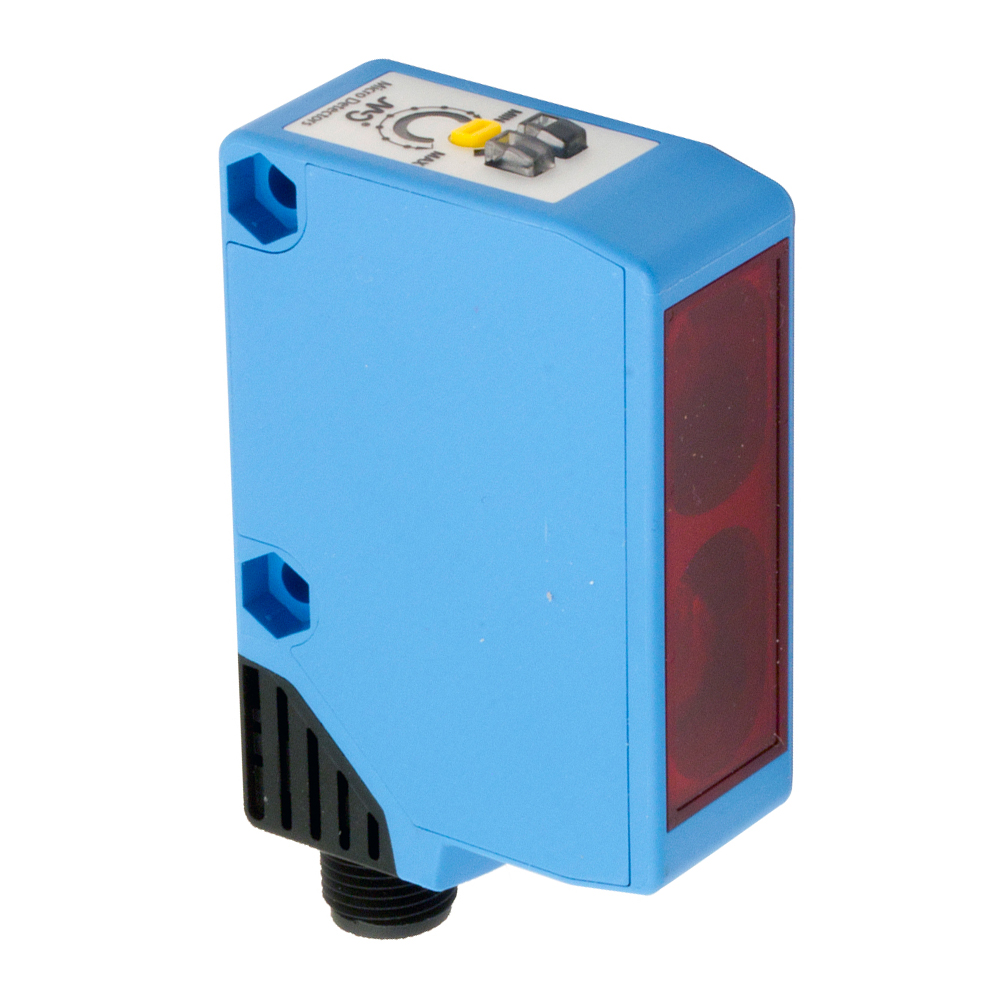

Photoelectric sensor compact Bgs adj. 10...30Vdc 310 mm NPN L/D conn. M12

Compact photoelectric switch sensors with high performances and high detection distances

Overview

  • Cable output or with revolving connector, NPN or PNP output (DC models) and SPDT voltage free relay output (AC models)
  • Selectable LO/DO output status
  • Totally protected against electrical damages
  • Background suppressions models: 310 mm, 600 mm
  • Reflex polarized sensitivity adjustment 12 m
  • Emitter and Receiver with max detecting range of 50 m
  • Double Multifunction LED indicator: output state and using the pointing
  • Sensitive adjustment models

Technical Features

Detection properties
Nominal sensing distance 310mm
Sensitivity adjustment Potentiometer 2 turns with position indicator
Minimum sensing distance (blind zone) 90mm
Application
Function Principle Blackground suppression
Notes white target Kodak 90% 100 x 100mm
Optic position Axial
Outputs
Output type NPN L/D Selectable
Output Function L/D Selectable
Switching frequency 160Hz
Response time 3,125ms
Electrical data
Operating Voltage 10…30VDC
No-Load supply current ≤ 35mA
Load current ≤100mA
Output voltage drop ≤1,8V@Iload=100mA
Max ripple content 5Vpp
LED indicators Green (powerON) Yellow (status output)
Time delay before availability ≤200ms
Short-circuit protection Yes
Reverse Polarity Protection Yes
Emission LED Red
Interference to external light 10,000Lux (minimum sunlight), 3,000 min HF lamp
Impulsive Overvoltage Protection Yes
Mechanical data
Dimensions 20x44,9x60mm
Weight 40g
Housing Material ABS
Connections M12 plug
Active Head Material PMMA
Operating temperature -25°C…+55°C
Material
Diameter/Dimension Cubic
Test/Approvals
Approvals CE UR
EMC compatibility EN 60947-5-2
Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-28
Degree of protection IP67
Accessories
Supplied Accessories Mounting bracket STFG 00
Generical Data
Dimensions 20x44,9x60mm
Operating Temperature - 25°C…+ 55°C (Without freeze)
Mechanical Protection IP67

Connections

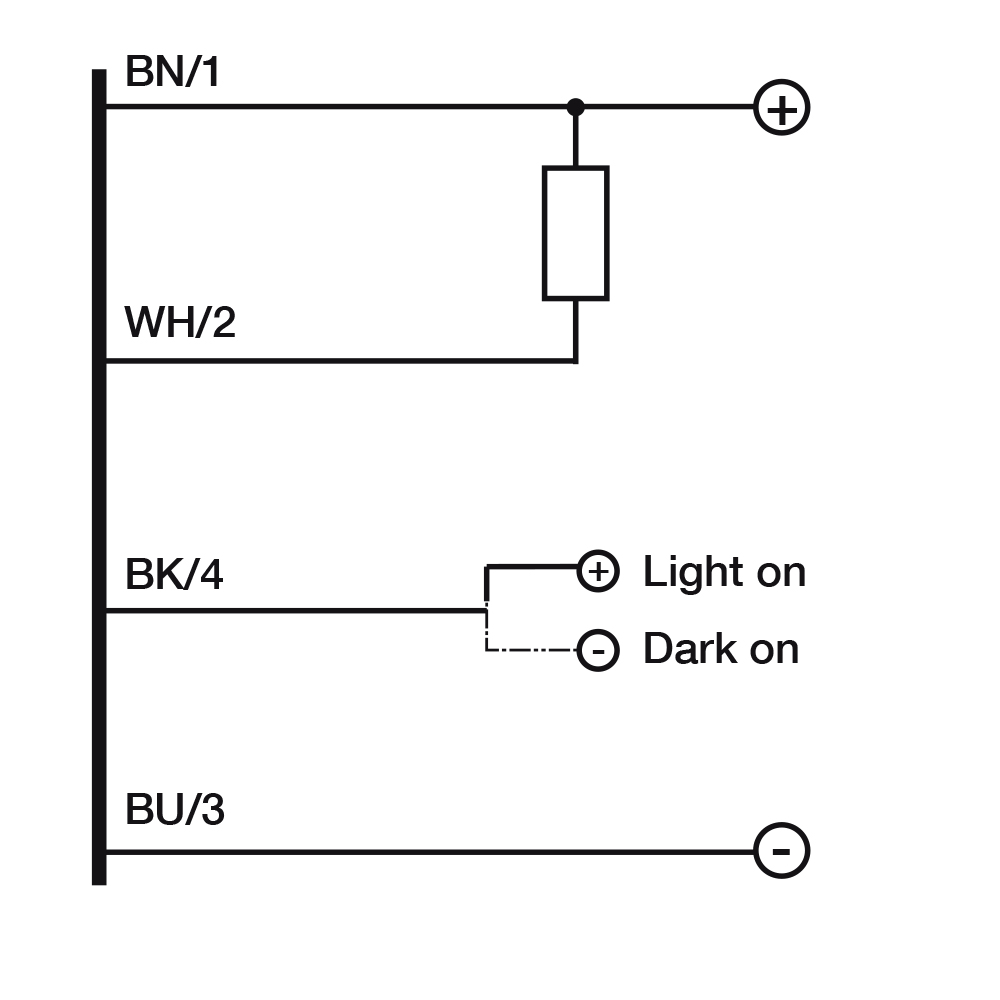

Eletrical diagram
Connector

Others

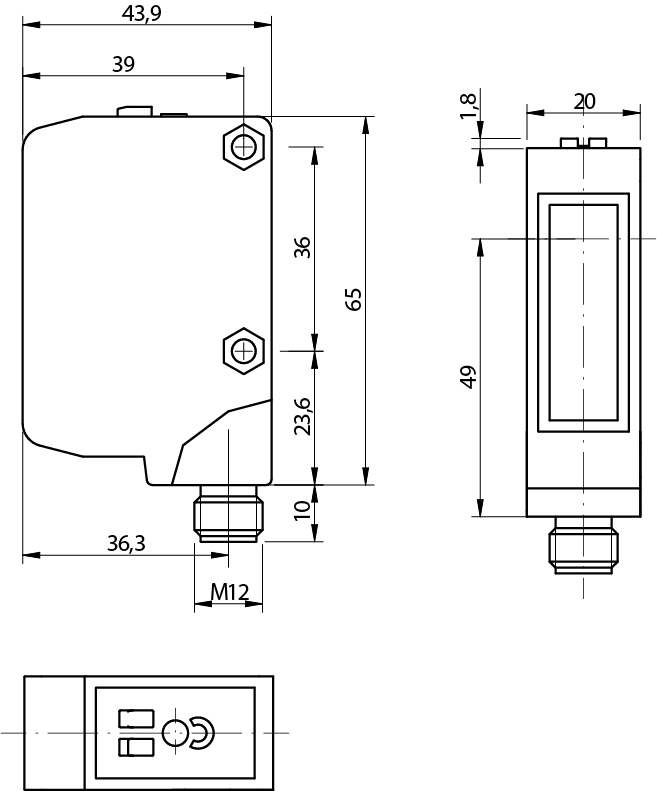

Dimensions

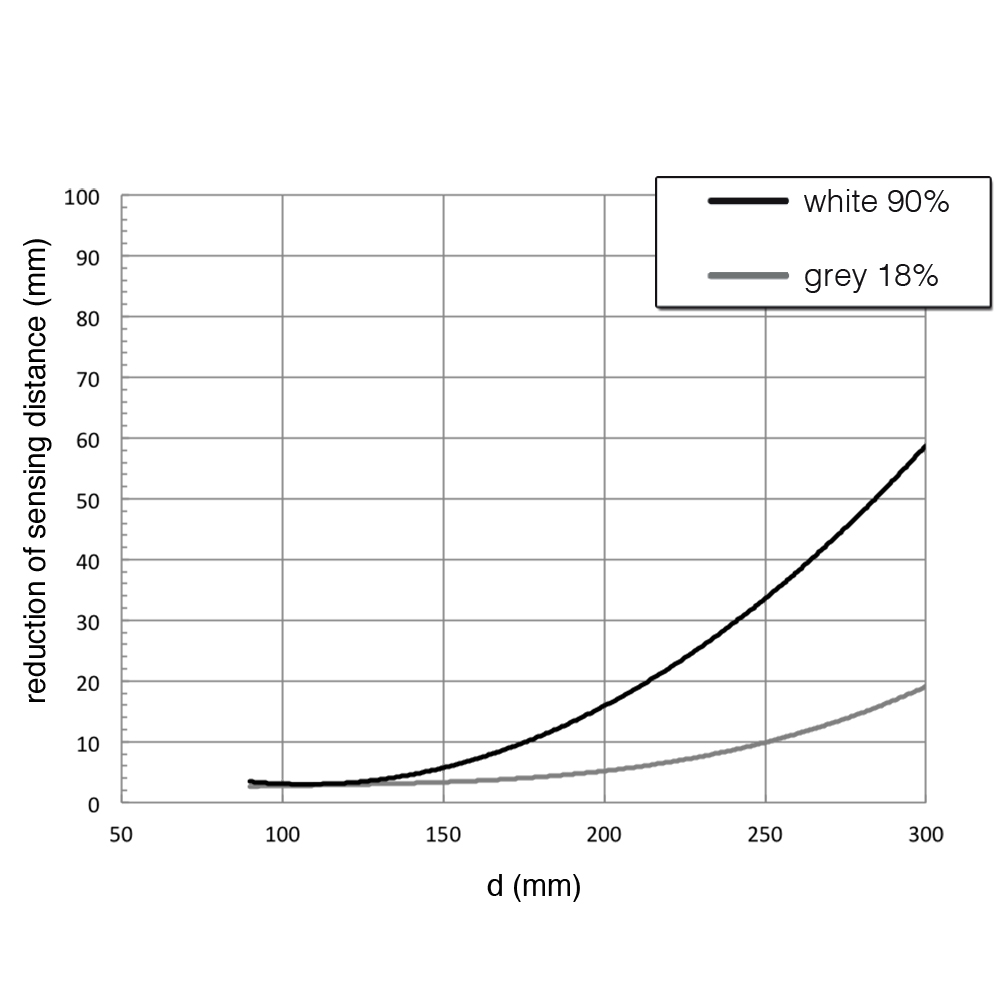

Response curves

Downloads for FGRS/0N-0E
