| Nominal sensing distance | 800mm |
| Thermal drift of Sr | 10% Sr |
| Repeat Accuracy | 5% |
| Sensitivity adjustment | Teach-in |
| Function Principle | Diffuse reflection (long distance, >600mm) |
| Notes | white target Kodak 90% 400 x 400mm |
| Optic position | Axial |

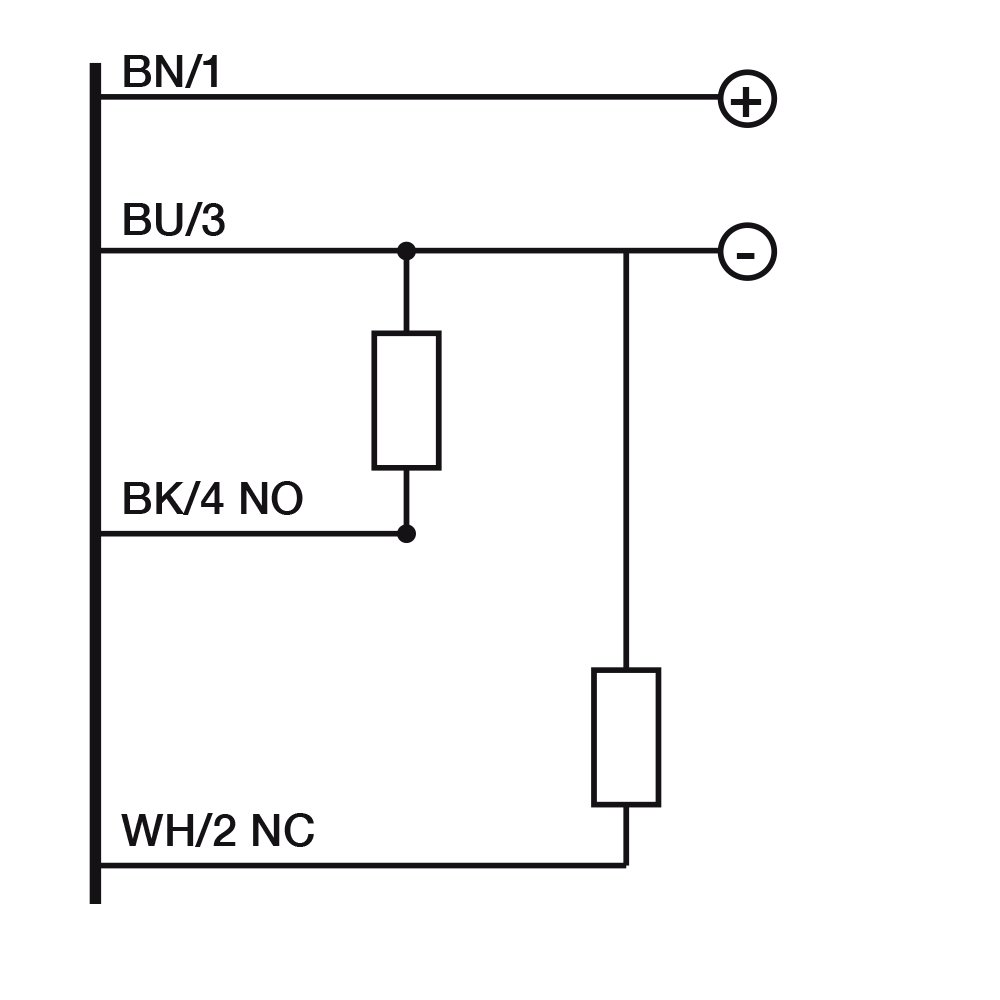

| Output type | PNP NO+NC |
| Output Function | NO+NC |
| Switching frequency | 500Hz |
| Response time | 1ms |
| Operating Voltage | 10…30VDC |
| No-Load supply current | ≤ 35mA |
| Load current | ≤100mA |
| Leakage current | ≤10μA |
| Output voltage drop | ≤2V@Iload=100mA |
| Max ripple content | ≤10% |
| LED indicators | Green Stability ; Yellow Output state , |
| Time delay before availability | ≤200ms |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission | LED Infrared (880nm) |
| Interference to external light | 5.000lux (incandescent lamp), 10.000lux (sunlight) |

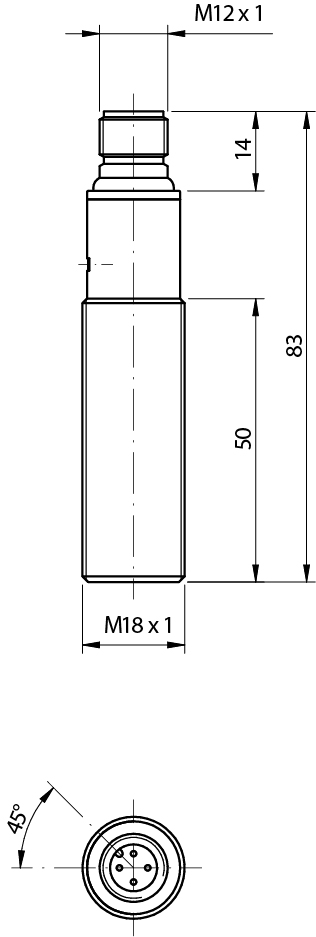

| Dimensions | M18x1/L=83mm |
| Weight | 60g |
| Housing Material | Stainless steel AISI 316L / PA12 plug |
| Connections | M12 plug |
| Active Head Material | PA12 |
| Tightening torque | 50Nm |
| Operating temperature | -25°C…+80°C (without freeze) |
| Diameter/Dimension | M18 |
| Approvals | CE cULus ECOLAB Diversey |
| EMC compatibility | EN 60947-5-2 |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| Degree of protection | IP68, IP69K |
| Supplied Accessories | Nuts M18 x 1 |
| Dimensions | M18x1/L=83mm |
| Operating Temperature | - 25°C…+ 80°C (Without freeze) |
| Mechanical Protection | IP68, IP69K |
