| Nominal sensing distance | Depending on optical fibres used |
| Repeat Accuracy | ≤ 5% |
| Sensitivity adjustment | 8 turn trimmer |

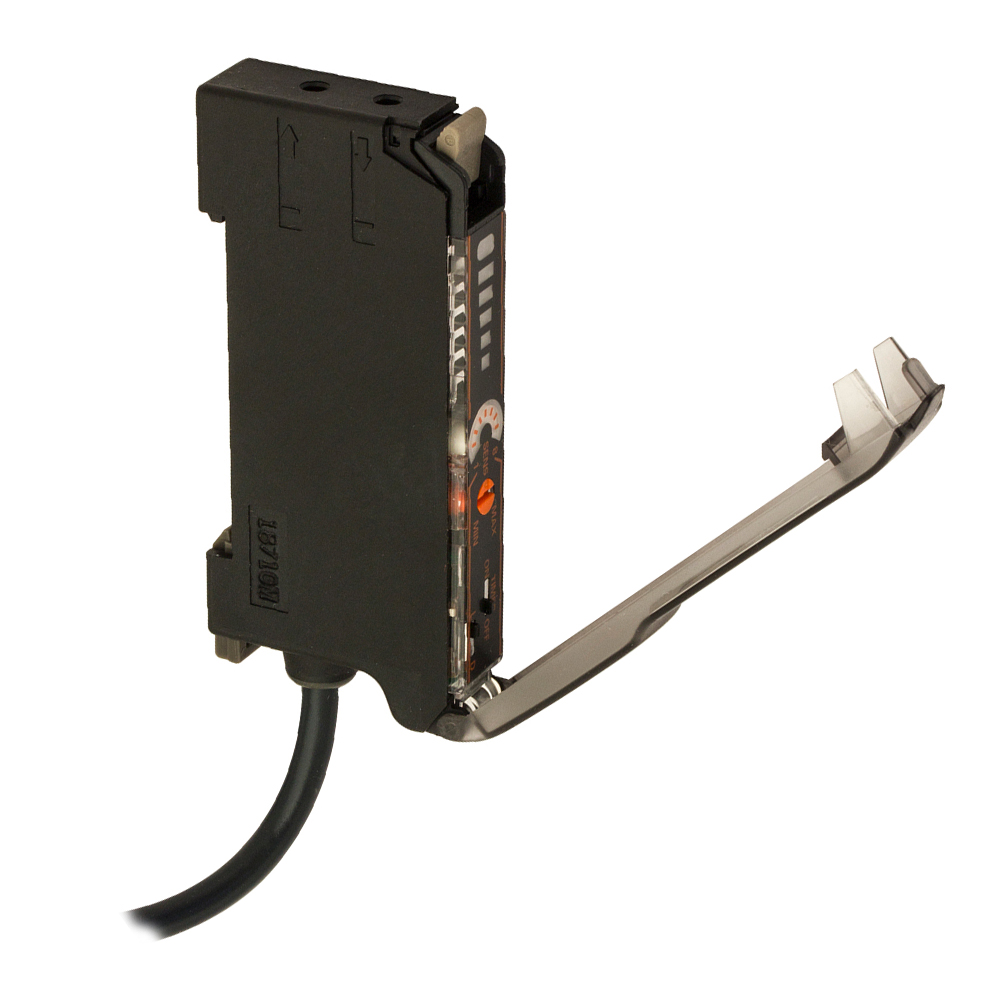

| Function Principle | Optic fiber amplifier |
| Optic position | Axial |

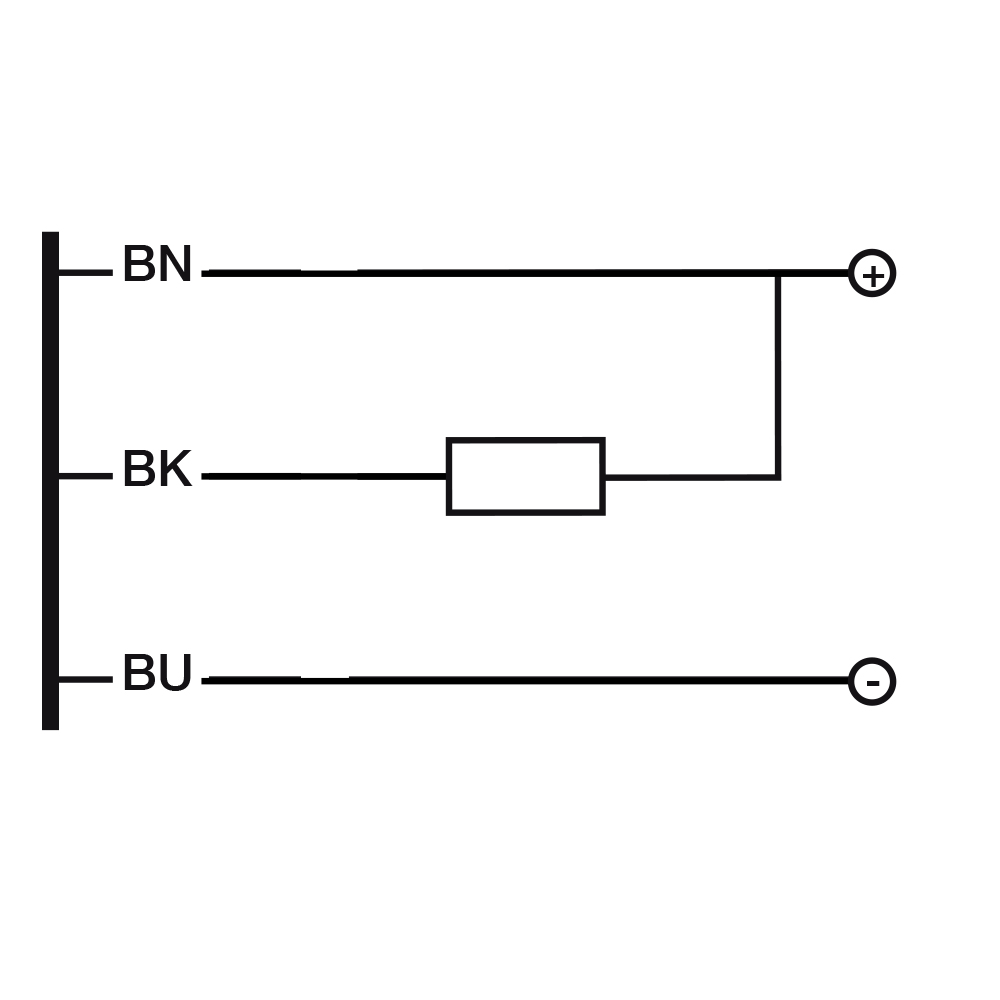

| Output type | PNP L/D Selectable |
| Output Function | L/D Selectable |
| Switching frequency | 2,5Khz |
| Response time | 200µs max |
| Operating Voltage | 12...24VDC |
| No-Load supply current | ≤ 35mA |
| Load current | ≤50mA |
| Leakage current | < 10 µA |
| Output voltage drop | ≤1V@Iload=100mA |
| Max ripple content | ≤10% |
| LED indicators | Orange (output active); green (n.4 - received signal level); red (no received signal) |
| Time delay before availability | ≤ 200 ms |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission | LED Red (680nm) |
| Interference to external light | 10.000lux (incandescent lamp), 20.000lux (sunlight) |

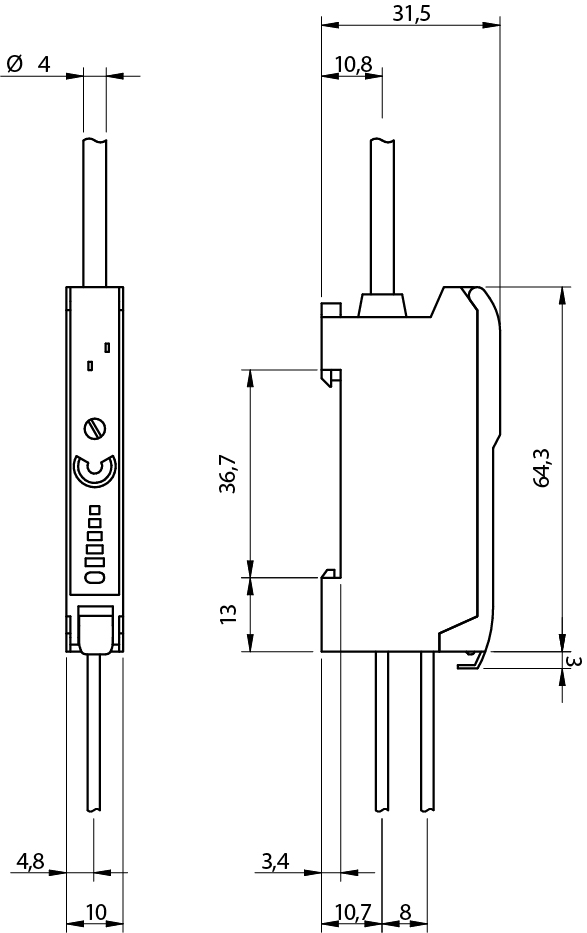

| Dimensions | 10x31.5x64.3 mm |
| Weight | 70 g (approx.) |
| Housing Material | PBT (housing); PC (cover) |
| Connections | 2m PVC cable |
| Operating temperature | - 25°C…+ 55°C (without freeze) |
| Storage temperature | - 30°C…+ 70°C (without freeze) |
| Diameter/Dimension | Cubic |
| Approvals | CE |
| EMC compatibility | EN 60947-5-2 |
| Degree of protection | IP67 |
| Supplied Accessories | DIN mounting bracket |
| Dimensions | 10x31.5x64.3 mm |
| Operating Temperature | - 25°C…+ 55°C (without freeze) |
| Mechanical Protection | IP50 |
