MDI63A/D

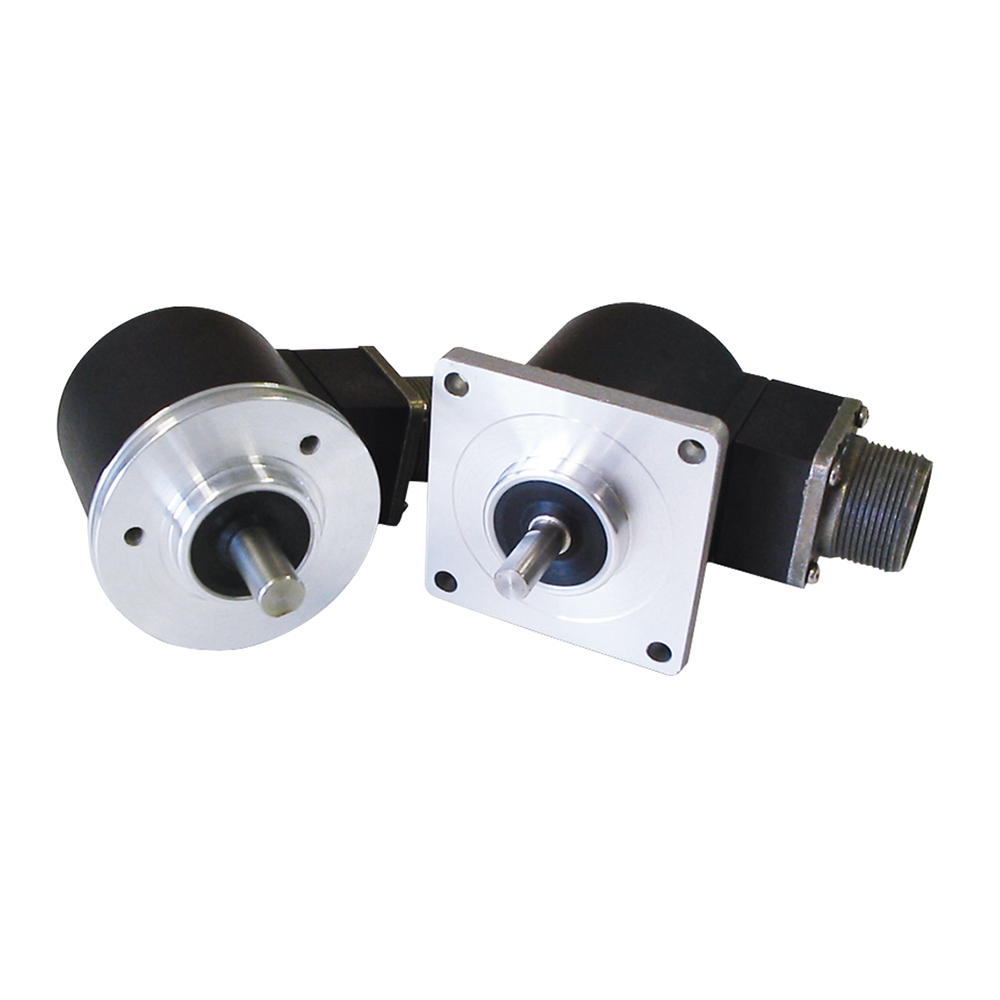

MDI 63 A / D

Incremental Encoder 63A/D, Solid shaft

Standard ø 63 mm encoder series for industrial applications with high mechanical resistance requirements

Overview

  • 3 channel encoder (A / B / Z) up to 2500 ppr
  • Power supply up to +30 VDC with several electronic outputs available
  • Up to 220 kHz output frequency
  • Cable or connector output
  • Solid shaft diameter up to 10 mm
  • Mounting by synchronous or centering 2,5” square flange

Technical Features

Detection properties
Resolution da 100 a 2500 ppr
counting direction A leads B clockwise (shaft view)
Application
max output frequency 220 kHz
Outputs
Output type push-pull / line driver
Electrical data
Operating Voltage 5/30 = 4,5 ... 30 V DC (reverse polarity protection)
No-Load supply current 800 mW
max load current 20 mA / channel
Mechanical data
Weight 350 g (12,35 oz)
Housing Material PA66 glass fiber reinforced
Operating temperature -25° ... +85°C (-13° ... +185°F)
Storage temperature -25° ... +70°C (-13° ... +158°F)
max shaft load 200 N
Shaft diameter ø 9,52 (3/8”) / 10 mm
max rotation speed 6000 rpm (IP54) 3000 rpm / 70° C - 2000 rpm / 85° C (IP66)
moment of inertia 1,5 x 10-6 kgm2
starting torque at 20°c < 0,02 Nm (IP 54) < 0,06 Nm (IP 66)
shaft material 1.4305 / AISI 303 stainless steel
bearings 2 ball bearings
bearings life 109 revolutions
Test/Approvals
EMC compatibility IEC 61000-6-2 IEC 61000-6-4
Shocks and vibrations 10 G, 10 ... 2000 Hz (IEC 60068-2-6)
Degree of protection X = IP 54 (IEC 60529) S = IP 66 (IEC 60529)
Generical Data
Operating Temperature -25° ... +85°C (-13° ... +185°F)
Mechanical Protection X = IP 54 (IEC 60529) S = IP 66 (IEC 60529)

Others

Dimensions
