SAFETY & GUIDANCE

safety light curtain

  • SAFETY LIGHT CURTAIN

    SH4 Advanced

    Advanced safety light curtain Type 4, for Applications that require: muting and/or blanking, use of corner mirrors, long distances between transmitter and receiver, quickest installation time, best in class alignment aid.

    • Safety Type 4 (Pl=e, SIL3)
    • Resolution Finger 14 mm; Hand 30mm; Body 2, 3, 4 beams
    • Zero dead zone on all finger/hand resolutiong models
    • Controlled heights from 300 to 2250 mm (n x 150 mm)
    • Operating distance: Finger 10 m; Hand 20 m; Body 70 m
    • Partial muting, fixed and floating Blanking, wireless diagnostic and programming
    GO TO

  • SAFETY LIGHT CURTAIN

    SH4 Base

    Base safety light curtain Type 4, cost effective solution for manual load assembly machines, where more advanced functions or manual restart are not requested.

    • Safety Type 4 (Pl=e, SIL3)
    • Resolution Finger 14 mm; Hand 30 mm; Body 2, 3, 4 beams
    • Zero dead zone on all finger/hand resolutiong models
    • Controlled heights from 300 to 2250 mm (n x 150 mm)
    • Operating distance: Finger 10 m; Hand 20 m; Body 70 m
    • Auto restart, alignment, test
    GO TO

  • SAFETY LIGHT CURTAIN

    SH4 Cascade

    Cascadable safety light curtain Type 4, for access and presence monitoring with daisy chaining configuration, extended length, or nonlinear geometry.

    • Safety Type 4 (Pl=e, SIL3)
    • Resolution Finger 14 mm; Hand 30mm; Body 2, 3, 4 beams
    • Zero dead zone on all finger/hand resolutiong models
    • Controlled heights from 300 to 2250 mm (n x 150 mm)
    • Operating distance: Finger 10 m; Hand 20 m; Body 70 m
    • It works only if connected to Standard Muting or Advanced model, and inherits its functionality
    GO TO

  • SAFETY LIGHT CURTAIN

    SH4 Standard

    Type4 safety light curtain, for machine access guarding where manual restart and EDM are requested. All resolution available, with extended temperature operating range, IP67 and increased resistance to shocks and vibrations.

    • Safety Type 4 (Pl=e, SIL3)
    • Resolution Finger 14 mm; Hand 30mm; Body 2, 3, 4 beams
    • Zero dead zone on all finger/hand resolution models
    • Controlled heights from 300 to 2250 mm (n x 150 mm)
    • Operating distance: Finger 10 m; Hand 20 m; Body 70 m
    • Auto/Manual restart, EDM
    GO TO

  • SAFETY LIGHT CURTAIN

    SG2 Base

    Type 2 Cost effectve finger and hand presence safety light curtain with basic functions. High reliability, easy installation and alignment for simple protection needs.

    • Safety Type 2 (Pl=c, SIL1)
    • Resolution Hand 30mm; Pres. 50/90 mm
    • Controlled heights from 150 to 1800 mm (n x 150 mm)
    • Operating distance: 19 m
    • Automatic restart; external test input
    • Easy and cost effective standard M12 5-pole connector
    GO TO

  • SAFETY LIGHT CURTAIN

    SG2 Extended

    Finger and hand presence safety detection with basic functions High reliability, easy installation and alignment, cost effective solution for simple protection needs.

    • Safety Type 2 (Pl=c, SIL1)
    • Resolution Hand 30mm; Pres. 50/90 mm
    • Controlled heights from 150 to 1800 mm (n x 150 mm)
    • Operating distance: 19 m
    • Manual/Automatic restart; EDM, external test input
    GO TO

  • SAFETY LIGHT CURTAIN

    SG2 Muting

    Type 2 finger and hand presence safety detection with zero dead zone and integrated muting, configurable with pushbuttons.

    • Safety Type 2 (Pl=c, SIL1)
    • Resolution: Finger 14 mm; Hand 30 mm
    • Controlled heights from 300 to 1800 mm (n x 150 mm)
    • Operating distance: Finger 7m; Hand 20 m
    • Compact; No dead zone
    • Functions available: Auto/Man restart, EDM, coding, Muting (T/L, total/partial, with/without timeout, etc.)
    GO TO

  • SAFETY LIGHT CURTAIN

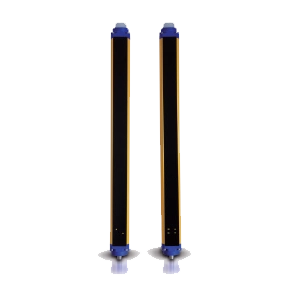

    SG4 Base

    Type 4 finger and hand resolution light curtain for access and presende detection in dangerous mahinery that require basic functions like manual restart and external device monitoring.

    • Safety Type 4 (Pl=e, SIL3)
    • Resolution Finger 14 mm; Hand 30 mm
    • Controlled heights from 150 to 1800 mm (n x 150 mm)
    • Operating distance: Finger 6 m; Hand 19 m
    • Auto restart or selectable Auto/Manual restart; EDM (depending on model)
    • Easy and cost effective standard M12 5-pole or 8-poles connectors (depending on model)
    GO TO

  • SAFETY LIGHT CURTAIN

    SG4 Extended

    Finger and hand safety detection with possibility of configuration of advanced functions through pushbuttons or Graphic User Interface. Extended flexibility that fits a diverse range of machine needs, combined with possibility of Ethernet connection for remote monitoring.

    • Programmable Safety Light Curtain Type 4 (Pl=e, SIL3)
    • Resolution: Finger 14 mm; Hand 30 mm
    • Controlled heights from 300 to 1800 mm (n x 150 mm)
    • Operating distance: Finger 7m; Hand 20 m
    • Compact; No dead zone; up to 3 cascadable units
    • Fully programmable: Auto/Man restart, EDM, coding, Muting (T/L, total/partial, with/without timeout, etc.)
    • Fixed/floating blanking; reduced resolution function
    • Ethernet Port, SG Dongle and Graphic User Interface
    GO TO

  • SAFETY LIGHT CURTAIN

    SG4 Fieldbus

    First safety light curtain with integrated openSAFETY over POWERLINK protocol. Complete diagnostic and monitoring available over the communication bus. Doesn't require programming: safety functions are managed in safety PLC using information sent by the light curtain.

    • Safety Type 4 (Pl=e, SIL3)
    • Resolution Finger 14 mm; Hand 30 mm, Body 2/3/4 beams
    • Controlled heights from 150 to 1800 mm (n x 150 mm)
    • Operating distance: Finger 6 m; Hand/Body 19 m
    • Two M12 connectors on receiver side for POWERLINK connection
    • - Basic models: ON/OFF status of the whole light curtain
    • - Advanced models: ON/OFF status of each single beam
    GO TO

  • SAFETY LIGHT CURTAIN

    SG BODY REFLECTOR BASE / MUTING

    Sturdy safety light curtain for body protection based on reflection of beams and with only one active side. High reliability, easy installation and alignment, cost effectiveness, all features needed for muting in palletizing.

    • 52 x 57 mm robust profile
    • 2, 3 or 4 beams for Body protection and access control
    • Controlled heights of 500, 800, 900, 1200 mm
    • Operating distance up to 8 m (depending on model)
    • Dip-switch configuration of Auto/Man, EDM, Muting
    • Muting version with L or T integrated arms
    • Active side and Passive sides sold separatedly
    GO TO

  • SAFETY LIGHT CURTAIN

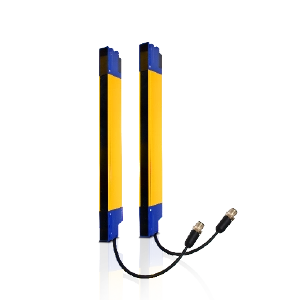

    SLIM

    Ultra-compact safety light curtain with finger and hand resolution for applications where space saving and mechanical flexibility is a must. Cascadable up to three units.

    • Safety Type 2 (Pl=c, SIL1)
    • Safety Type 4 (Pl=e, SIL3)"
    • Resolution: 14/24/34 mm
    • Protected height: 150, 210, 270 … 1200 mm (with 30 mm steps)
    • Operating distance: 0.2 …6 m
    • Outputs: 2 PNP; Output current: 0.3 A max / each output
    • Functions: Auto/Manual restart, External Device Monitoring (EDM)
    GO TO

  • SAFETY LIGHT CURTAIN

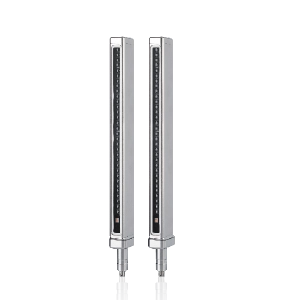

    SG4-H

    The first safety light curtain with stainless steel housing and glass dedicated to Pharma Industry, where strong hygienic requirements need frequent cleanings with highly corrosive detergents.

    • Safety Type 4 (Pl=e, SIL3)
    • Resolution: 14 mm
    • Protected height: 150/300/450 mm
    • Operating distance: 0.2 …6 m
    • Outputs: 2 PNP; Output current: 0.5 A max/each output
    • Mechanical protection: IP69K
    • Restart: Automatic
    GO TO
