SAFETY & GUIDANCE

navigation lidar

  • LIDAR

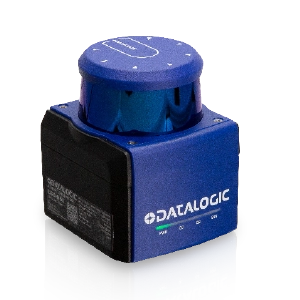

    Lidar Guidance Scanner

    Lidar Guidance Scanner is a compact, rugged navigation Lidar based on time-of-flight (TOF) infrared laser technology for the market of Automated and Laser Guided Vehicles or Forklifts, used for intralogistics and manufacturing.

    • ToF technology on infrared laser
    • 2D Measurement data for natural or marker navigation
    • 360° measurement for all-round scanning
    • Differentiation between natural objects and reflectors
    • Scanning rate 10/15/20/25 Hz
    • Measurement rate 60000 points/s
    • Measurement range: 0.2 - 2 m with 1.8% reflectivity / 0.2 - 15 m with 10% reflectivity / 0.2 - 50 m with 80% reflectivity
    • Dimensions (w,d,h): 95 x 97 x 116 mm
    • Communication interface: IEEE 802.3u 100 Mbps Ethernet
    • Configuration software: Any web browser (configuration through web server)
