FC3

FC3/A

Photo.Fork,MOSFET-LO/DO,M12 plug,Edge detect

Dual beams photoelectrics slot sensor for sensor edge detection

  • Dual beams photoelectric slot sensor
  • RIAC output

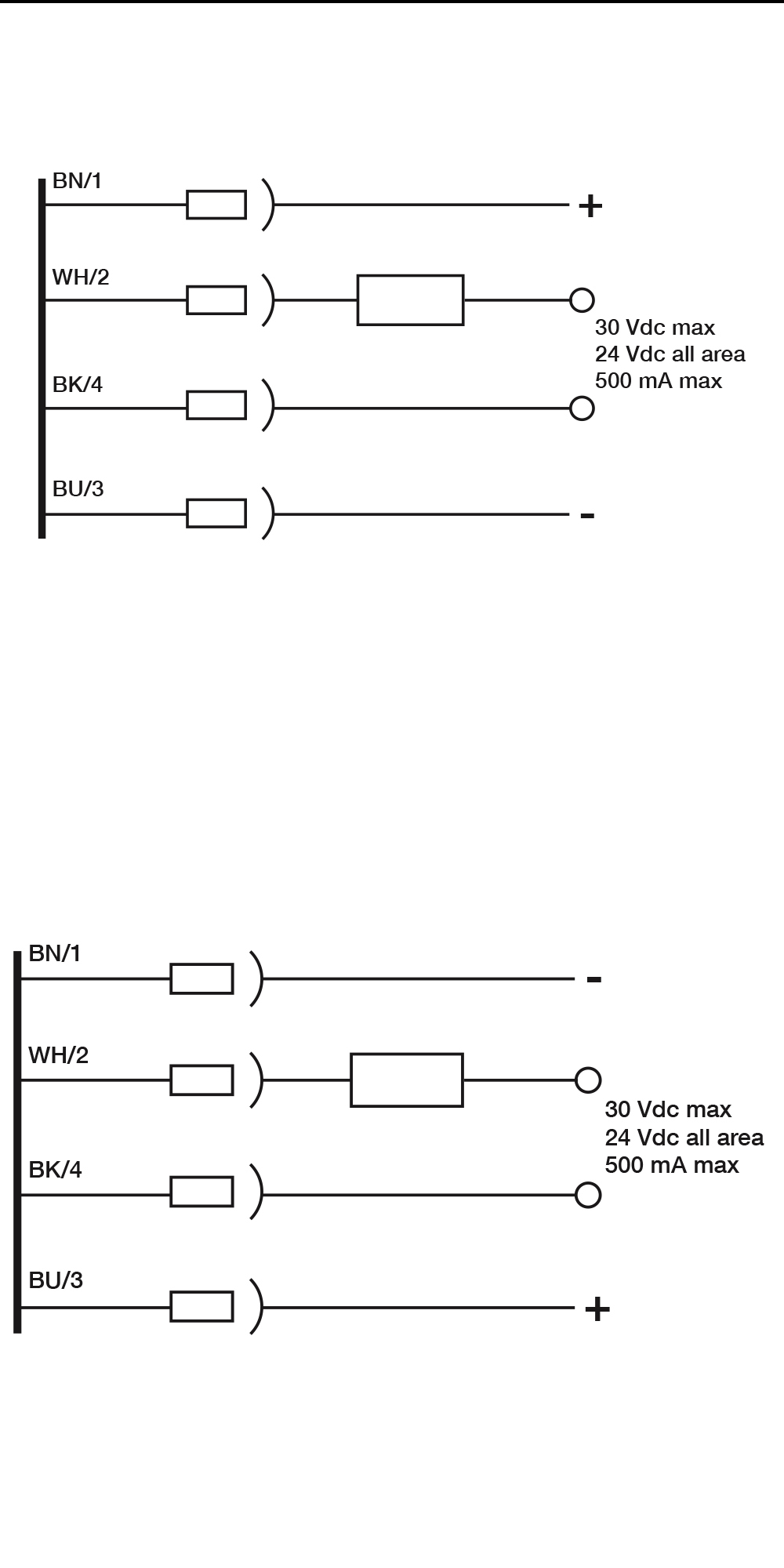

  • Light on/Dark on selectable by polarity inversion
  • Approvals: CE

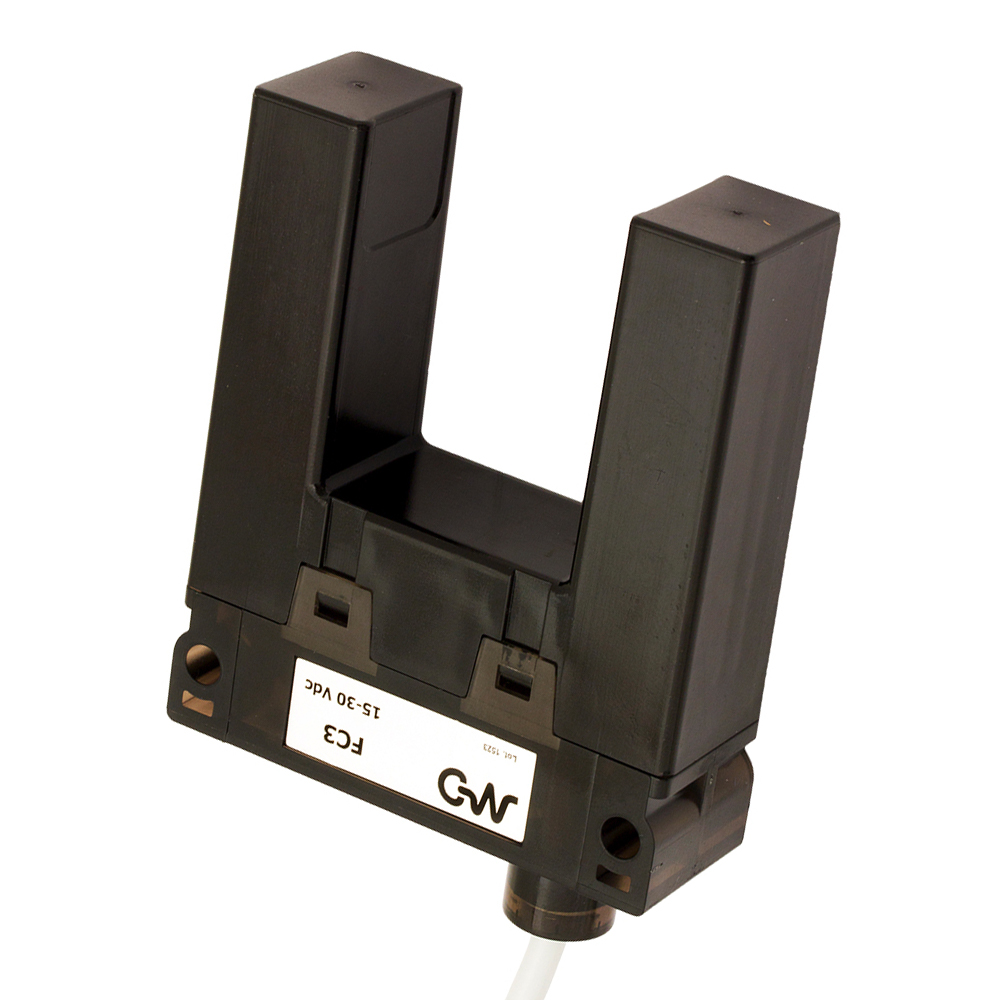

Indicative image

Technical features

Detection properties

Beams space 6,8mm
Optics diameter 3mm

Outputs

Output type MOSFET
Output Function LO/DO
Switching frequency 25Hz

Electrical data

Operating Voltage 10...30Vdc
No-Load supply current ≤ 30mA
Load current ≤ 500mA (V=30Vdc/24Vac))
Leakage current ≤ 250µA (V=30V max))
Output voltage drop ≤ 1,2V @ Iload=500mA
Max ripple content < 10%
LED indicators green (supply) red (output)
Emission infrared
Inrush current 5A (T=10µs)
Blocking voltage / Operating voltage ± 40/30Vdc - 30Vac eff.

Mechanical data

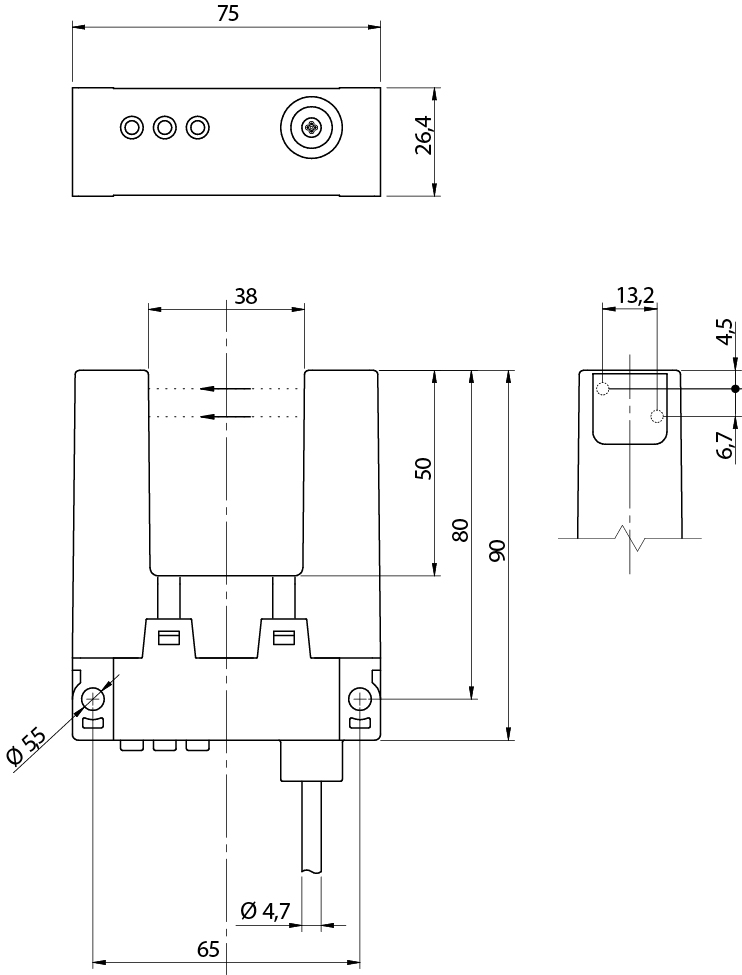

Dimensions 26,4 x 75 x 90 mm
Weight 122g
Housing Material PCB
Connections Pigtail

Test/Approvals

Approvals CE
Degree of protection IP64

Generical Data

Dimensions 26,4 x 75 x 90 mm
Mechanical Protection IP64
