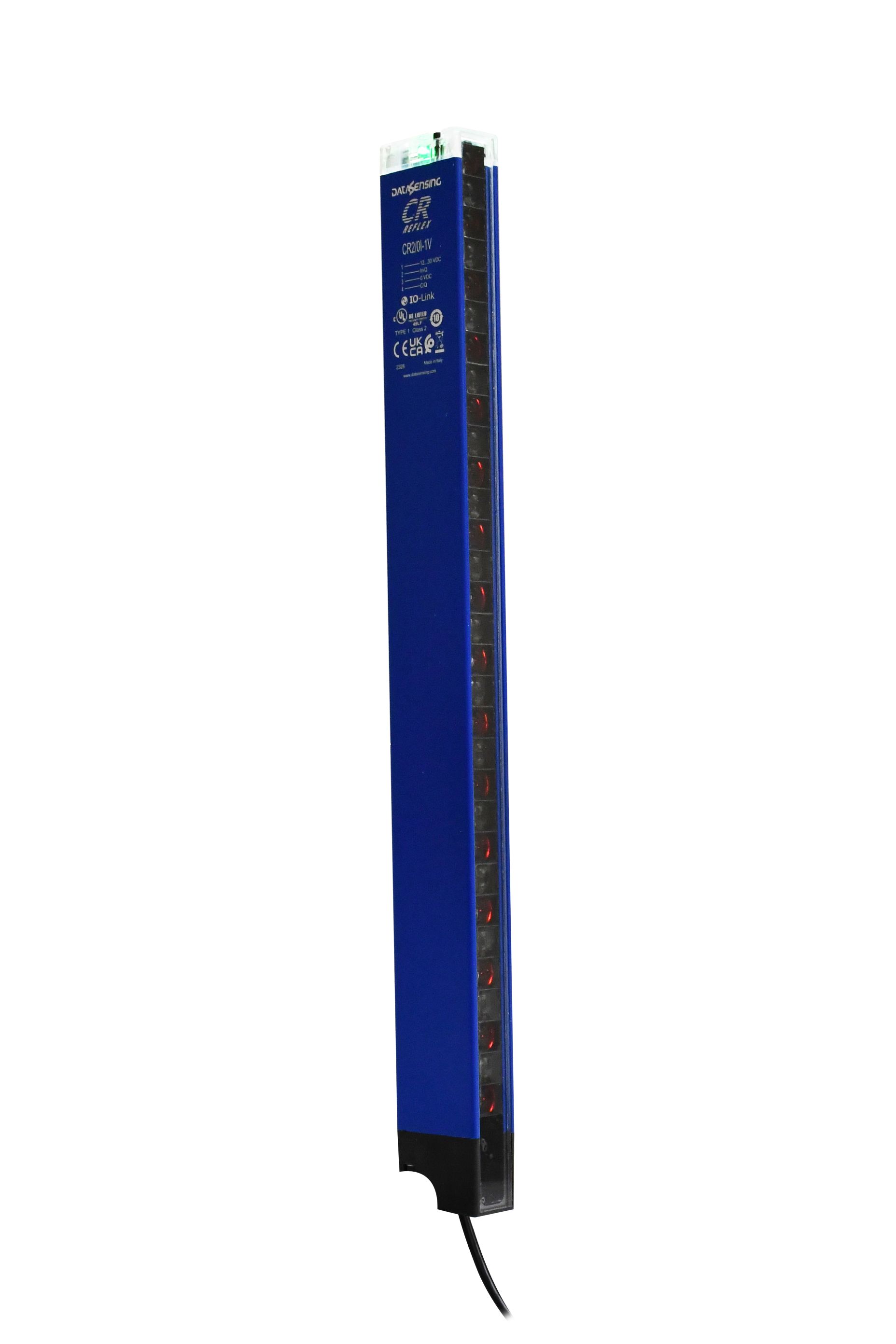

Area Sen, H=309mm-10mm pitch,Reflex

Retroreflective Polarized Area sensors

  • Area height controlled 309 mm
  • Maximum orwearive distance up 4,5m
  • Two teach-in types: fine and standard
  • Optical pitch 10mm
  • Protection degree IP67
  • Blanking function


Technical features

Detection properties

Nominal sensing distance 0,2 … 4,5m (with RL136)
Thermal drift of Sr ≤10%
Beams space 10mm
controlled height 309mm
minimum detectable object Ø 3…10mm @ 2m RL136 - Ø 3…20mm @ 4,5m RL136
number of rays 30 ( 16 emitters, 15 receivers)
Sensitivity adjustment Teach in: fine < 3s; standard > 6s


Function Principle Retroreflective polarized area sensor


Output type NPN + PNP
Output Function NO/NC
Switching frequency 190Hz

Electrical data

Operating Voltage 12...30VDC
No-Load supply current 150mA
Load current 160mA
Leakage current ≤1μA
Output voltage drop 1,6Vdc @ 100mA
Max ripple content ≤ 10%
LED indicators green: power supply-alignment; red: dark/light status
Time delay before availability < 1s
Short-circuit protection Yes (autoreset)
Reverse Polarity Protection Yes
Emission Red (617nm)
Interference to external light 5000lux (fluorescent lamp); 50000lux (sunlight)
Impulsive Overvoltage Protection Yes

Mechanical data

Weight 310g
Housing Material Aluminim

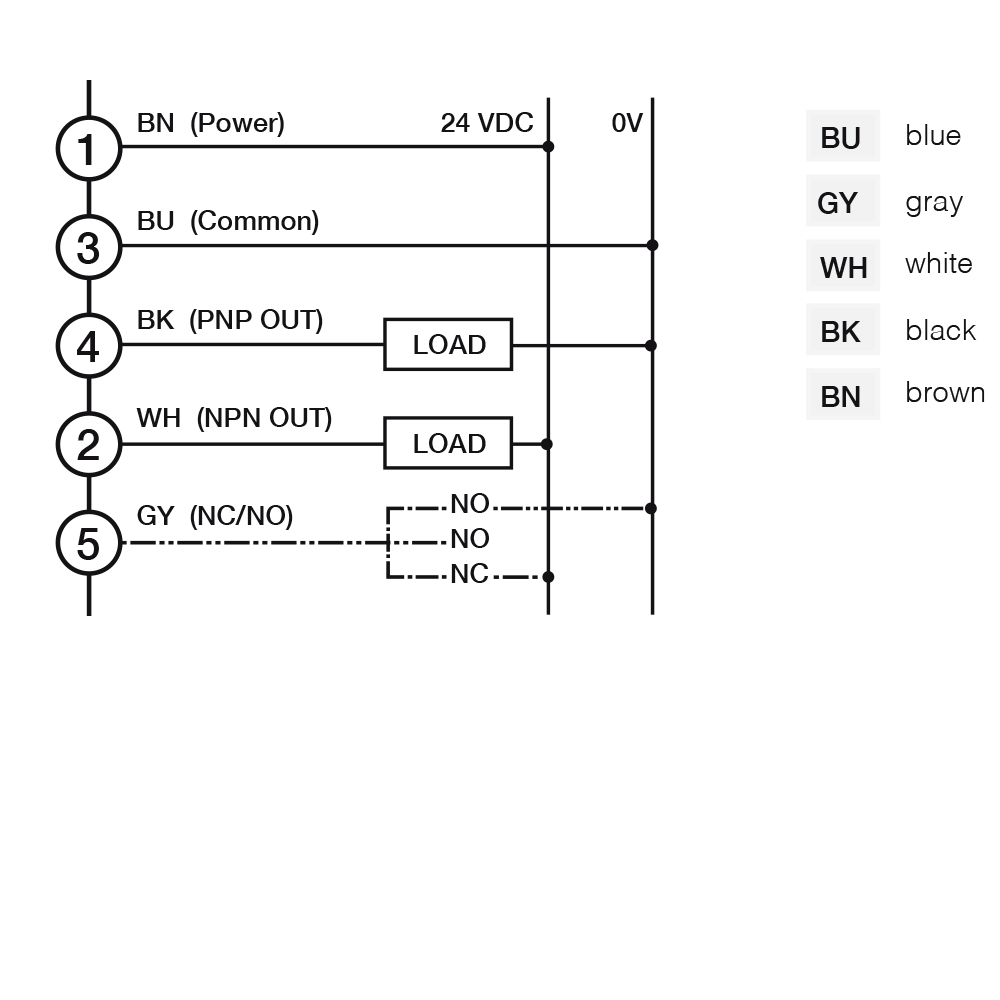

Connections M12 5pin + cable PVC 200mm
Active Head Material PMMA


Approvals CE, cULus,UKCA
EMC compatibility EN 60947-5-2
Shocks and vibrations IEC EN 60947-5-2 / 7.4


Supplied Accessories Q.ty 2 RL136 reflector + fixing kit (ST151)

Generical Data

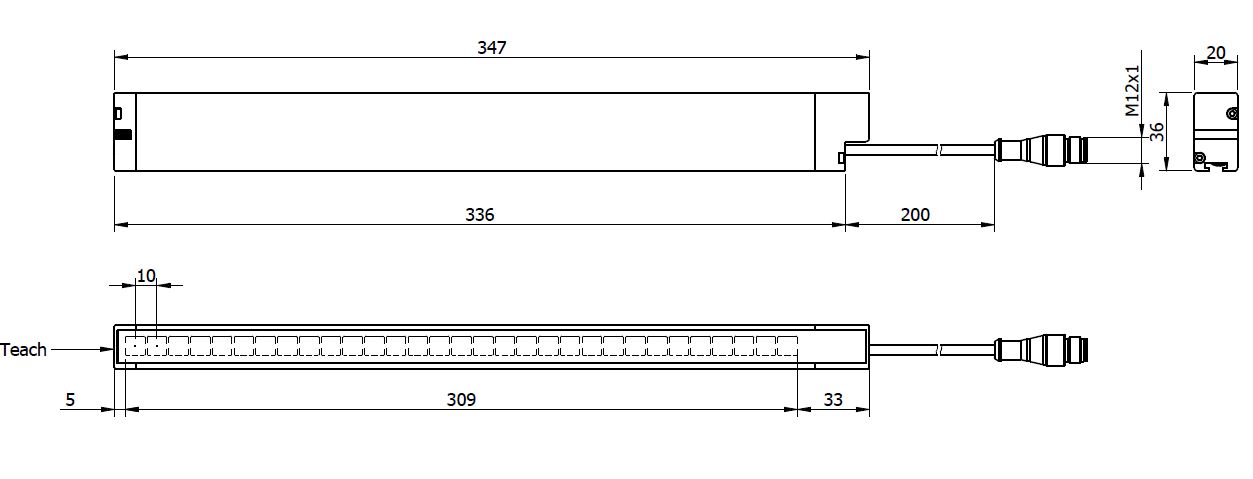

Dimensions 347x20x36
Operating Temperature -10°C…+ 55° C (without freeze)
Mechanical Protection IP67
