Technical features

Electrical data

Nominal current 4 A
Led no

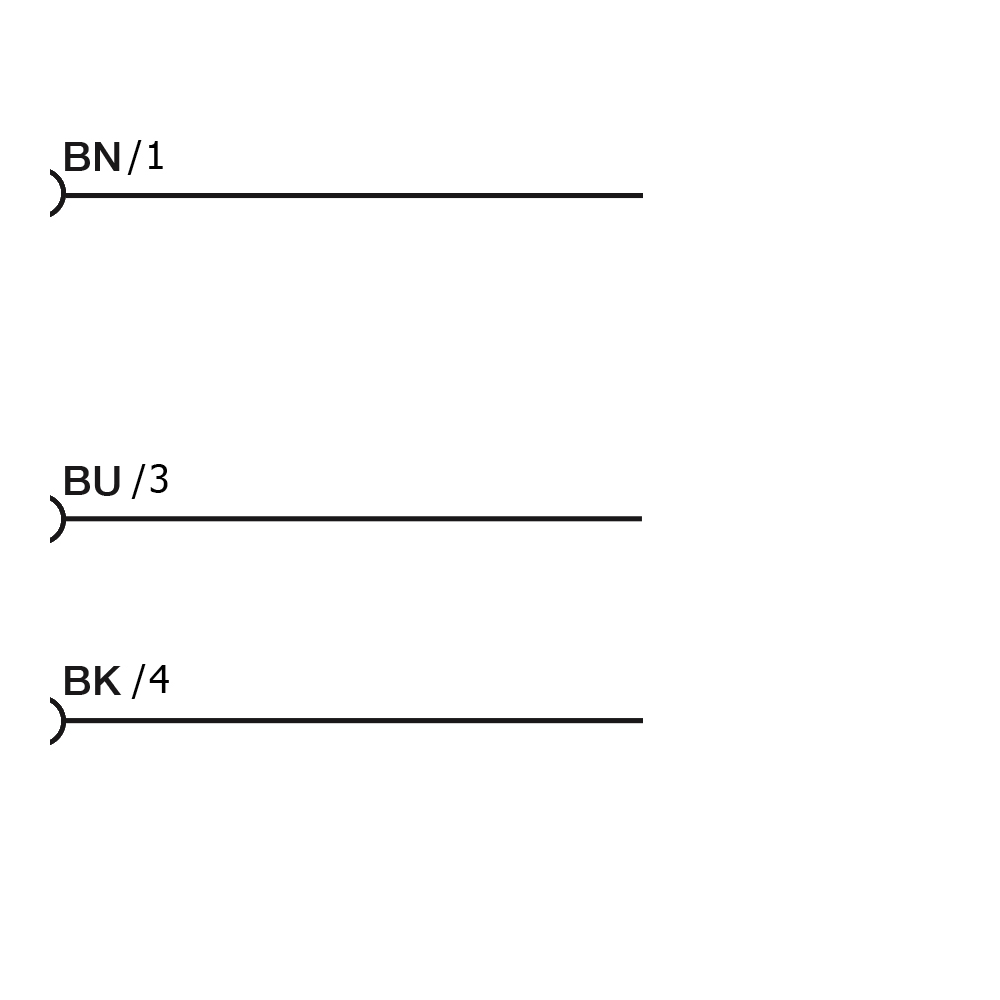

Wires 3
Rated impulse voltage 0,8 kV
Nominal voltage Max. 60 V ac/dc

Mechanical data

Connections With open ended wires
Tightening torque 0,4 Nm
Operating temperature -10°C...+80°C (flexible installation) -25°C...+80°C (fixed installation)
Fibre lengh (m) 10

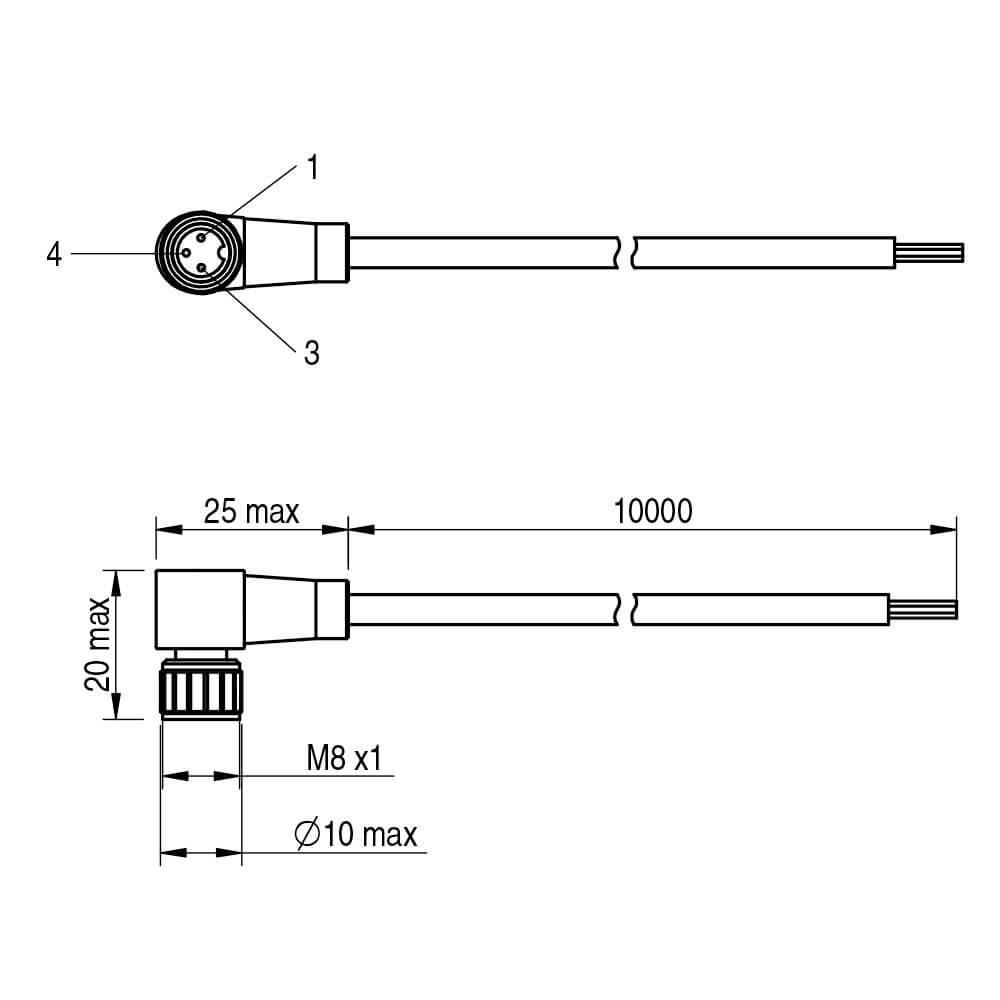

Head type 90°
Plug M8
Outer diameter Ø 4,5 mm ± 5%
Jacket material PVC
Wire isolation PVC
Conductors section 0,25 mm2 (32 x 0,10 mm2)
Model Femmina

Test/Approvals

Degree of protection IP67

Generical Data

Operating Temperature -10°C...+80°C (flexible installation) -25°C...+80°C (fixed installation)
Mechanical Protection IP67
