Machine vision

smart camera

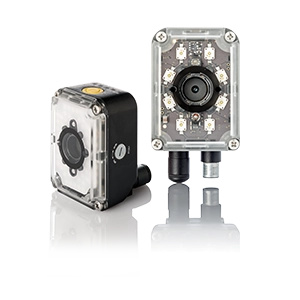

  • Smart-Camera

    P1x

    Ultra-compact cost effective smart camera offering advanced vision system functionalities in a fully embedded standalone device. The P1x Series is available with monochrome or color image sensors in two different resolutions: VGA and 1.3 MP.

    • Imagers: VGA and 1.3 MP, CMOS mono or color
    • Lens options: 6, 9, 12, 16, 25mm focal lengths
    • Illuminators: Red, Blue, Infrared, White (polarized versions available)
    • Digital I/Os: 2 IN / 3 OUT
    • Connectivity: PROFINET, EtherNet/IP, ModBus, RS232, Ethernet TCP/IP
    • Rotating connectors for straight vs 90° mounting
    • IP67 rated housing
    • Configuration through IMPACT Software
    GO TO

  • SMART CAMERA

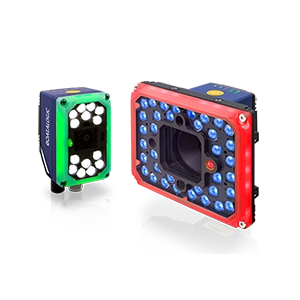

    P2x

    Industrial smart camera providing exceptional inspection performance in a compact housing. State-of-the-art CMOS imagers with resolutions up to 2 MP deliver maximum image quality.

    • Imagers: WVGA and 2MP, CMOS mono or color
    • Lens options: Micro-video (6, 8, 12.5 and 17.5mm) or C-Mount
    • Illuminators: Red, Blue, Infrared, White (polarized versions available)
    • Digital I/Os: 2 IN / 3 OUT
    • Connectivity: PROFINET, EtherNet/IP, ModBus, RS232, Ethernet TCP/IP
    • Rotating connectors for straight vs 90° mounting
    • IP67 rated housing
    • Configuration through IMPACT Software including advanced algorithms
    GO TO

  • P3x

    Smart Camera, P35, Monochrome, 2560x1920, 26 FPS, 1/1.8" CMOS, C-Mount Lens

    • qHD (960 x 540) , 2MP (1920 x 1080) and 5MP (2560x1920) resolution imager options both available in monochrome and color
    • Field interchangeable lenses, illuminators and filters
    • Two embedded illuminator sizes: 14-LED compact and 36-LED high power both integrating TIR lenses to deliver maximum brightness onto the field of view available in 3 different colors (white, blue and red)
    • Lens options: Micro-video (6, 8, 12.5 and 17.5mm) or C-Mount
    • Innovative 360° software configurable visual feedback
    • Top industrial grade: -10 to 50 °C / 14 to 122 °F operating temperature, IP65/67 rating
    • Powered by IMPACT software suite with 100+ inspection tools
    • Add-on licenses to run even the most advanced Datalogic algorithms
    GO TO
