SAFETY & GUIDANCE

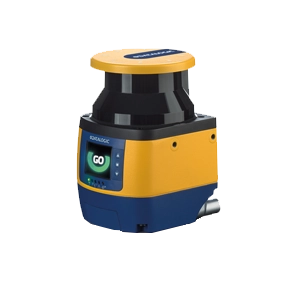

safety laser scanner

  • Enhanced Laser Sentinel

    LASER SENTINEL is the innovative solution for safe area protection in a large variety of applications in automation and intralogistic industries. It offers a complete and flexible solution for the safeguard of robotic cells, automated guided vehicles and general machinery.

    • Type 3 / PL d / SIL 2
    • Max. distance: up to 5.5 m (safe) for 70 mm resolution
    • Opening angle: 275°
    • Minimum response time: 62 ms
    • STANDALONE version: - pigtail with M12 connector - up to 6 switchable zone sets
    • MASTER-SLAVE version: - M12 connector - rotating connectors for programming and connection to slaves- safe communication between up to 4 scanners - up to 70 switchable zone sets
    • Programming, monitoring and measurement data: Ethernet
    • Dimensions (w,d,h): 102 , 112.5 , 152 mm
    • Auto/manual restart, EDM, partial dynamic muting, override, speed measurement, shut off
    • Fast replacement
