UK1

UK1A/GP-0ESY

Ultra.M18,PNP-NO/NC,M12 plug,Diffuse

M18 cylindrical direct diffuse & retro-reflective Ultrasonic Sensor UK1 with Teach-In button

  • Models with digital programmable output
  • Models with current or voltage analogue outputs
  • Adjustable Hysteresis function: model with programmable double digital outputs, specific for levels
  • Working area adjusting (window teach or single point teach) by Teach-in button suitable for all models for a fast coming into work
  • Multifunction LED indicator: output type, adjustment procedure, NO/NC selection and reverse analog output slope

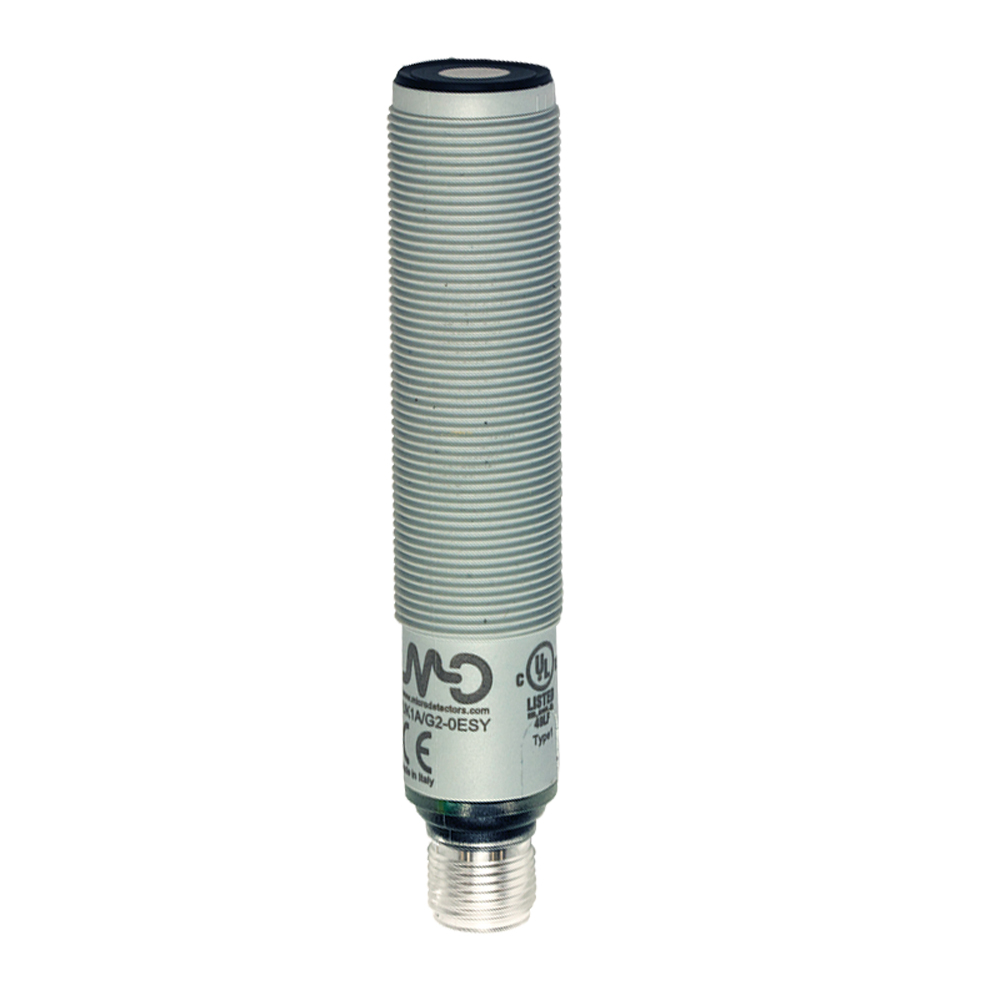

Indicative image

Technical features

Detection properties

Nominal sensing distance 400mm
Thermal drift of Sr ±2%
Repeat Accuracy 0,50%
Beam angle 10° ± 2°
Resolution ≤3mm
Sensitivity adjustment Teach-in button
Hysteresis 1%
thermal compensation Yes
Minimum sensing distance (blind zone) 50mm
Linearity error 1%

Application

Function Principle Diffuse reflection

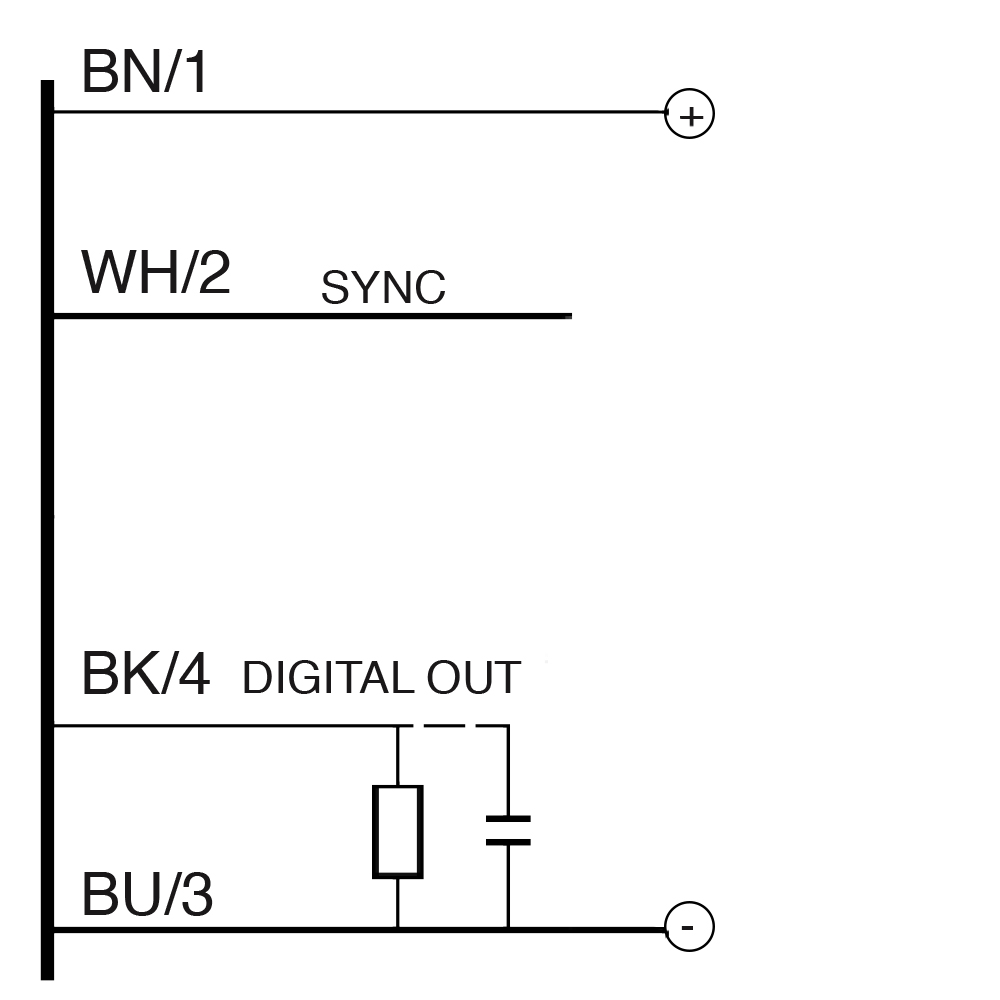

Outputs

Output type PNP
Output Function NO/NC
Switching frequency 10Hz
Response time 500ms

Electrical data

Operating Voltage 10 - 30Vdc
No-Load supply current ≤50mA
Load current 100mA
Leakage current 10μA @ 30Vcc
Output voltage drop 2,2Vmax. @ IL=100 mA
Max ripple content 5%
LED indicators green: echo - yellow: output
Time delay before availability ≤300ms
Short-circuit protection Yes
Reverse Polarity Protection Yes
Impulsive Overvoltage Protection Yes

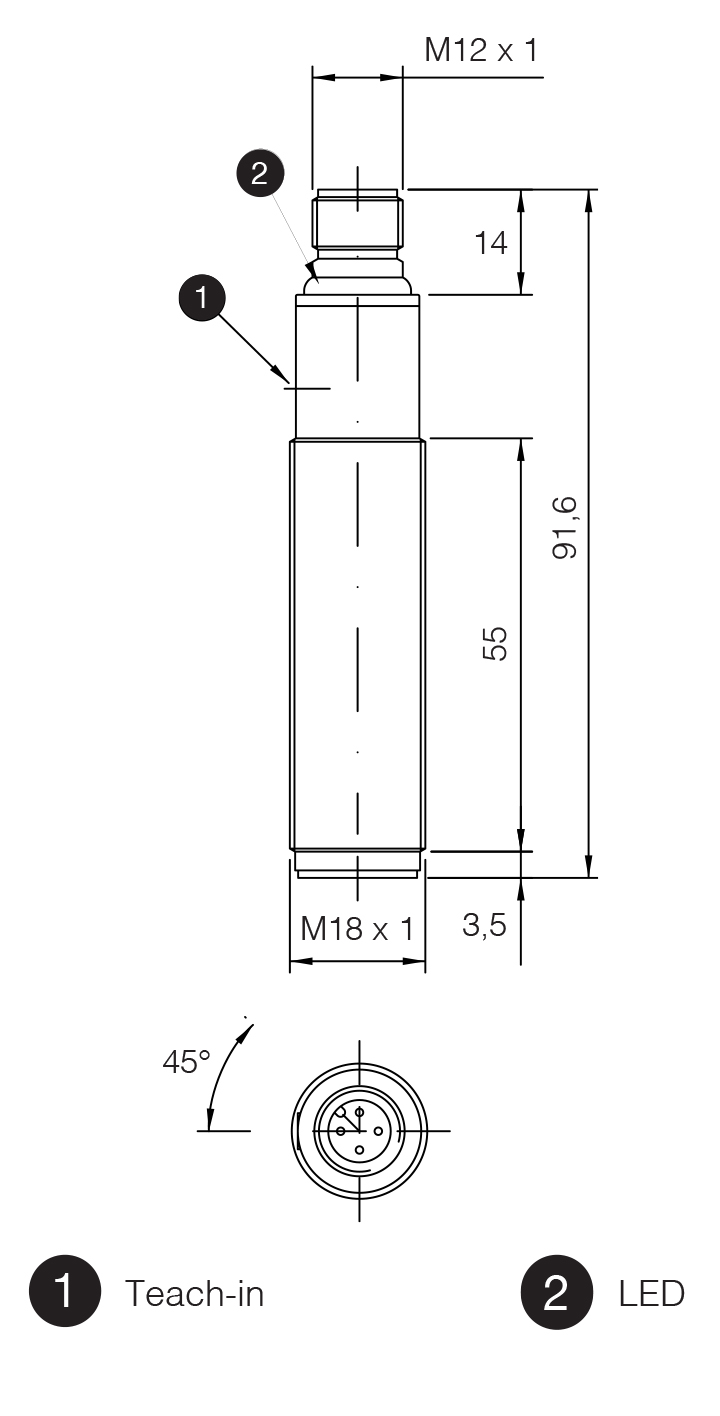

Mechanical data

Dimensions M18 x 1 / L = 91,6mm
Weight 70g
Housing Material PBT housing
Connections M12 Plug
Tightening torque 1Nm
Operating temperature - 20°C…+ 70°C
Storage temperature - 35°C…+ 80° C without freeze
Transducer Frequency 300kHz
Diameter/Dimension M18

Test/Approvals

Approvals CE cULus
EMC compatibility IEC 60947-5-2
Shocks and vibrations IEC EN60947-5-2 / 7.4
Degree of protection IP67

Accessories

Supplied Accessories 2 nuts M18x1, 2 washers Ø 18

Generical Data

Dimensions M18 x 1 / L = 91,6mm
Operating Temperature - 20°C…+ 70°C
Mechanical Protection IP67
