PMS-PKS/PMW-PKW

PKS/0N-1H

Ind.M18,NPN-NO+NC,M12 plug,Sch-STD

M12 & M18 IP67/68 cylindrical for harsh environments - DC

  • Innovative housing (double enclosure)
  • Cutting oils resistant (for machines tool)
  • Immersion proof (sealing IP 67/68)
  • High frequency switching

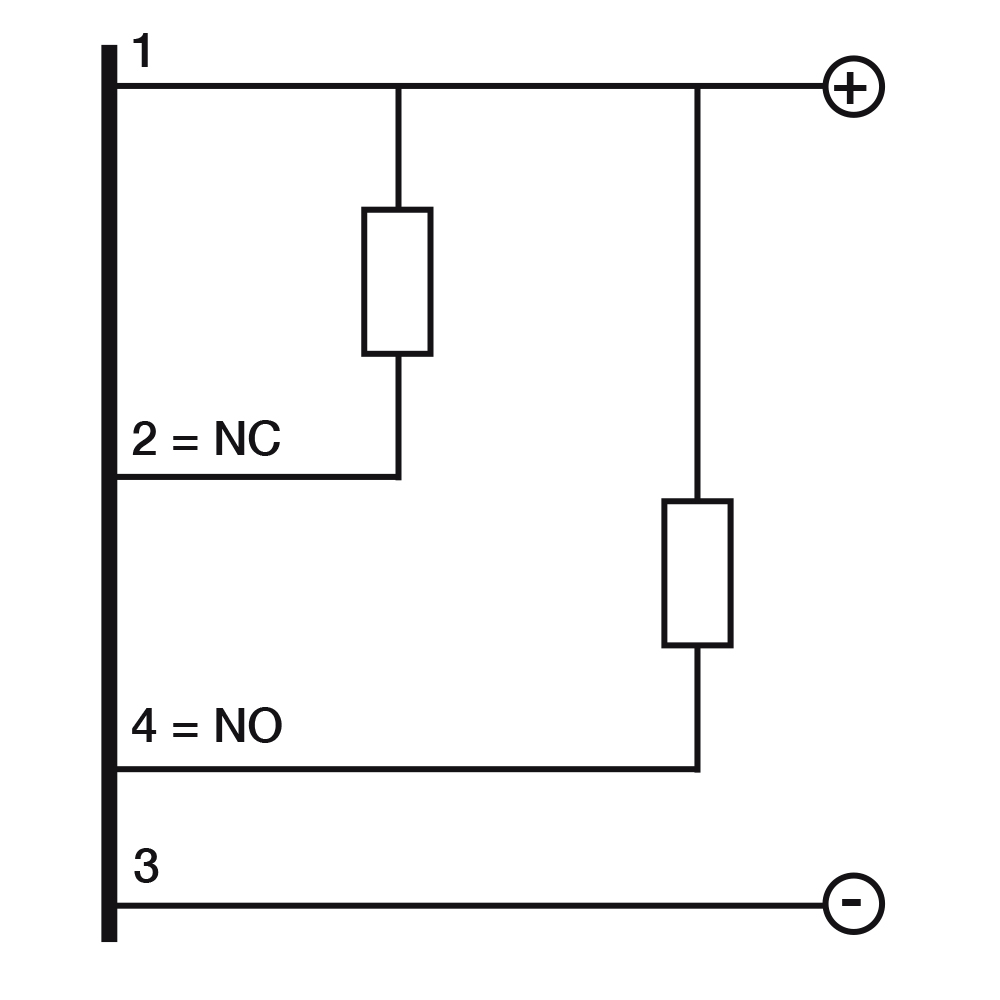

  • Complementary output (NO+NC), M12 plug cable exit
  • ATEX models, cat. 3, available on request
  • LED indicator visible at wide angle
  • Complete protection against electrical damages

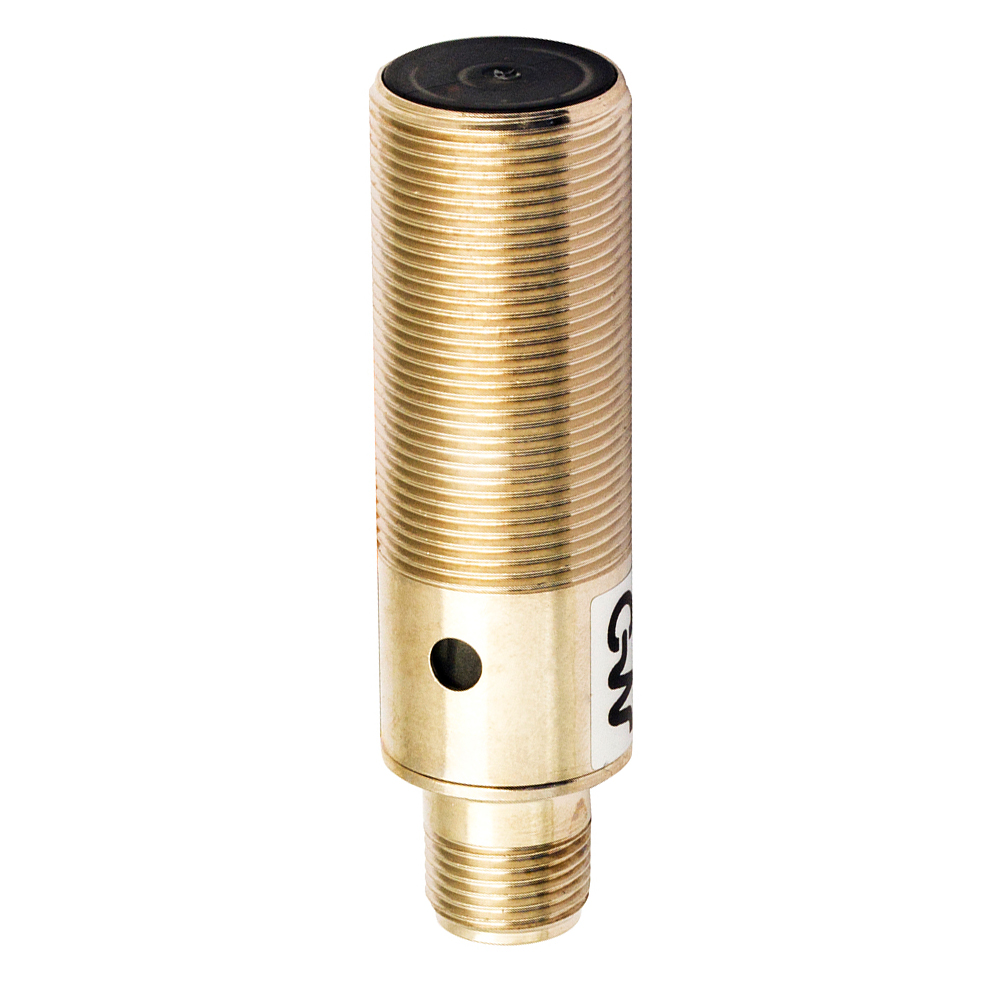

Indicative image

Technical features

Detection properties

Nominal sensing distance 5mm
Operanting distance 0…4,05mm
Standard target 18x18mm FE360
Correction Factor copper: 0,3 / aluminium: 0,35 / brass: 0,65 / stainless steel: 0,76
Thermal drift of Sr < 10%
Repeat Accuracy < 5% (UB 24V Ta=23°C ±5°C)
Hysteresis 1 … 20%

Application

Description M18 standard flush mount
Functions Proximity

Outputs

Output type NPN
Output Function NO + NC
Switching frequency 1,5kHz

Electrical data

Operating Voltage 10...30Vdc
No-Load supply current ≤ 15mA
Load current ≤ 400mA
Leakage current ≤ 10μA
Output voltage drop ≤ 2V @200mA
Max ripple content ≤ 10%
LED indicators Yellow LED output state
Time delay before availability ≤ 50ms
Short-circuit protection Yes
Reverse Polarity Protection Yes
Impulsive Overvoltage Protection Yes

Mechanical data

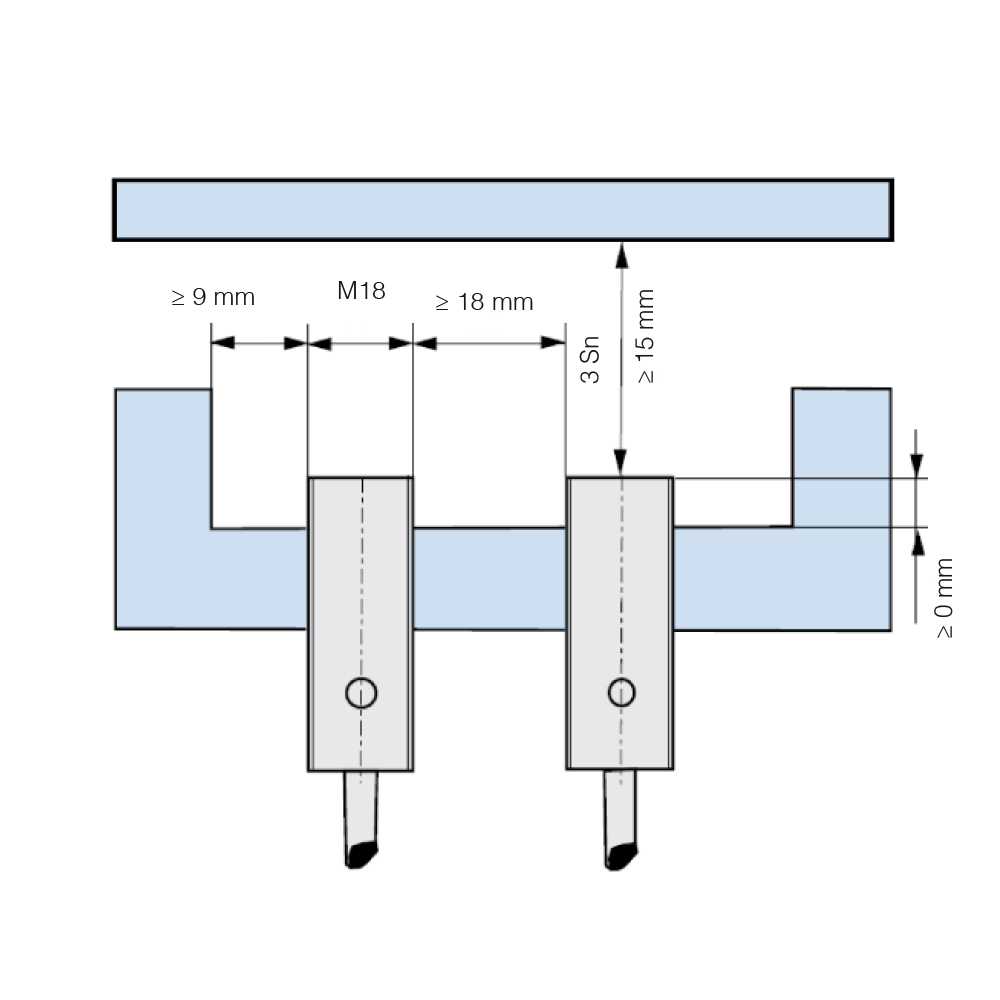

Mounting Shielded
Dimensions M18 x 1 / L =62,8mm
Weight 50g
Housing Material Nickel-plated brass
Connections M12 Plug
Active Head Material PSU
Tightening torque 50Nm
Operating temperature -25°C…+70°C
Material Nickel-plated brass
Diameter/Dimension M18

Test/Approvals

Approvals CE
EMC compatibility IEC 60947-5-2
Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protection IP67, IP68

Accessories

Supplied Accessories 2 nuts M18x1

Generical Data

Dimensions M18 x 1 / L =62,8mm
Operating Temperature -25°C…+70°C
Mechanical Protection IP67
