MV-MQ

MV6/A0-0E

Photo.M18,AC-NO,M12 plug,Diffuse

M18 AC multivoltage output photoelectric sensors

  • Wide range of models: diffuse, retro-reflective, polarized, through-beam
  • Through-beam models with high sensing range
  • Retro-reflective models with polarized light (with visible beam)
  • M12 plug cable exit in axial or right angle shape
  • Low leakage current and high output current
  • IP67 protection degree
  • Complete protection against electrical damage




Indicative image

Technical features

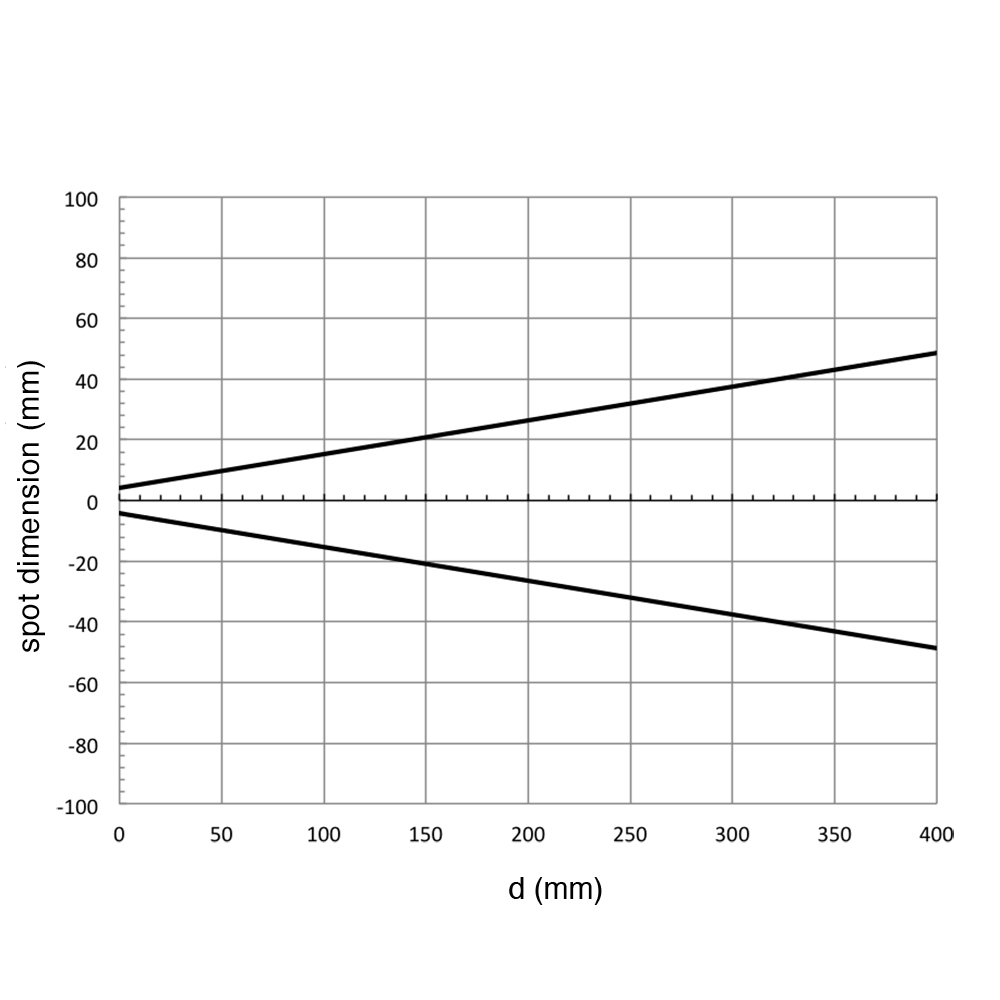

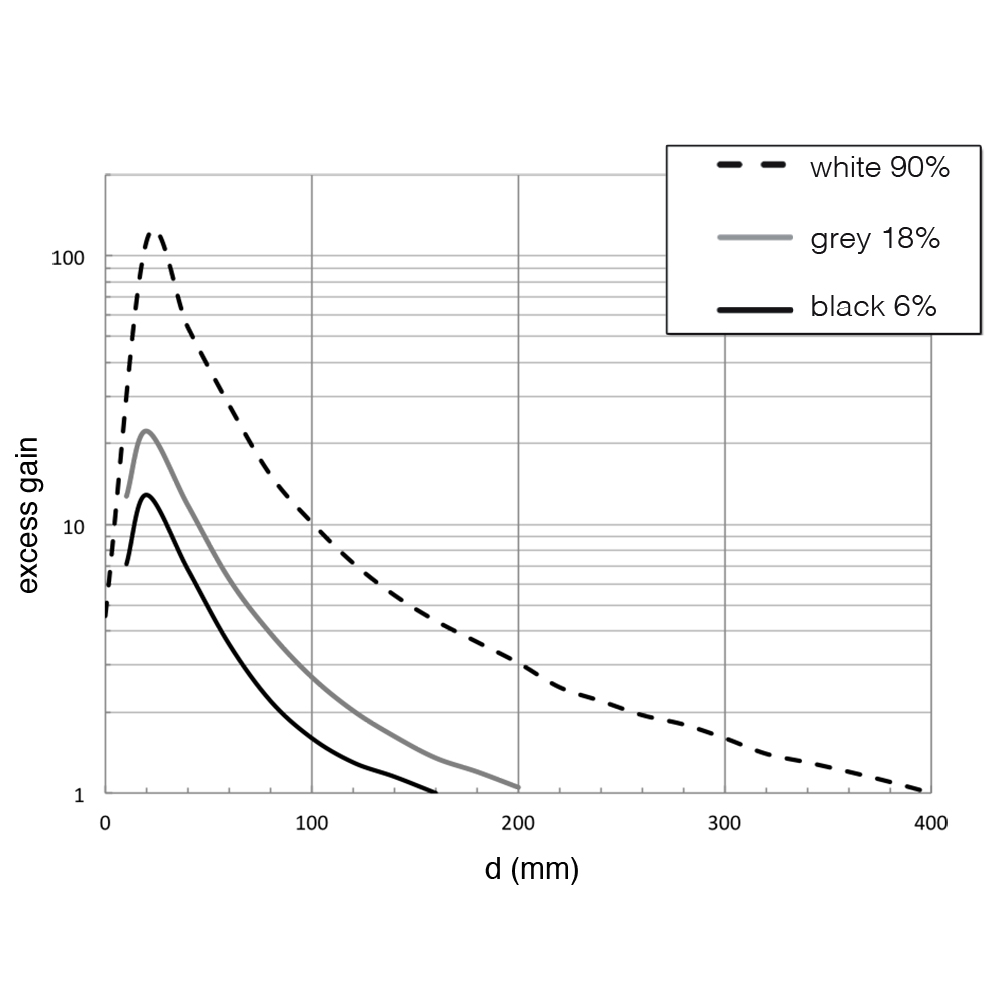

Detection properties

Nominal sensing distance 400mm
Thermal drift of Sr ≤10%Sr
Repeat Accuracy 5%
Sensitivity adjustment No

Application

Function Principle Diffuse reflection (medium distance, ≤600mm)
Notes white target Kodak 90% 200 x 200mm
Optic position Axial

Outputs

Output type TRIAC NO
Output Function NO
Switching frequency 25Hz
Response time 20ms

Electrical data

Operating Voltage 20...253VAC/50-60Hz
No-Load supply current ≤ 30mARMS
Load current 5…300mARMS
Leakage current 6A
Output voltage drop ≤3V@Iload=300mARMS
Max ripple content ≤10%
LED indicators Red (status output)
Time delay before availability ≤200ms
Emission LED Infrared (880nm)
Interference to external light 3.000lux (incandescent lamp), 10.000lux (sunlight)

Mechanical data

Dimensions M18x1/L=78,9mm
Weight 30g
Housing Material PBT / PC plug
Connections M12 plug
Active Head Material PMMA
Tightening torque 1Nm
Operating temperature - 25°C…+ 70° C (without freeze)
Diameter/Dimension M18

Test/Approvals

Approvals CE cURus
EMC compatibility EN 60947-5-2
Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protection IP67

Accessories

Supplied Accessories Nuts M18 x 1

Generical Data

Dimensions M18x1/L=78,9mm
Operating Temperature - 25°C…+ 70°C (Without freeze)
Mechanical Protection IP67
