Technical features

Detection properties

Nominal sensing distance 30m
Sensitivity adjustment No
Hysteresis +/- 1%

Application

Function Principle Receiver
Notes (3m for car washes)
Emitter/Receiver Receiver

Outputs

Output type Push-Pull LO
Output Function LO
Response time <12 ms

Electrical data

Operating Voltage 19,2 … 28,8VDC
Load current ≤30mA
LED indicators Green (RUN)
Time delay before availability ≤200ms
Short-circuit protection Yes
Reverse Polarity Protection Yes
Impulsive Overvoltage Protection Yes
Digital Resolution 12 bit

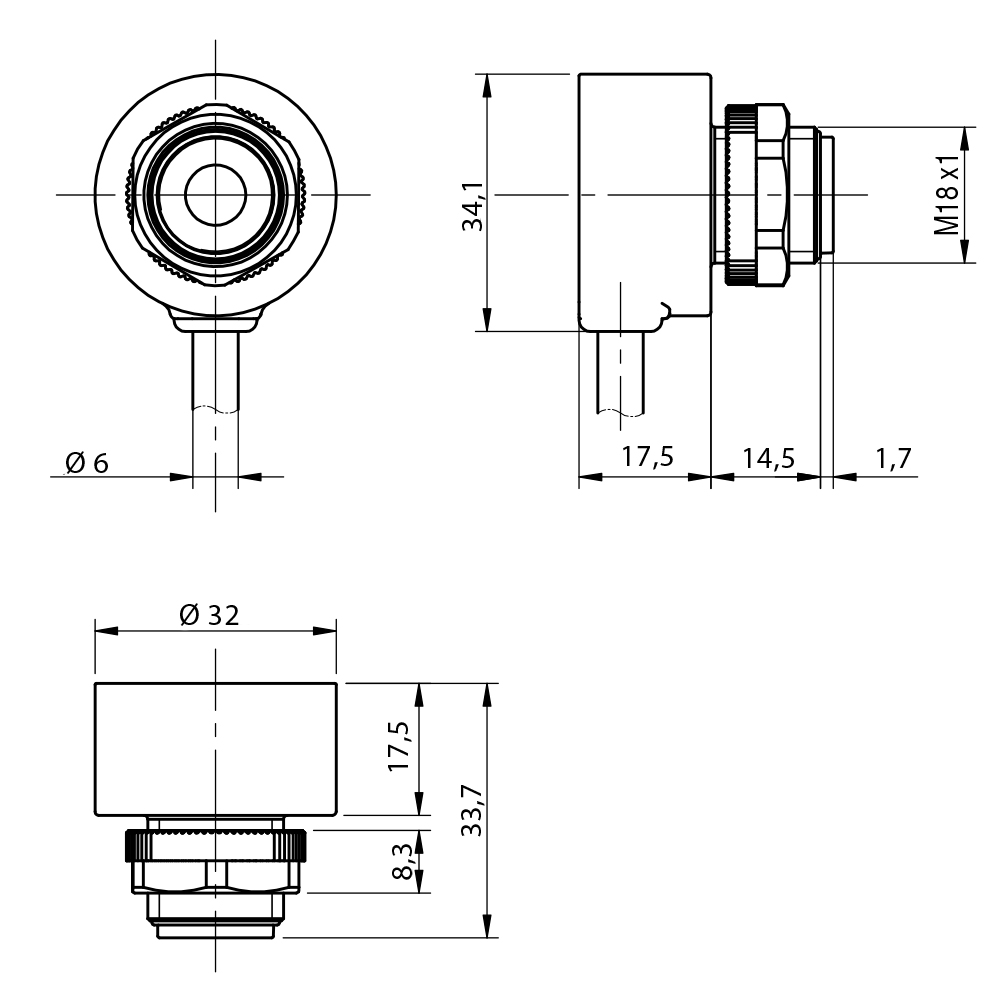

Mechanical data

Weight 570 g (the pair)
Housing Material PBT + PC

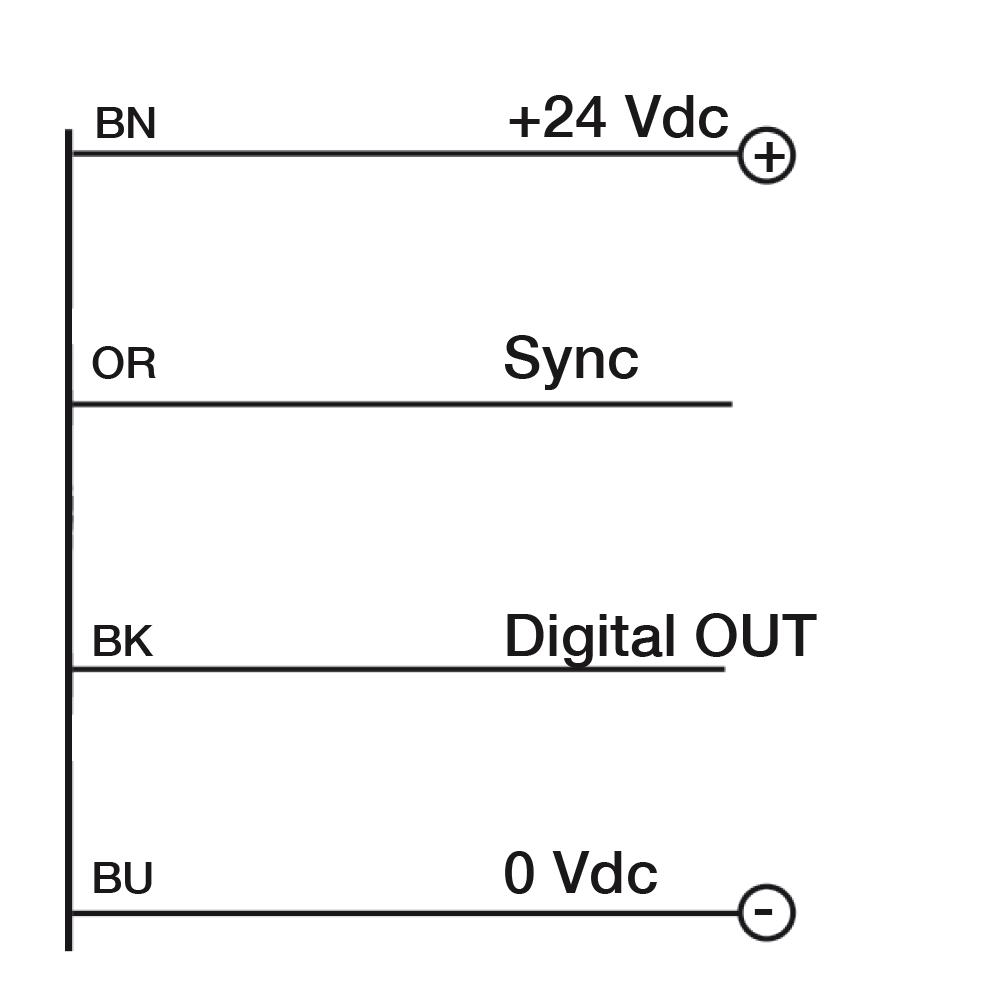

Connections 5m PVC cable
Active Head Material PC
Tightening torque 1Nm
Operating temperature -20..70°C (without freeze)
Storage temperature -30..90°C (without freeze)

Test/Approvals

Approvals CE
EMC compatibility EN 60947-5-2
Degree of protection IP67 (front-head IP69K)

Generical Data

Operating Temperature - 20°C…+ 70°C (Without freeze)
Mechanical Protection IP67 (front-head IP69K)
