FAL

FAL4/BP-1E

Photo.M18,Laser emiss.,PNP-NO+NC,M12 plug,Diffuse

M18 photoelectric sensors DC LASER emission

  • Complete range of M18 sensors with 10...30 Vdc power supply
  • Axial and radial optic with flat surface
  • Visible red laser emission models
  • IP67 protection degree
  • Metallic or plastic housing
  • Sensitivity adjustment available for all models
  • Total protection against any type of electric damages
  • Approvals: CE and cULus listed

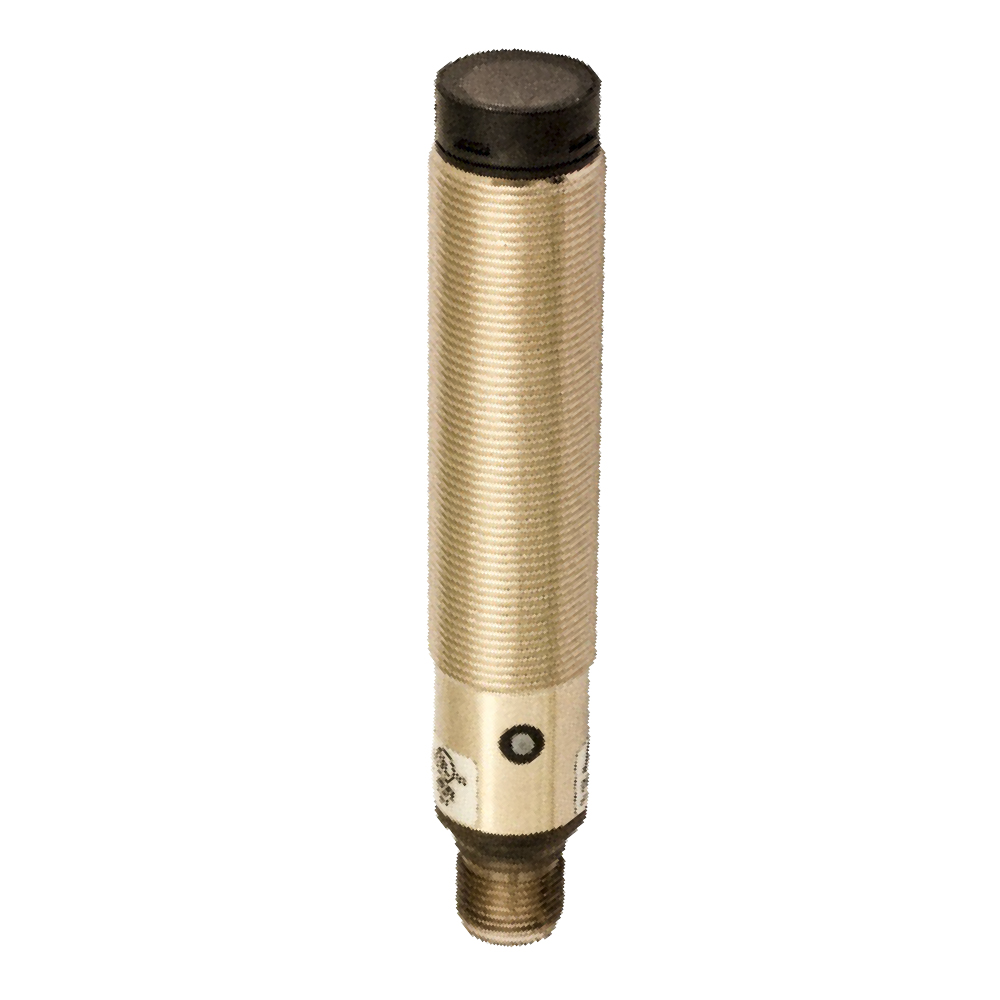

Indicative image

Technical features

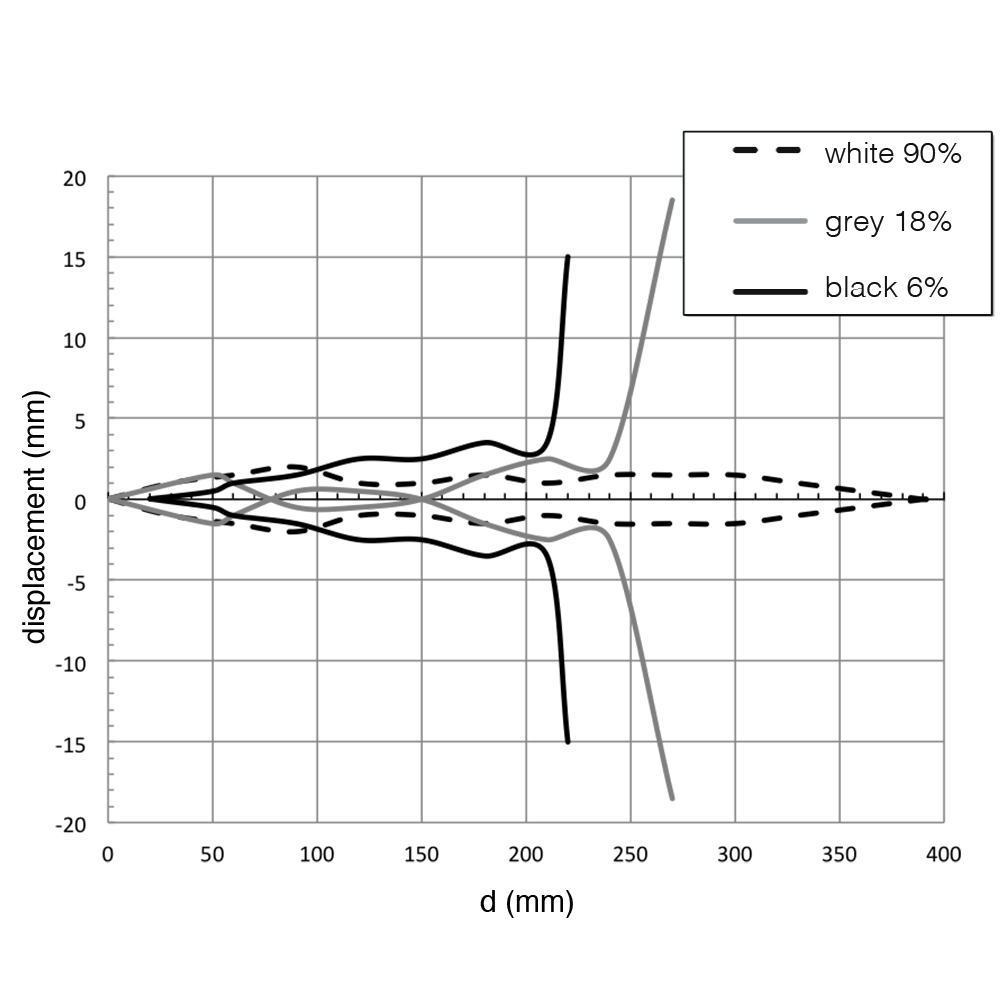

Detection properties

Nominal sensing distance 300mm
Thermal drift of Sr ≤10% Sr
Repeat Accuracy 5%
Sensitivity adjustment Teach-in

Application

Function Principle Diffuse reflection (medium distance, ≤600mm)

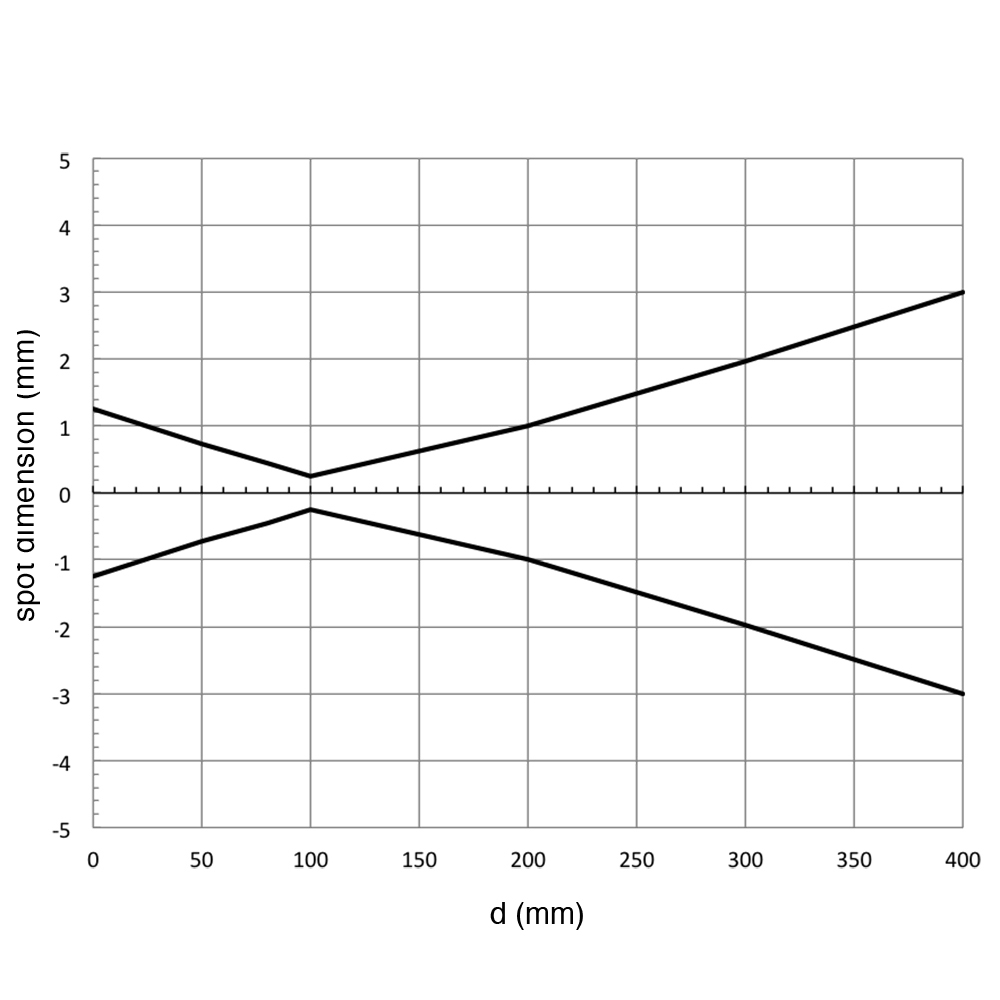

Notes (Focalized 100mm) white target 90% Kodak 200x200mm
Optic position Axial

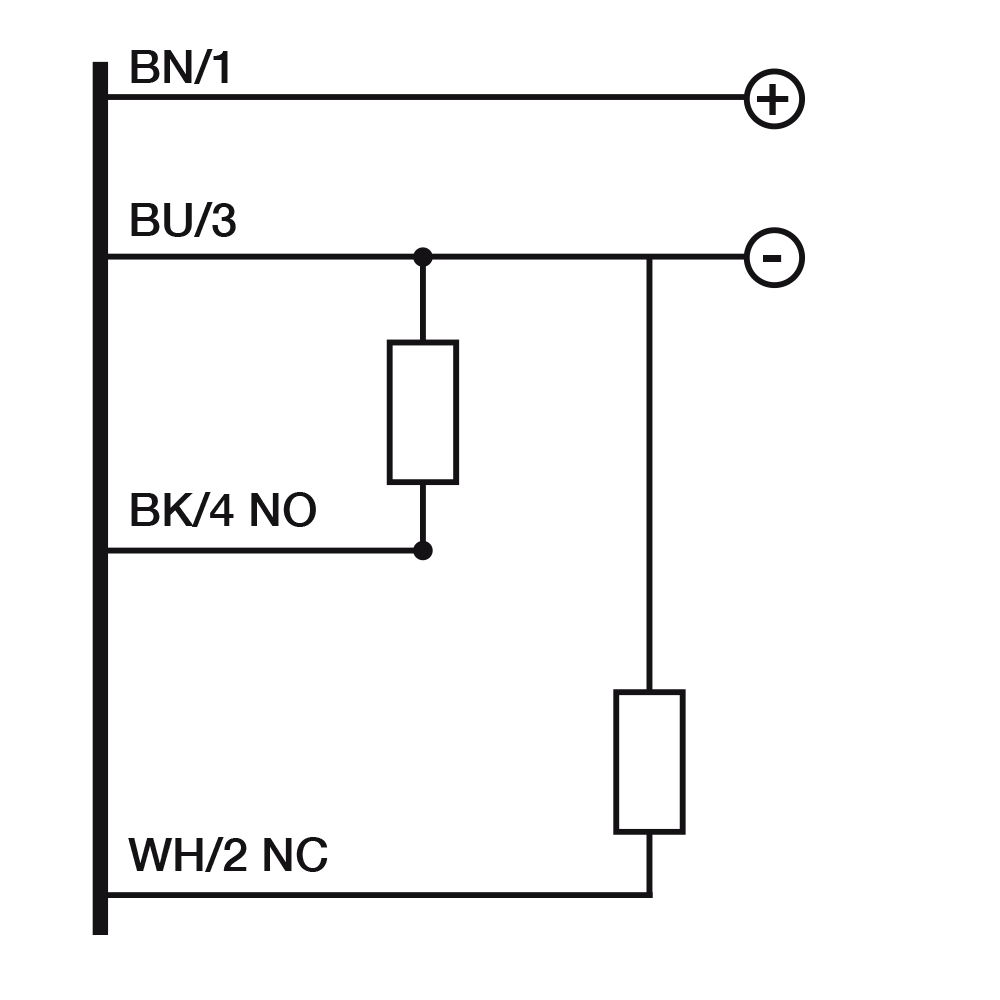

Outputs

Output type PNP NO+NC
Output Function NO+NC
Switching frequency 800Hz
Response time 625µs

Electrical data

Operating Voltage 10…30VDC
No-Load supply current ≤ 30mA
Load current ≤100mA
Leakage current ≤10μA
Output voltage drop ≤2V@Iload=100mA
Max ripple content ≤10%
LED indicators Green power supply/yellow (LightON EG≥2)/yellow flashing (LightON 1
Time delay before availability ≤200ms
Short-circuit protection Short circuit (autoreset), Overvoltage
Reverse Polarity Protection Polarity inversal, Inpulsive voltage
Emission LASER Red (650nm) class1
Interference to external light 3000lux (incandescent lamp), 10000lux (sunlight)

Mechanical data

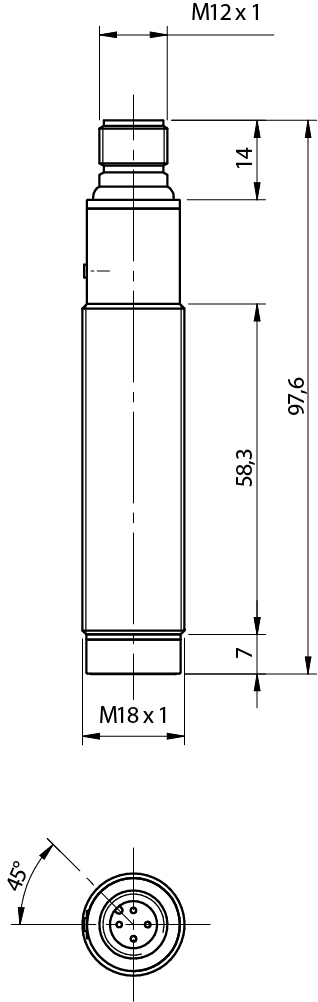

Dimensions M18 x 1 /L =97,6mm
Weight 100g
Housing Material Nickel plated brass / PC plug
Connections M12 plug
Active Head Material Glass / PC
Tightening torque 25Nm
Operating temperature -15°C...+ 55°C (Without freeze)
Diameter/Dimension M18

Test/Approvals

Approvals CE cULus
EMC compatibility EN 60947-5-2
Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protection IP67

Accessories

Supplied Accessories nuts M18 x 1, screwdriver

Generical Data

Dimensions M18 x 1 /L =97,6mm
Operating Temperature - 15°C...+ 55°C (Without freeze)
Mechanical Protection IP67
