FA

FAIH/00-0E

Photo.M18,IR emiss.,M12 plug,Emitter

M18 photoelectric sensors DC

  • Complete range of M18 sensors with 10...30 Vdc power supply
  • Axial and radial optic with flat surface
  • Retro-reflective models for transparent objects detection, with red emission IP67 protection degree
  • Metallic or plastic housing
  • Sensitivity adjustment available for all models
  • Total protection against any type of electric damages
  • Approvals: CE and cULus listed

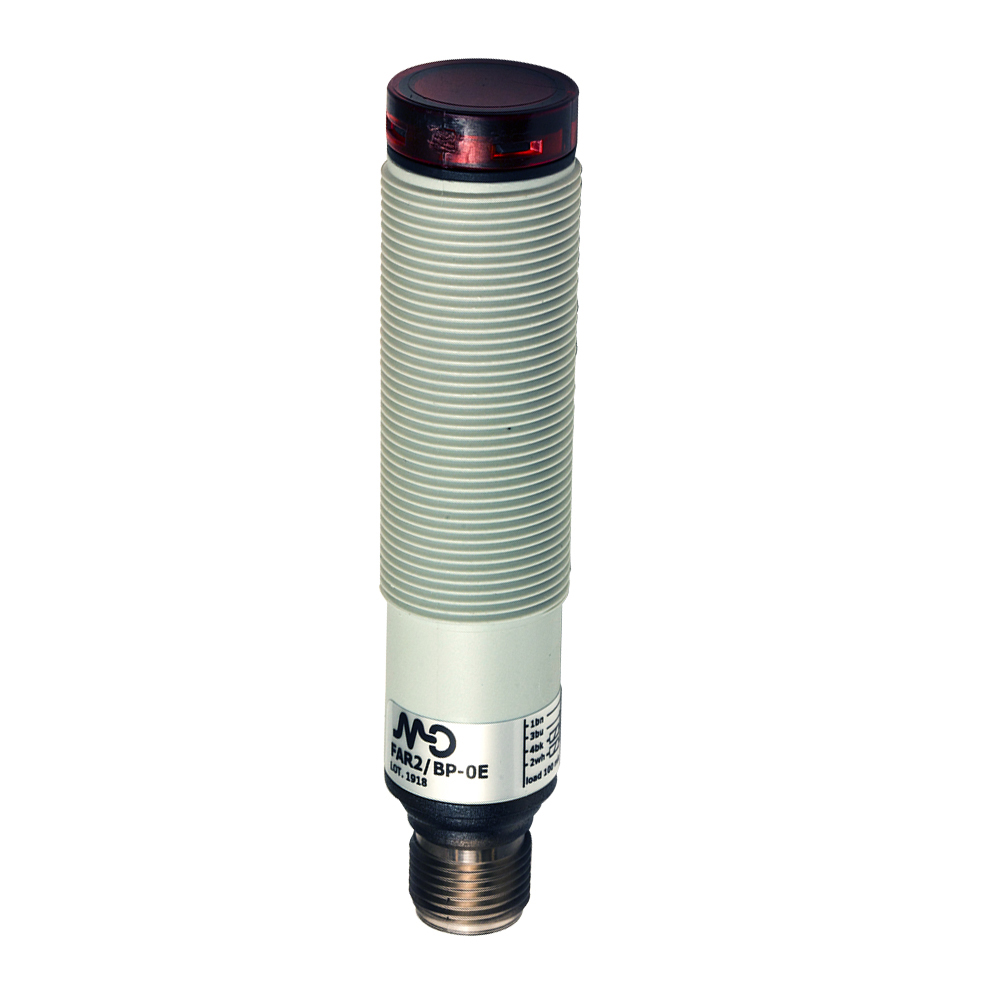

Indicative image

Technical features

Detection properties

Nominal sensing distance 20m
Thermal drift of Sr ≤10% Sr
Repeat Accuracy 5%
Sensitivity adjustment No

Application

Function Principle Emitter
Emitter/Receiver Emitter
Optic position Axial

Outputs

Output type
Switching frequency 250Hz
Response time 2ms

Electrical data

Operating Voltage 10…30VDC
No-Load supply current ≤ 25mA
Max ripple content ≤10%
LED indicators Yellow (powerON)
Time delay before availability ≤200ms
Reverse Polarity Protection Polarity inversal, Inpulsive voltage
Emission LED Infrared (880nm)

Mechanical data

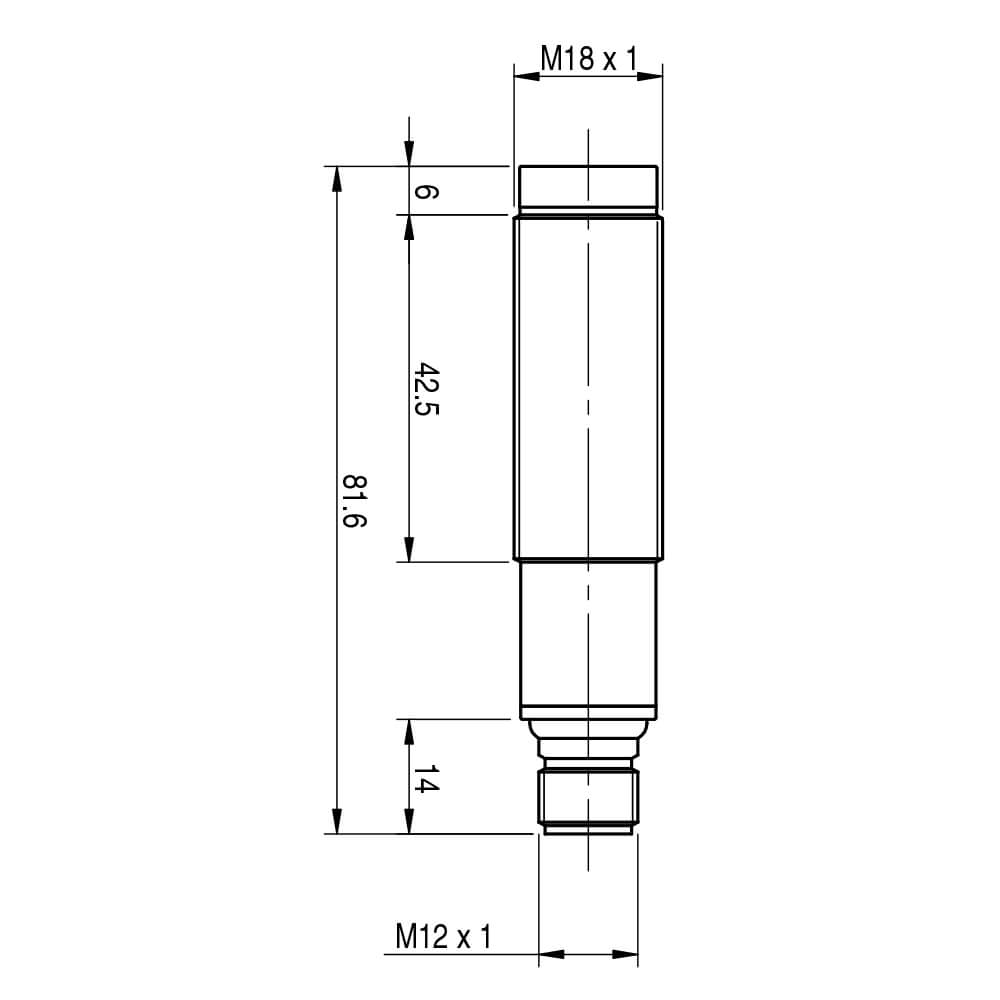

Dimensions M18 x 1 /L =81,6mm
Weight 30g
Housing Material PBT / PC plug
Connections M12 plug
Active Head Material PC
Tightening torque 1Nm
Operating temperature - 25°C…+ 70° C (Without freeze)
Diameter/Dimension M18

Test/Approvals

Approvals CE cULus
EMC compatibility EN 60947-5-2
Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protection IP67

Accessories

Supplied Accessories nuts M18 x 1

Generical Data

Dimensions M18 x 1 /L =81,6mm
Operating Temperature - 25°C…+ 70°C (Without freeze)
Mechanical Protection IP67
