DM

DMP/0P-1H

Photo.M12,PNP-NO/NC,M12 plug,Reflex

M12 cylindrical photoelectric sensors

  • Models diffuse reflection, polarized and through-beam
  • Local and remote teach-in function
  • Light-on / Dark-on selectable outputs
  • IP67 protection degree
  • Multifunction LED status indicator
  • Complete protection against electrical damages
  • Approvals: CE and cULus listed




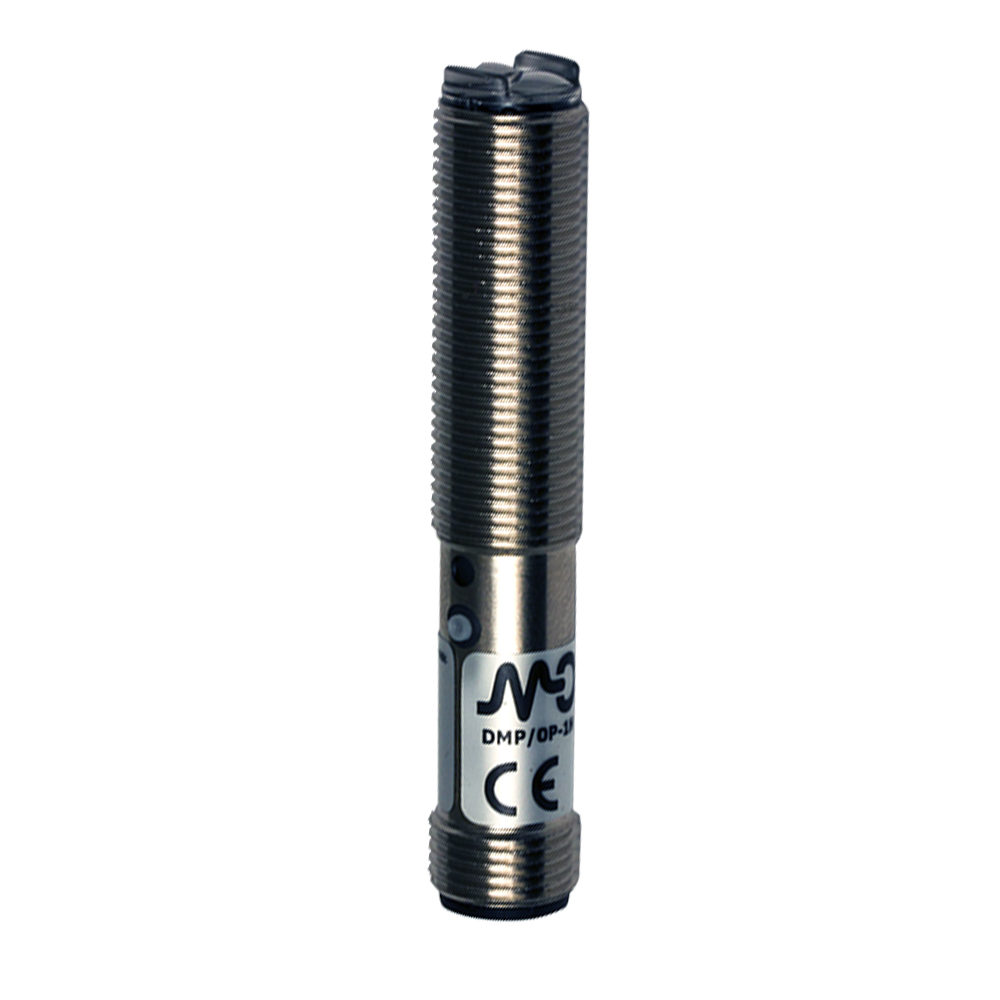

Indicative image

Technical features

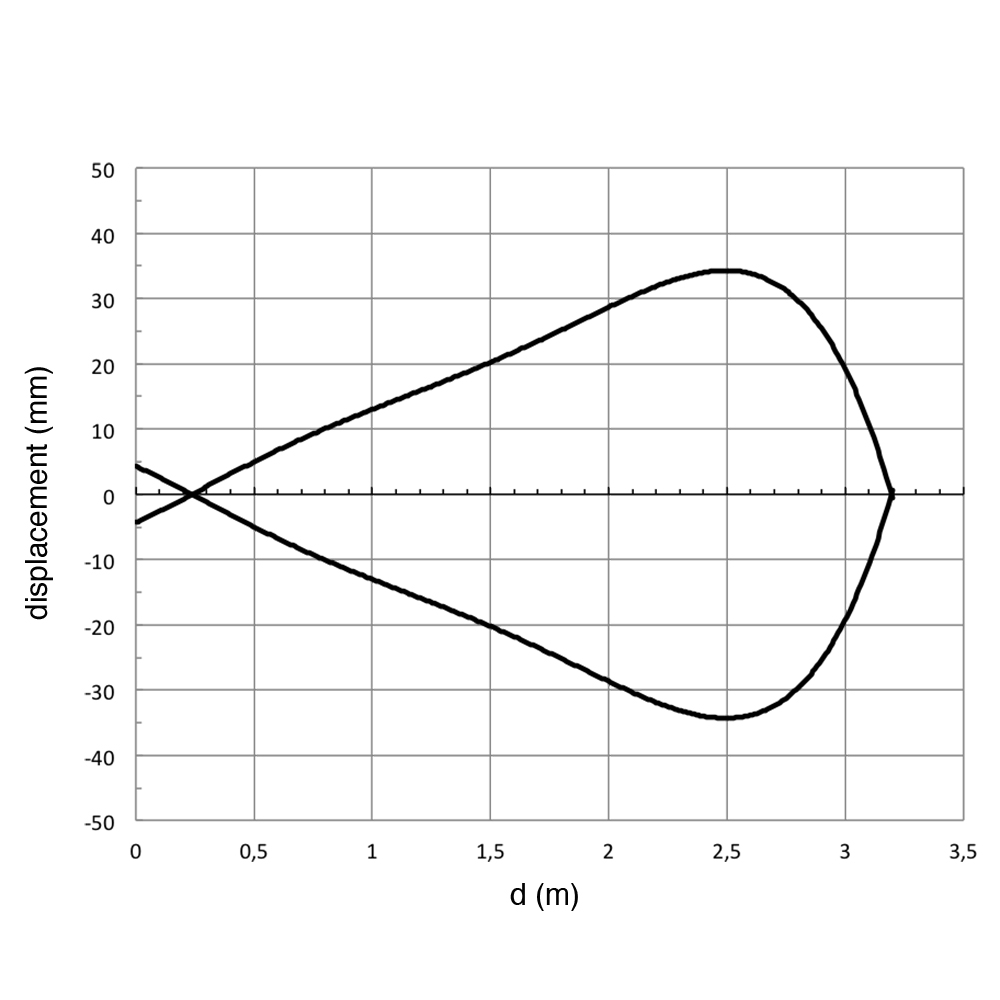

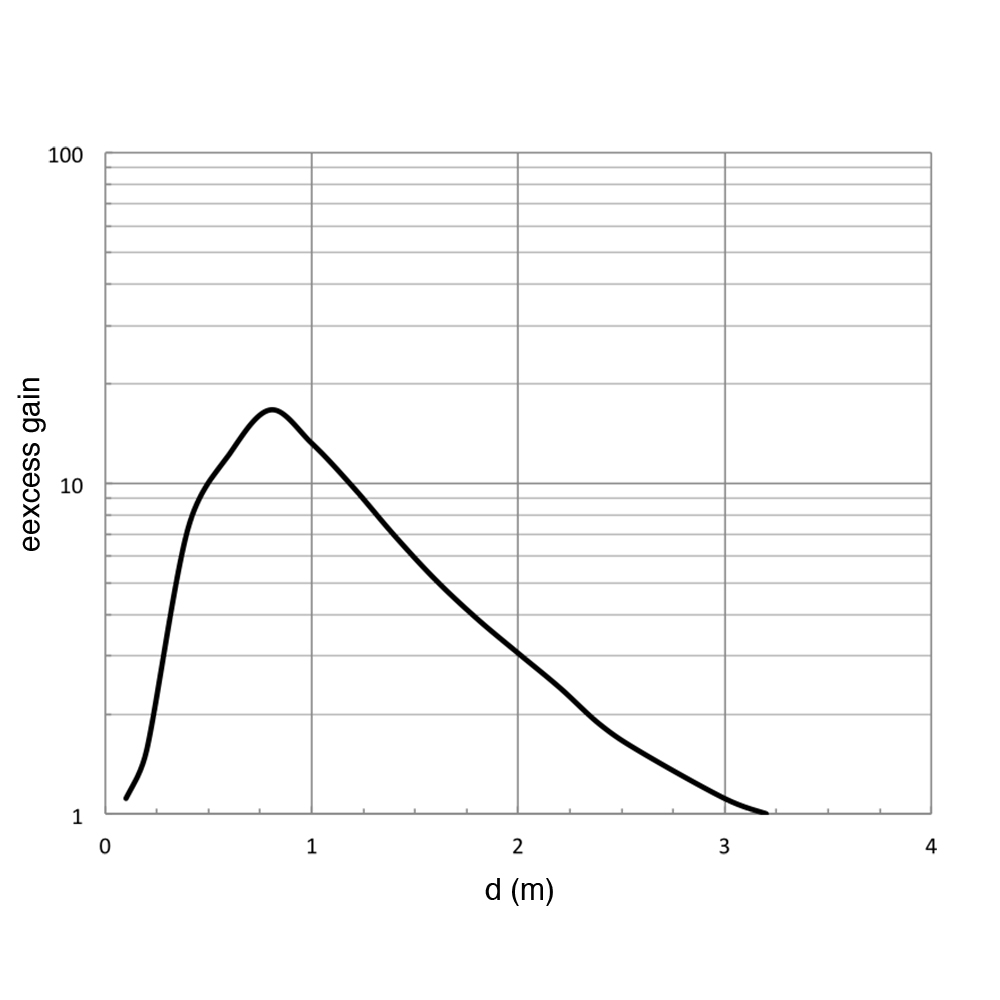

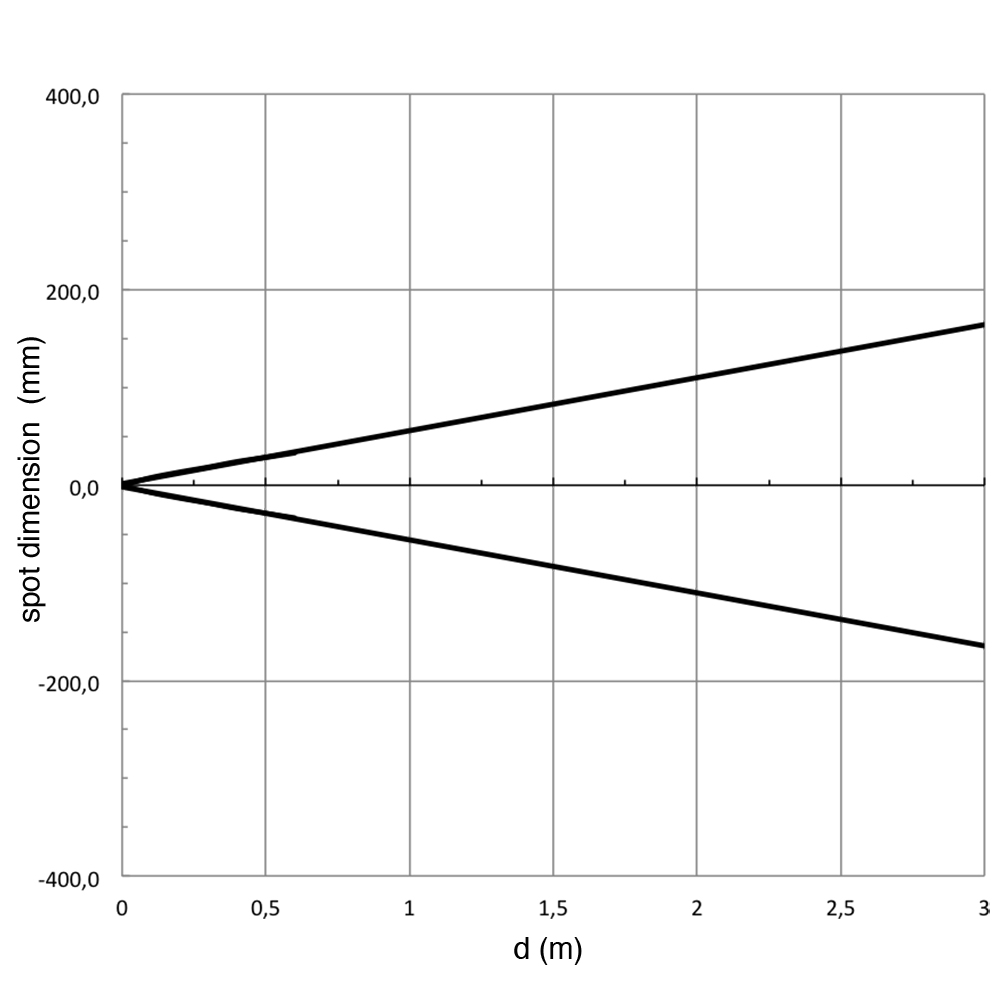

Detection properties

Nominal sensing distance 2,5m
Thermal drift of Sr ≤10% Sr
Repeat Accuracy 5%
Sensitivity adjustment Teach-in

Application

Function Principle Polarized
Notes On RL110 reflector
Optic position Axial

Outputs

Output type PNP L/D Selectable
Output Function L/D Selectable
Switching frequency 400Hz
Response time 1,25ms

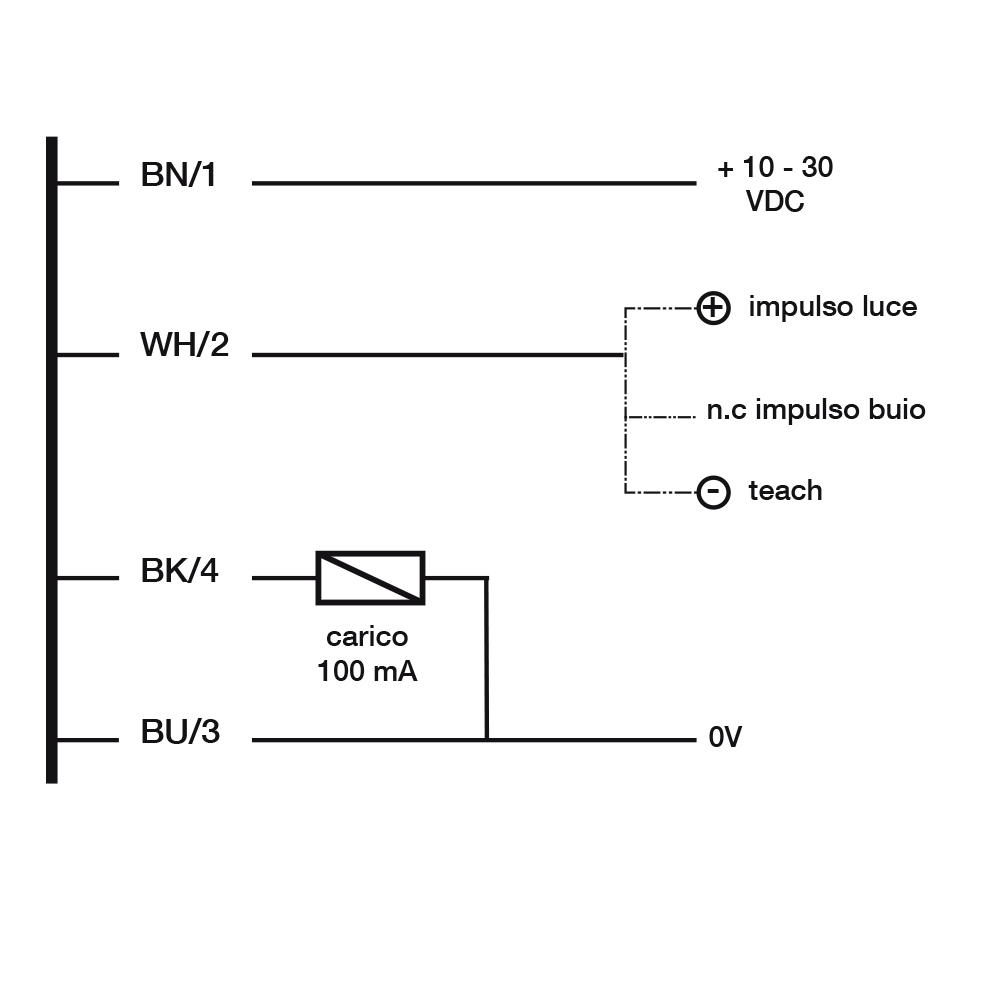

Electrical data

Operating Voltage 10…30VDC
No-Load supply current ≤ 30mA
Load current ≤100mA
Leakage current ≤10μA
Output voltage drop ≤2V@Iload=100mA
Max ripple content ≤10%
LED indicators Yellow (status output)
Time delay before availability ≤150ms
Short-circuit protection Yes
Reverse Polarity Protection Yes
Emission LED Red (660nm)
Interference to external light 3.000lux (incandescent lamp), 10.000lux (sunlight)
Impulsive Overvoltage Protection Yes

Mechanical data

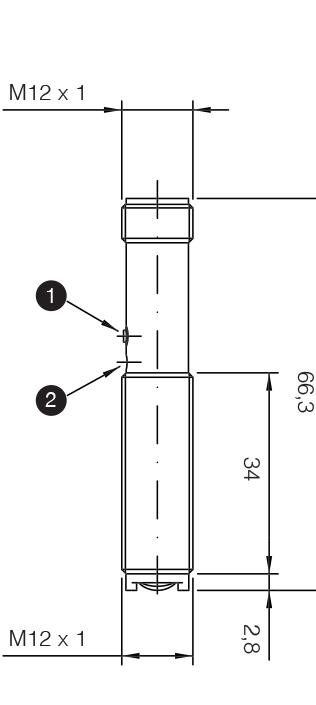

Dimensions M12x1/L=66,3mm
Weight 28g
Housing Material Nickel plated brass
Connections M12 plug
Active Head Material PMMA
Operating temperature - 25°C…+ 70° C
Diameter/Dimension M12

Test/Approvals

Approvals CE cULus Ex: II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
EMC compatibility EN 60947-5-2
Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protection IP67

Accessories

Supplied Accessories nuts M12 x 1

Generical Data

Dimensions M12x1/L=65,5mm
Operating Temperature - 25°C…+ 70°C (Without freeze)
Mechanical Protection IP67
