AT

AT1/AP-4H

Ind.M30,PNP-NO,M12 Plug,Nsch-LD

M30 cylindrical inductive sensors

  • Wide range of models: standard, long distance
  • Output: cable, M12 and plug cable exit
  • Models with 2, 3, and 4 wires
  • ATEX models, cat. 3, available on request
  • Models with complementary output (NO + NC)
  • Complete protection against electrical damages




Indicative image

Technical features

Detection properties

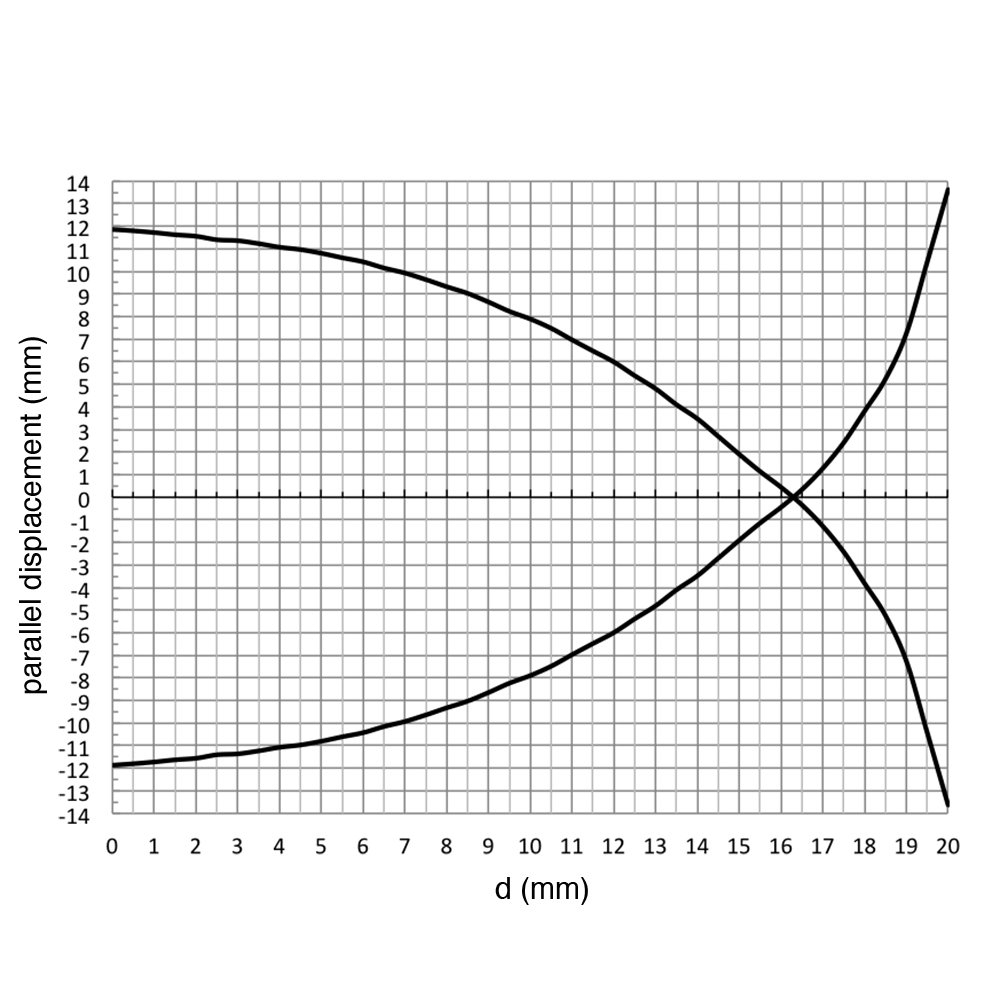

Nominal sensing distance 20mm
Operanting distance 0…16,2mm
Standard target 60x60mm FE360
Correction Factor copper: 0,45 / aluminium: 0,50 / brass: 0,55 / stainless steel: 0,75
Thermal drift of Sr < 10%
Repeat Accuracy < 5% (UB 24V Ta=23°C ±5°C)
Hysteresis 1 … 20%

Application

Description M30 standard no-flush mount
Functions Proximity

Outputs

Output type PNP
Output Function NO
Switching frequency 200Hz

Electrical data

Operating Voltage 10...30Vdc
No-Load supply current ≤ 20mA
Load current ≤ 400mA
Leakage current ≤ 10μA
Output voltage drop ≤ 1V @400mA
Max ripple content ≤ 10%
LED indicators Yellow LED output state
Time delay before availability ≤100ms
Short-circuit protection Yes
Reverse Polarity Protection Yes
Impulsive Overvoltage Protection Yes
Protection against inductive loads Yes

Mechanical data

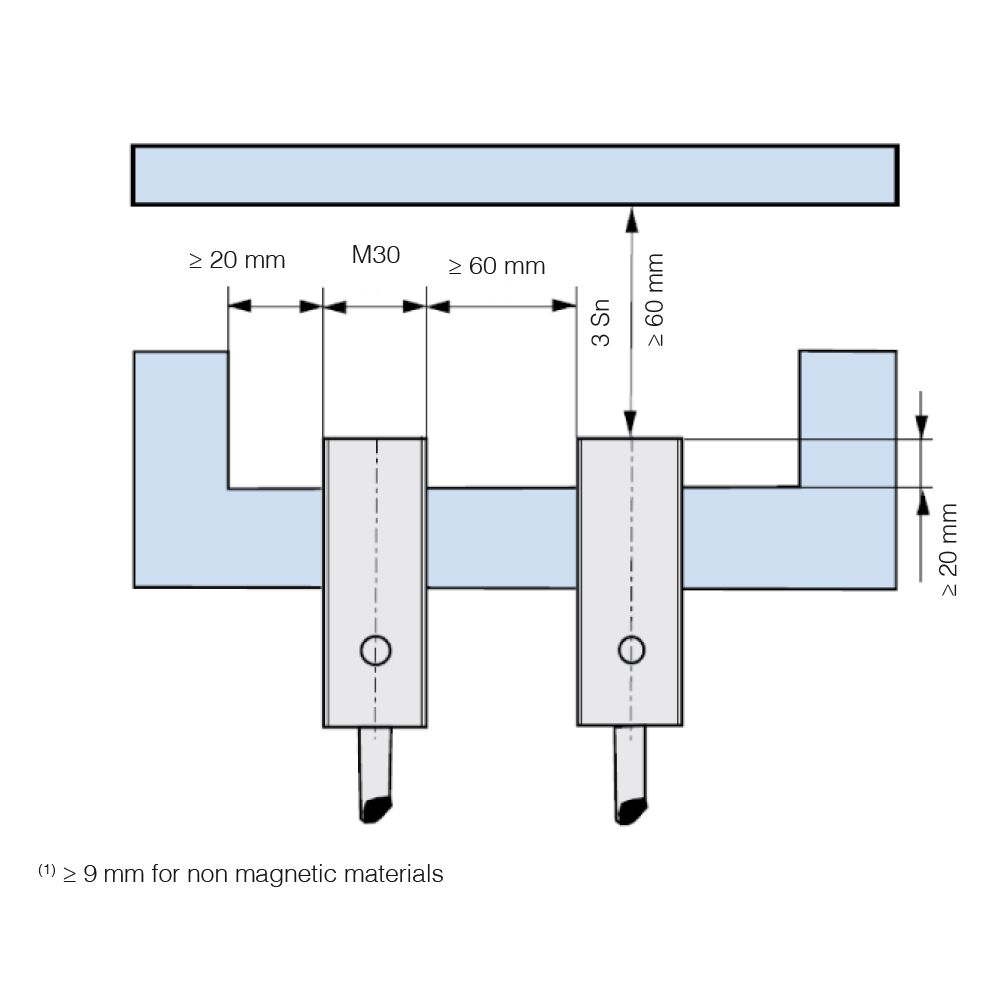

Mounting Unshielded
Dimensions M30 x 1,5 / L = 76mm
Weight 150g
Housing Material Nickel-plated brass
Connections M12 Plug
Active Head Material PBT
Tightening torque 50Nm
Operating temperature -25°C…+70°C
Material Nickel-plated brass
Diameter/Dimension M30

Test/Approvals

Approvals CE UR
EMC compatibility IEC 60947-5-2
Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protection IP67

Accessories

Supplied Accessories 2 nuts M30x1.5

Generical Data

Dimensions M30 x 1,5 / L = 76mm
Operating Temperature -25°C…+70°C
Mechanical Protection IP67
