M12 cylindrical inductive sensors

  • Wide range of models: standard, short body, long distance
  • Output: cable, M12 and M8 plug cable exit
  • Models with 2, 3 wires
  • ATEX models, cat. 3, available on request

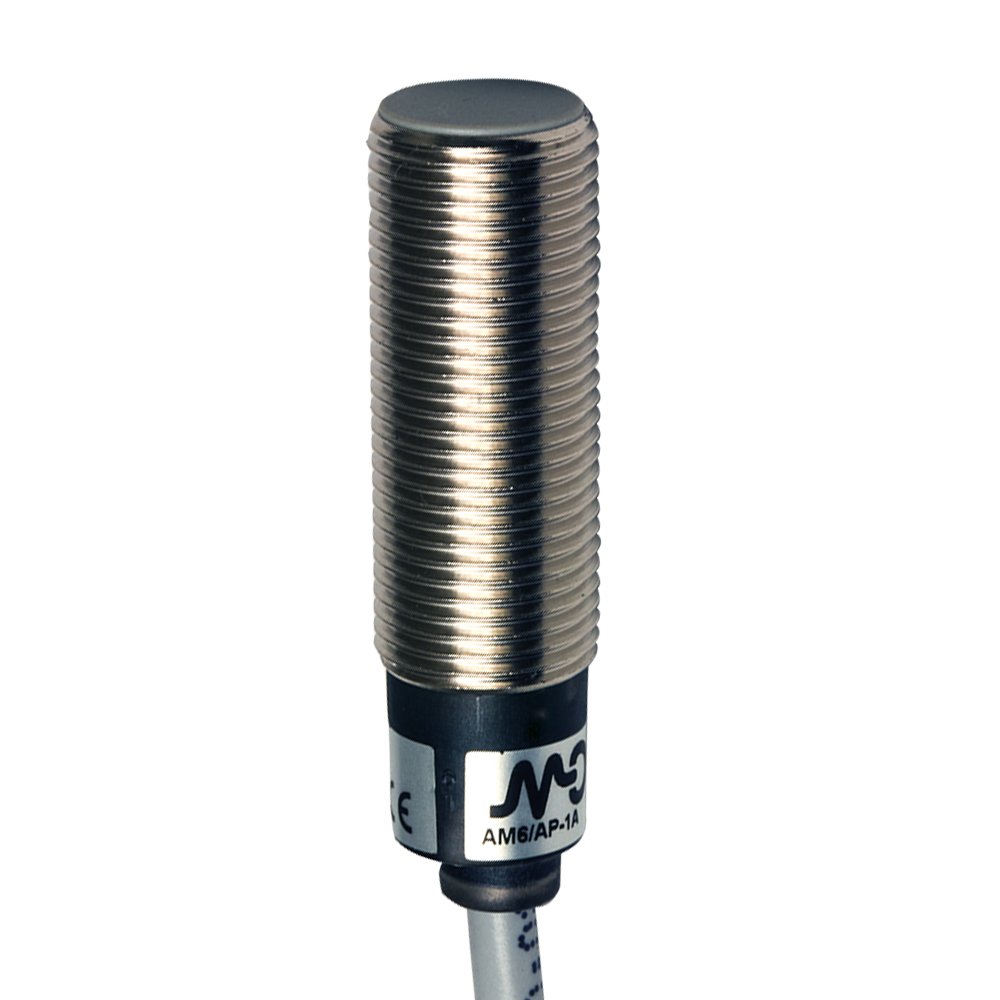

Indicative image

Technical features

Detection properties

Nominal sensing distance 4mm
Operanting distance 0…3,2mm
Standard target 12x12mm FE360
Correction Factor copper: 0,33 / aluminium: 0,4 / brass: 0,5 / stainless steel: 1,05
Thermal drift of Sr < 10%
Repeat Accuracy < 5% (UB 24V Ta=23°C ±5°C)
Hysteresis 1 … 20%


Description M12 short case flush mount
Functions Proximity


Output type PNP
Output Function NO
Switching frequency 2kHz

Electrical data

Operating Voltage 10...30Vdc
No-Load supply current ≤ 10mA
Load current ≤ 200mA
Leakage current ≤ 10μA
Output voltage drop ≤ 1,8V @200mA
Max ripple content ≤ 10%
LED indicators Yellow LED output state
Time delay before availability ≤ 50ms
Short-circuit protection Yes
Reverse Polarity Protection Yes
Impulsive Overvoltage Protection Yes
Protection against inductive loads Yes

Mechanical data

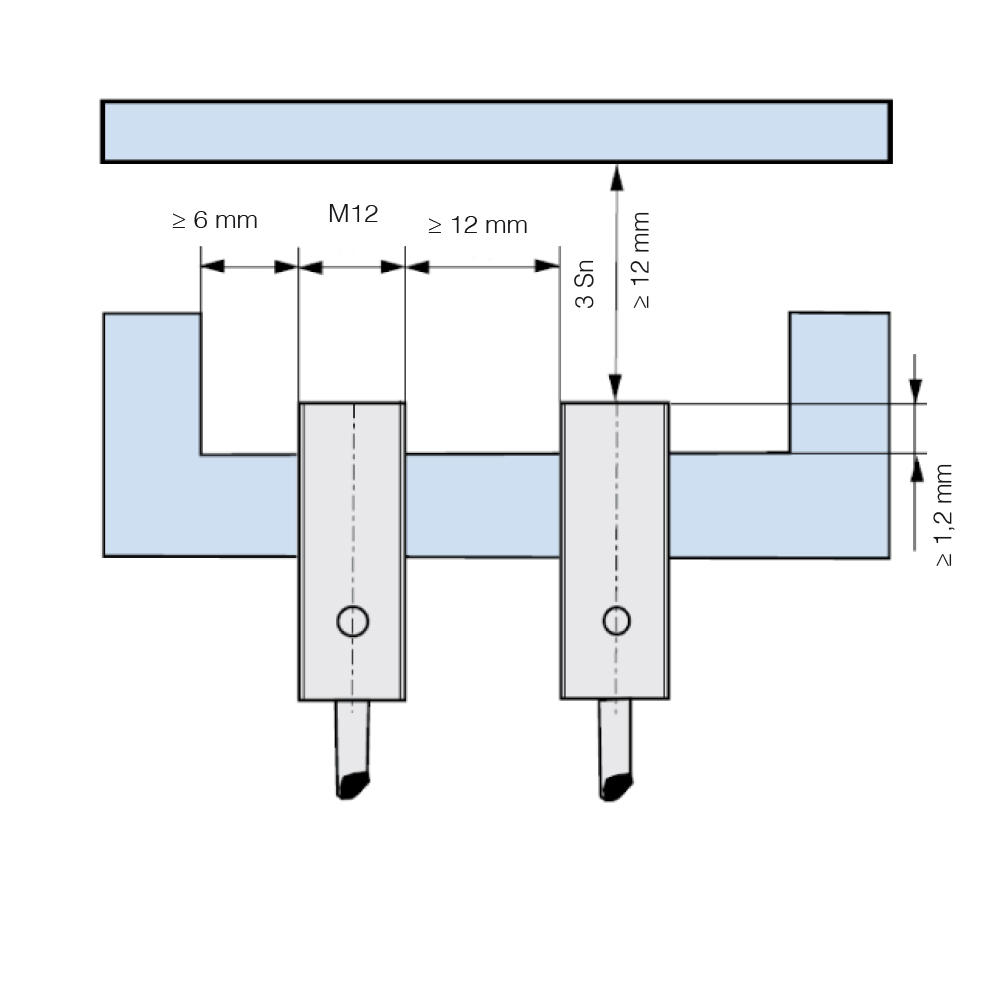

Mounting Shielded

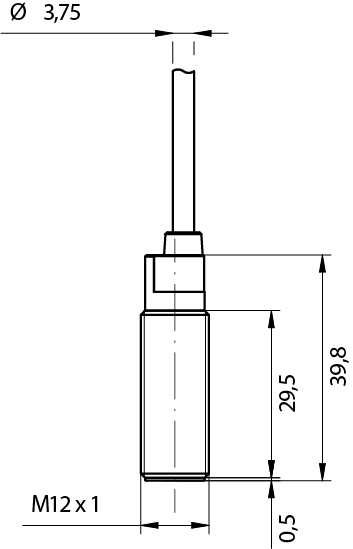

Dimensions M12 x 1 / L = 39,8mm
Weight 60g
Housing Material Nickel-plated brass
Connections 2m PVC Cable
Active Head Material PBT
Tightening torque 10Nm
Operating temperature -25°C…+70°C
Material Nickel-plated brass
Diameter/Dimension M12


Approvals CE UR
EMC compatibility IEC 60947-5-2
Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protection IP67


Supplied Accessories 2 nuts M12x1

Generical Data

Dimensions M12 x 1 / L = 39,8mm
Operating Temperature -25°C…+70°C
Mechanical Protection IP67
