AES

AES/AP-1F

Ind.M8,PNP-NO,M8 plug,Sch-STD

M8 cylindrical miniaturized inductive sensors

  • Miniaturized dimensions: M8 x 20 mm (cable) / 30 mm (plug) lenght
  • Operating voltage: 10...30 Vcc
  • Output current: 100 mA
  • LED output indicator
  • Totally protected against electrical damages
  • Cable and plug M8 output
  • Steinless steel housing

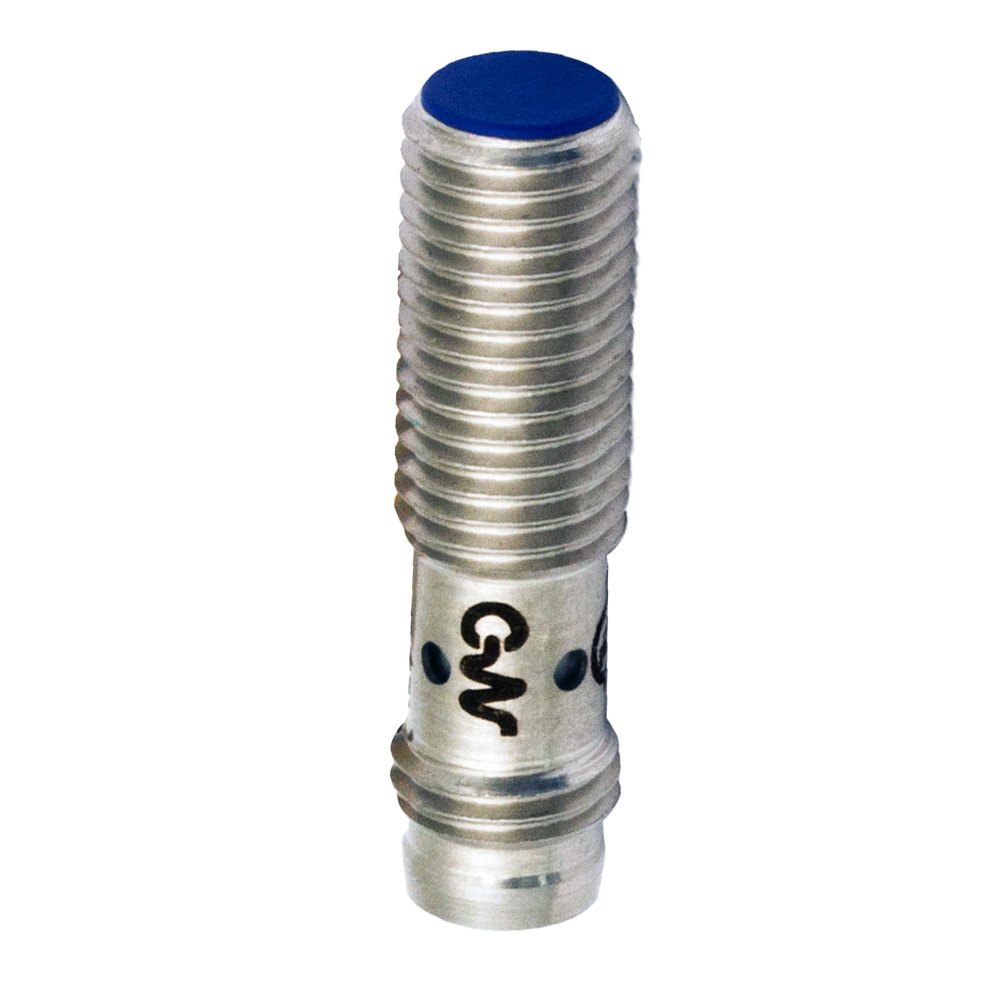

Indicative image

Technical features

Detection properties

Nominal sensing distance 1,5mm
Operanting distance 0…1,21mm
Standard target 8x8mm FE360
Correction Factor copper: 0,15 ± 10% / aluminium: 0,10 ± 10% / brass: 0,15 ± 10% / stainless steel: 0,55 ± 10%
Thermal drift of Sr < 10%
Repeat Accuracy < 5% (UB 24V Ta=23°C ±5°C)
Hysteresis 1 … 20%

Application

Description M8 mini flush mount
Functions Proximity

Outputs

Output type PNP
Output Function NO
Switching frequency 7kHz

Electrical data

Operating Voltage 10...30Vdc
No-Load supply current ≤ 10mA
Load current ≤ 100mA
Leakage current ≤ 10μA
Output voltage drop ≤ 1,5V @100mA
Max ripple content ≤ 10%
LED indicators Yellow LED output state
Time delay before availability ≤ 50ms
Short-circuit protection Yes
Reverse Polarity Protection Yes
Impulsive Overvoltage Protection Yes
Protection against inductive loads Yes

Mechanical data

Mounting Shielded

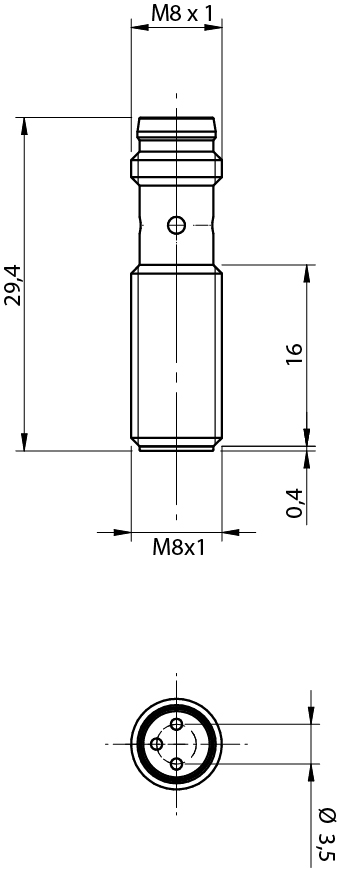

Dimensions M8 x 1 / L = 29,4mm
Weight 4g
Housing Material AISI 303 Stainless Steel
Connections M8 Plug
Active Head Material PBT
Tightening torque 5Nm
Operating temperature -25°C…+70°C
Material AISI303 Stainless Steel
Diameter/Dimension M8

Test/Approvals

Approvals CE cULus
EMC compatibility IEC 60947-5-2
Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protection IP67

Accessories

Supplied Accessories 2 nuts M8x1

Generical Data

Dimensions M8 x 1 / L = 29,4mm
Operating Temperature -25°C…+70°C
Mechanical Protection IP67
