Technical features

Detection properties

Nominal sensing distance 15m
Repeat Accuracy 5%
Sensitivity adjustment Trimmer


Function Principle Diffuse reflection (medium distance, ≤600mm)
Emitter/Receiver Emitter
Optic position Radial 90°


Output type

Electrical data

Operating Voltage 10…30VDC
No-Load supply current ≤ 25mA
Output voltage drop ≤2V@Iload=100mA
Max ripple content ≤10%
LED indicators Green (powerON)
Time delay before availability ≤200ms
Short-circuit protection Yes
Reverse Polarity Protection Yes
Emission LED Infrared (850nm)
Impulsive Overvoltage Protection Yes

Mechanical data

Dimensions 31,4x21x11mm
Weight 65g
Housing Material Stainless steel AISI 316L

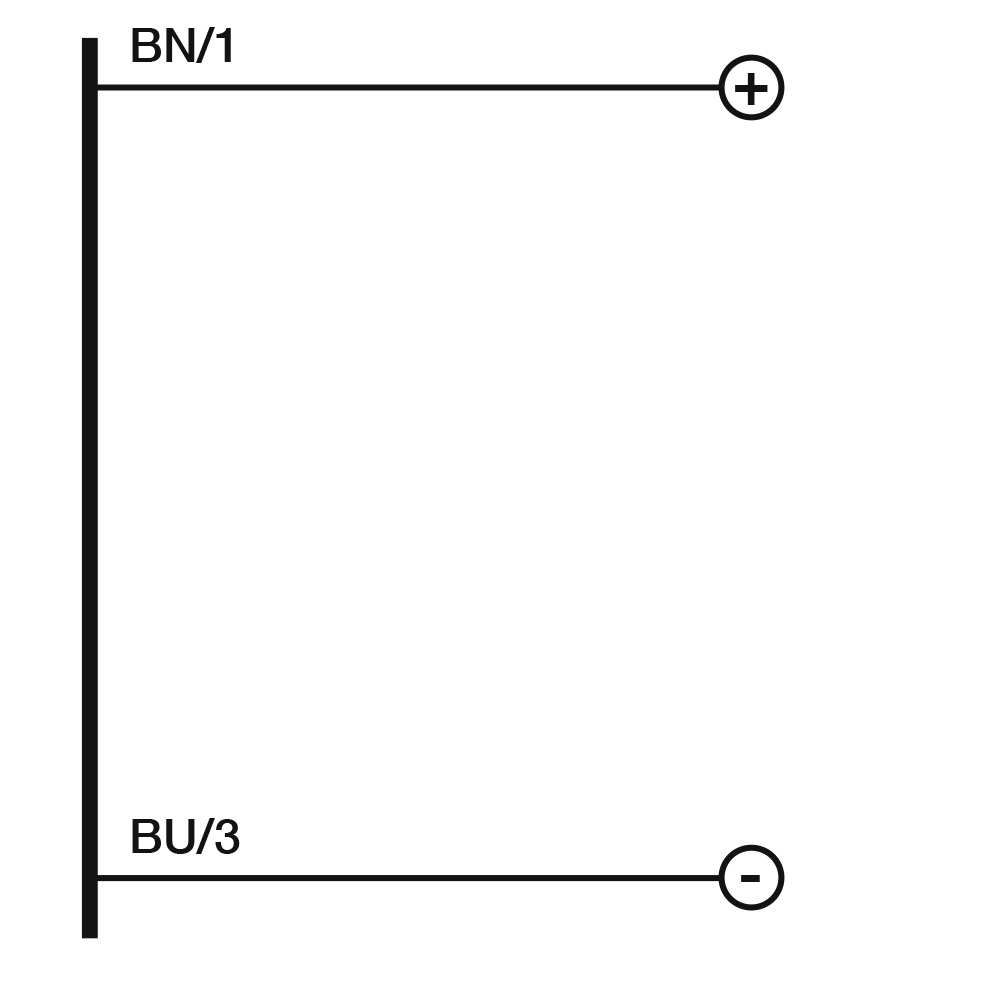

Connections M8 plug 4pin
Active Head Material PPSU
Operating temperature - 25°C…+ 60° C (Without freeze)
Storage temperature -40° ... +70°C
Diameter/Dimension Cubic


Approvals CE cULus ECOLAB
EMC compatibility EN 60947-5-2
Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protection IP68, IP69K


Supplied Accessories Mouting bracket

Generical Data

Dimensions 31,4x21x11mm
Operating Temperature - 15°C...+ 55°C (Without freeze)
Mechanical Protection IP68, IP69K
