Technical features

Detection properties

Nominal sensing distance 15m
Repeat Accuracy 5%
Sensitivity adjustment No

Application

Function Principle Diffuse reflection (medium distance, ≤600mm)
Emitter/Receiver Receiver
Optic position Radial 90°

Outputs

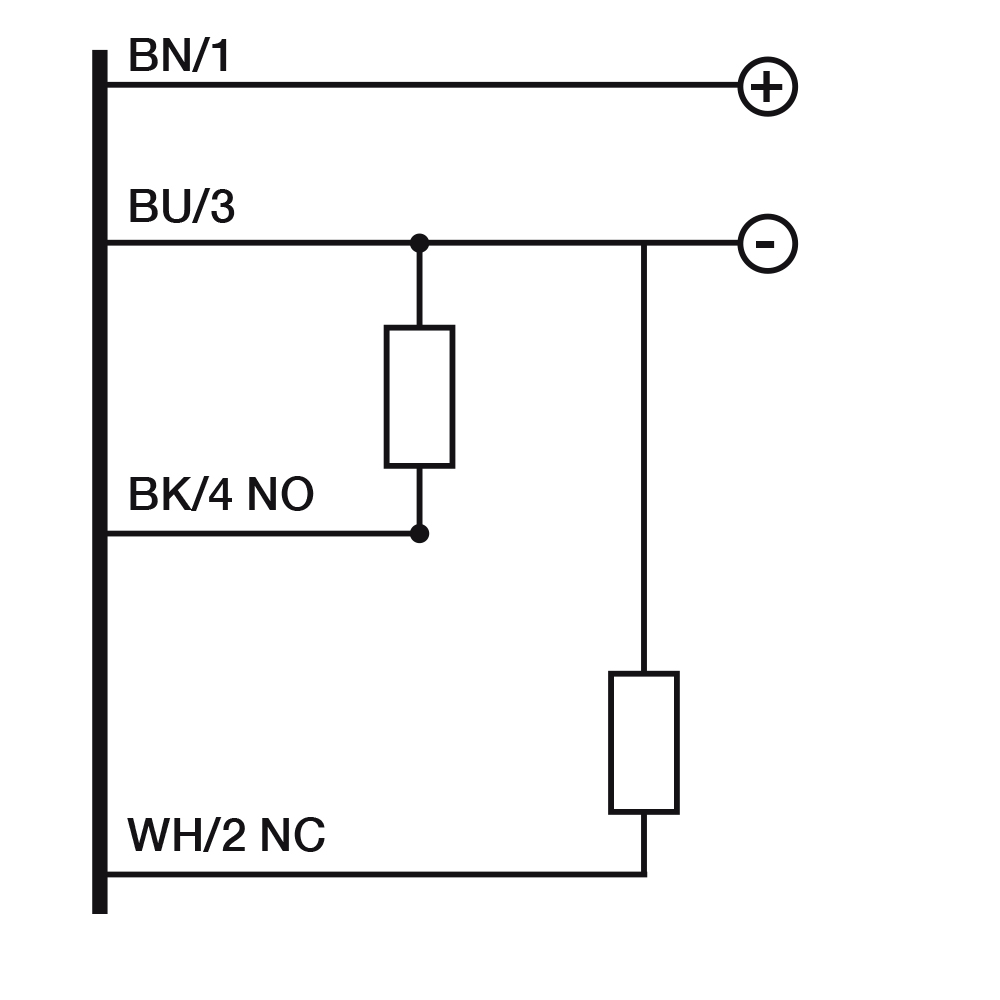

Output type PNP NO+NC
Output Function NO+NC
Switching frequency 500Hz
Response time 1ms

Electrical data

Operating Voltage 10…30VDC
No-Load supply current ≤ 20mA
Load current ≤100mA
Leakage current ≤100μA
Output voltage drop ≤2V@Iload=100mA
Max ripple content ≤10%
LED indicators Yellow (status output), green (stability, powerON)
Time delay before availability ≤200ms
Short-circuit protection Yes
Reverse Polarity Protection Yes
Emission LED Infrared (850nm)
Interference to external light ≤60000lux
Impulsive Overvoltage Protection Yes

Mechanical data

Dimensions 31,4x21x11mm
Weight 65g
Housing Material Stainless steel AISI 316L
Connections M8 plug 4pin
Active Head Material PPSU
Operating temperature - 25°C…+ 60° C (Without freeze)
Storage temperature -40° ... +70°C
Diameter/Dimension Cubic

Test/Approvals

Approvals CE cULus ECOLAB
EMC compatibility EN 60947-5-2
Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protection IP68, IP69K

Accessories

Supplied Accessories Mouting bracket screwdriver

Generical Data

Dimensions 31,4x21x11mm
Operating Temperature - 15°C...+ 55°C (Without freeze)
Mechanical Protection IP68, IP69K
