Technical features

Electrical data

Nominal current 4 A

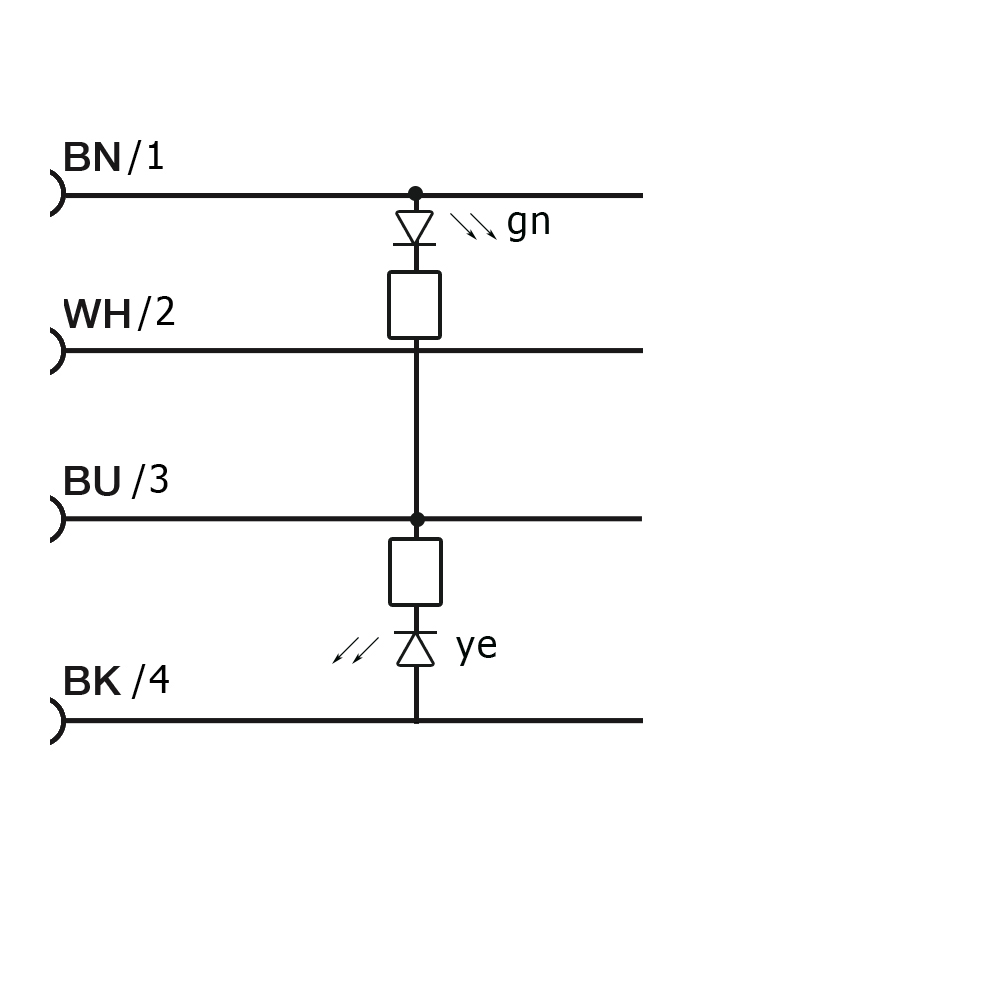

Led 2 (Supply - PNP output pin 4)
Wires 4
Rated impulse voltage 2,5 kV
Nominal voltage Max. 250 V ac/dc

Mechanical data

Connections With open ended wires
Tightening torque 0,6 Nm
Operating temperature =10°C...+80°C (flexible installation)-25°C...+80°C (fixed installation)

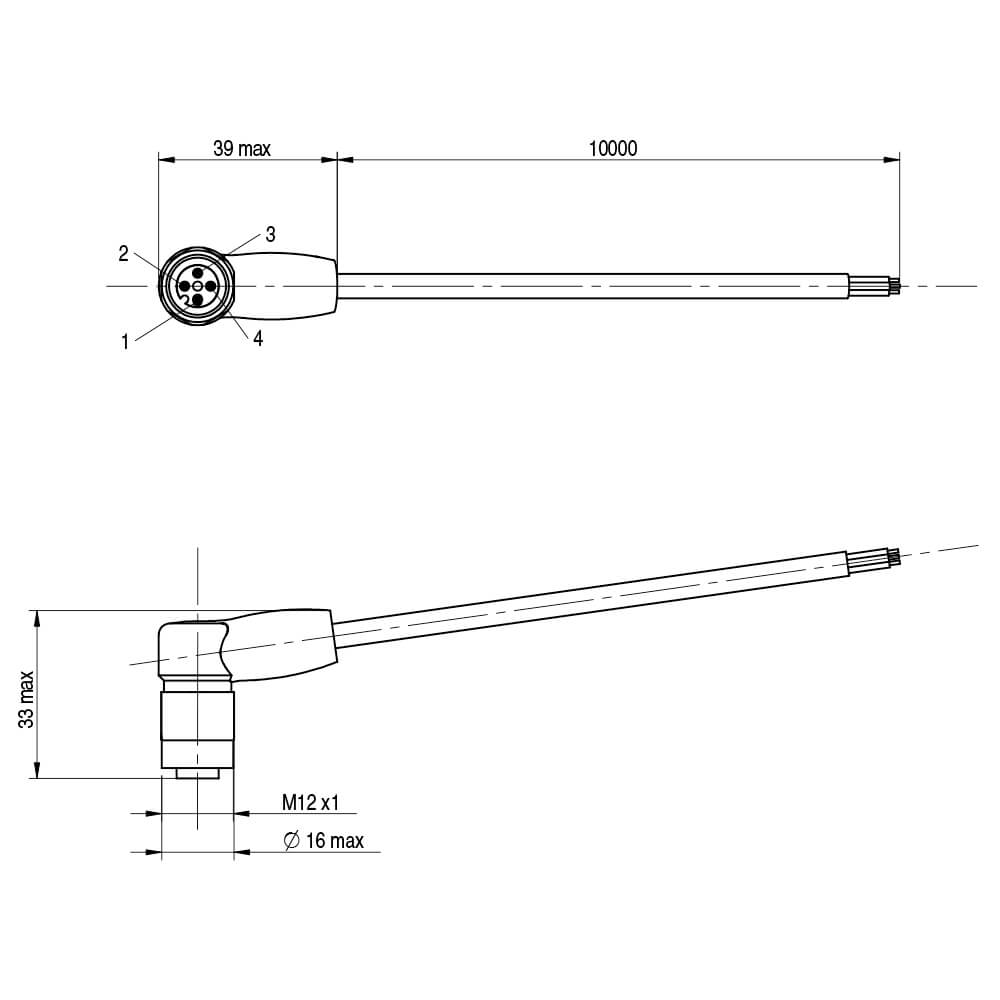

Fibre lengh (m) 10

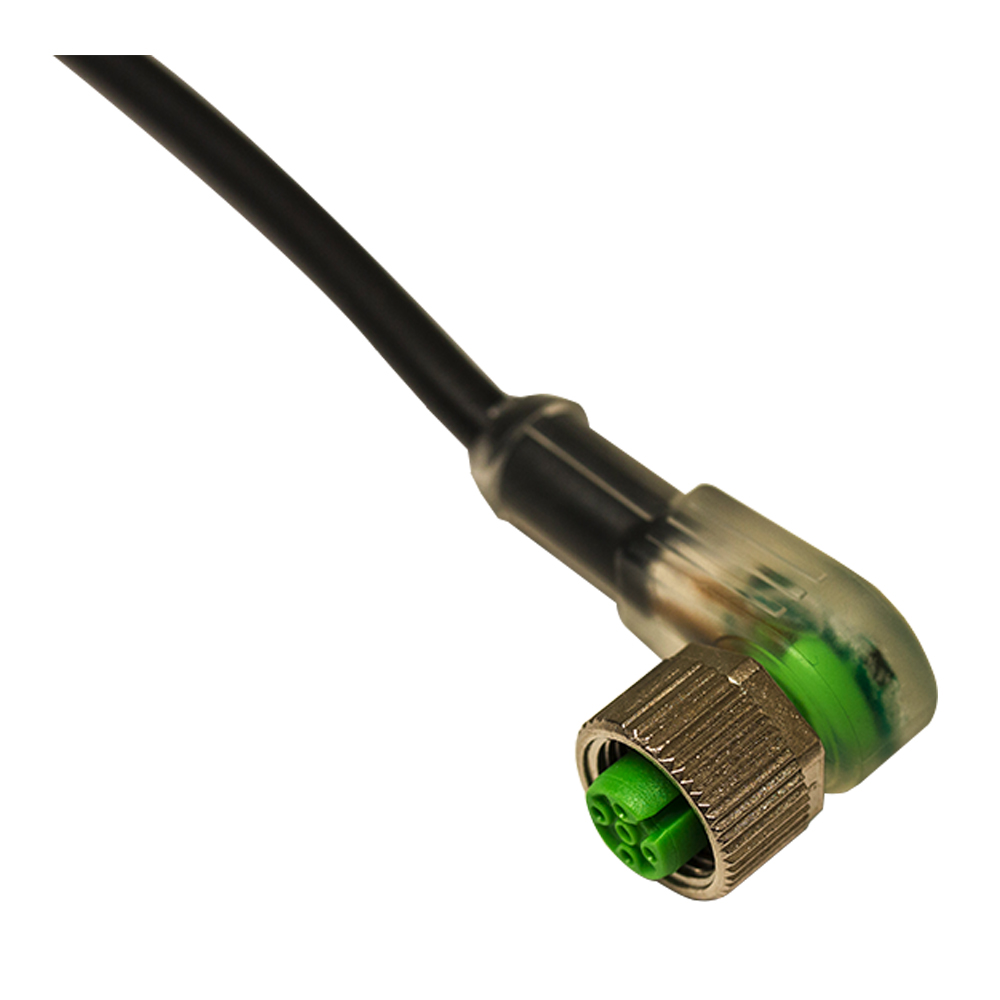

Head type 90°
Plug M12
Outer diameter Ø 4,5 mm ± 5%
Jacket material PVC CEI 2022 II OR
Wire isolation PVC
Conductors section 0,25 mm2 (32 x 0,10 mm2)
Model Femmina

Test/Approvals

Degree of protection IP67

Generical Data

Operating Temperature =10°C...+80°C (flexible installation)-25°C...+80°C (fixed installation)
Mechanical Protection IP67
