UR+DG

DGE/01-0A

Photo.d10,IR emiss.,Cable,Emitter

Control unit for miniaturized sensors with miniature photoelectric sensors

  • The unit allows the mouting of miniature pair of sensors suitable for very harsh environments (DG series)
  • LED indicators: alignment (stability), operating voltage, alarm and output state
  • Operating voltage AC or DC
  • Relay output and relay alarm output
  • Double timer with indipendent adjustments
  • Sensitivity adjustment
  • Possibility of mounting on panel
  • IP68 photoelectric sensors for applications in harsh environment
  • Sensing distance 60 m (HI), 30 m (LO)
  • Approvals: CE

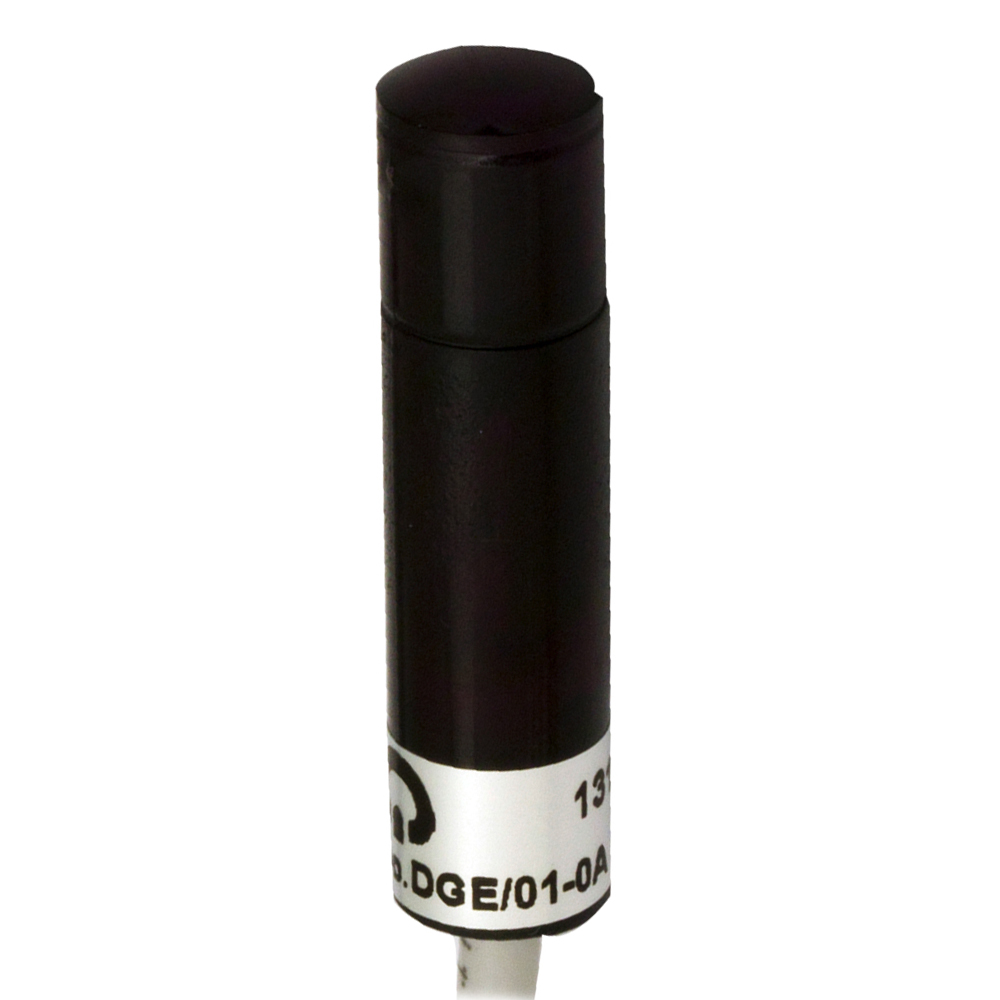

Indicative image

Technical features

Detection properties

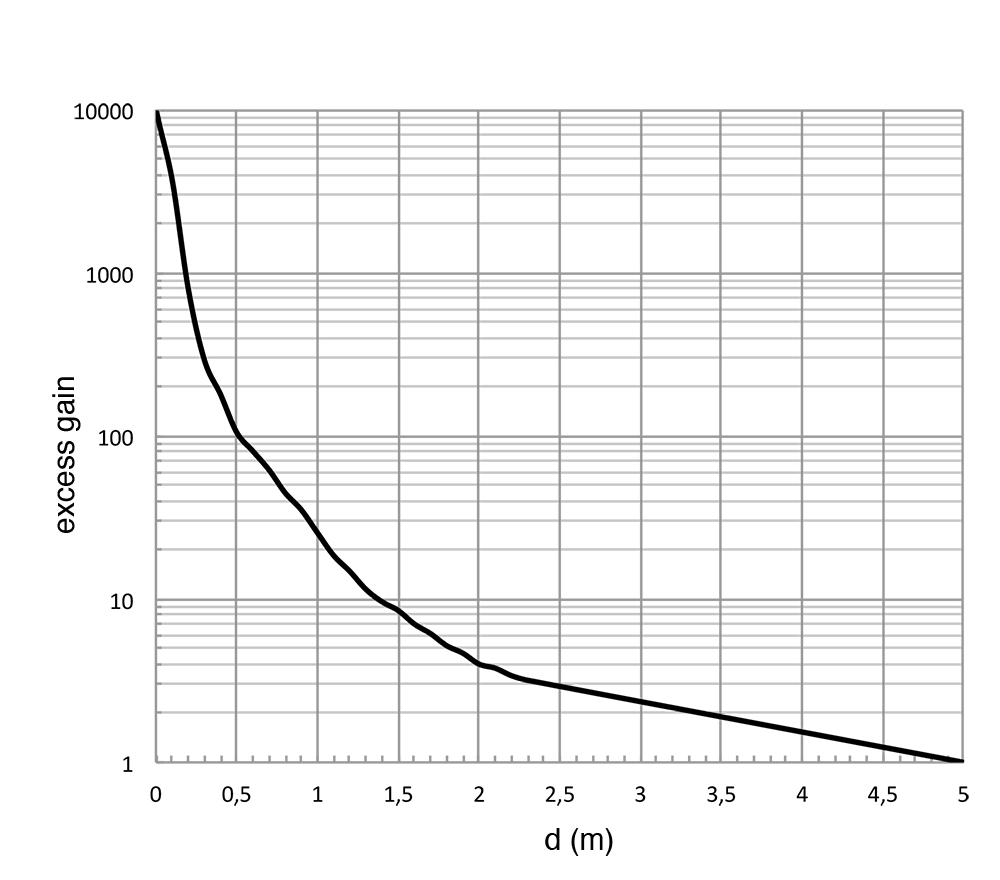

Nominal sensing distance 75m

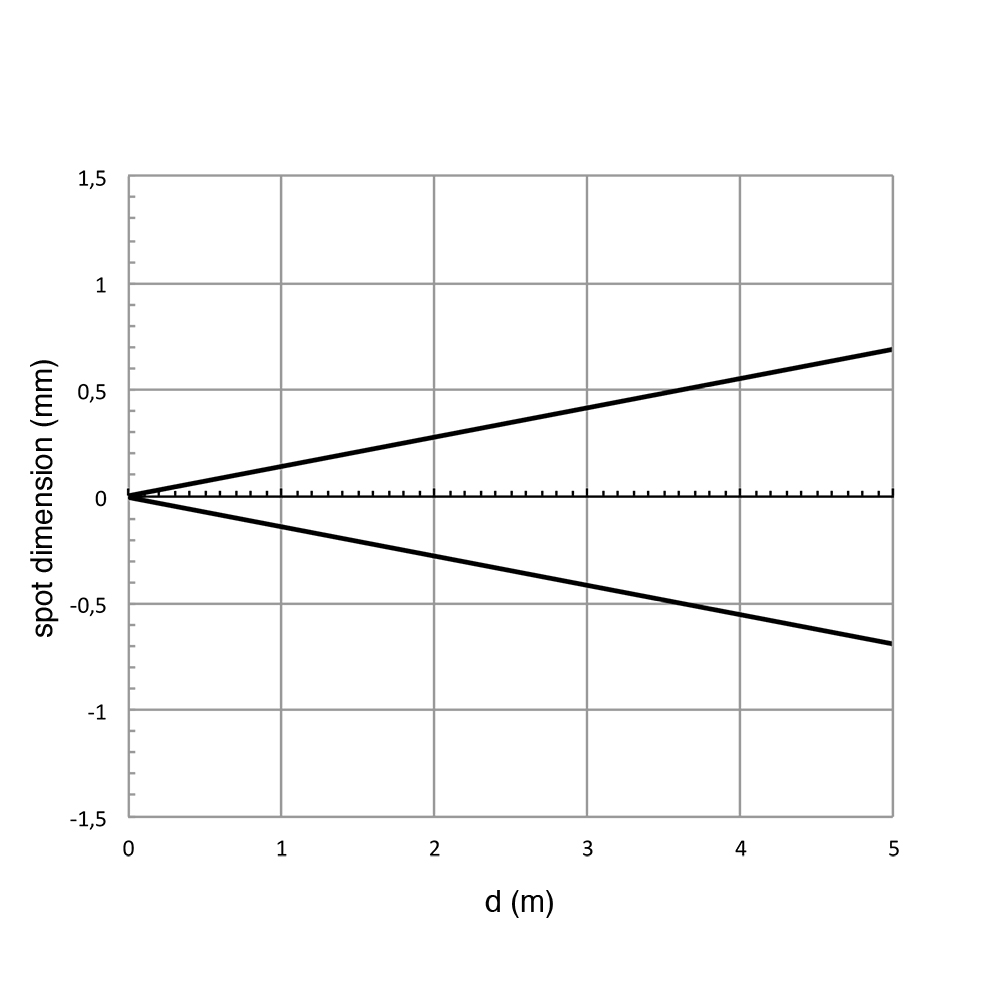

Beam angle ± 5°

Application

Function Principle Emitter
Optic position Axial

Electrical data

Operating Voltage from UR control unit
Emission Infrared
Interference to external light 20000 lux

Mechanical data

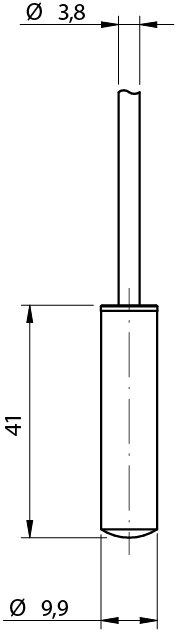

Dimensions Ø 10mm x 41mm
Housing Material PC / ABS cable exit

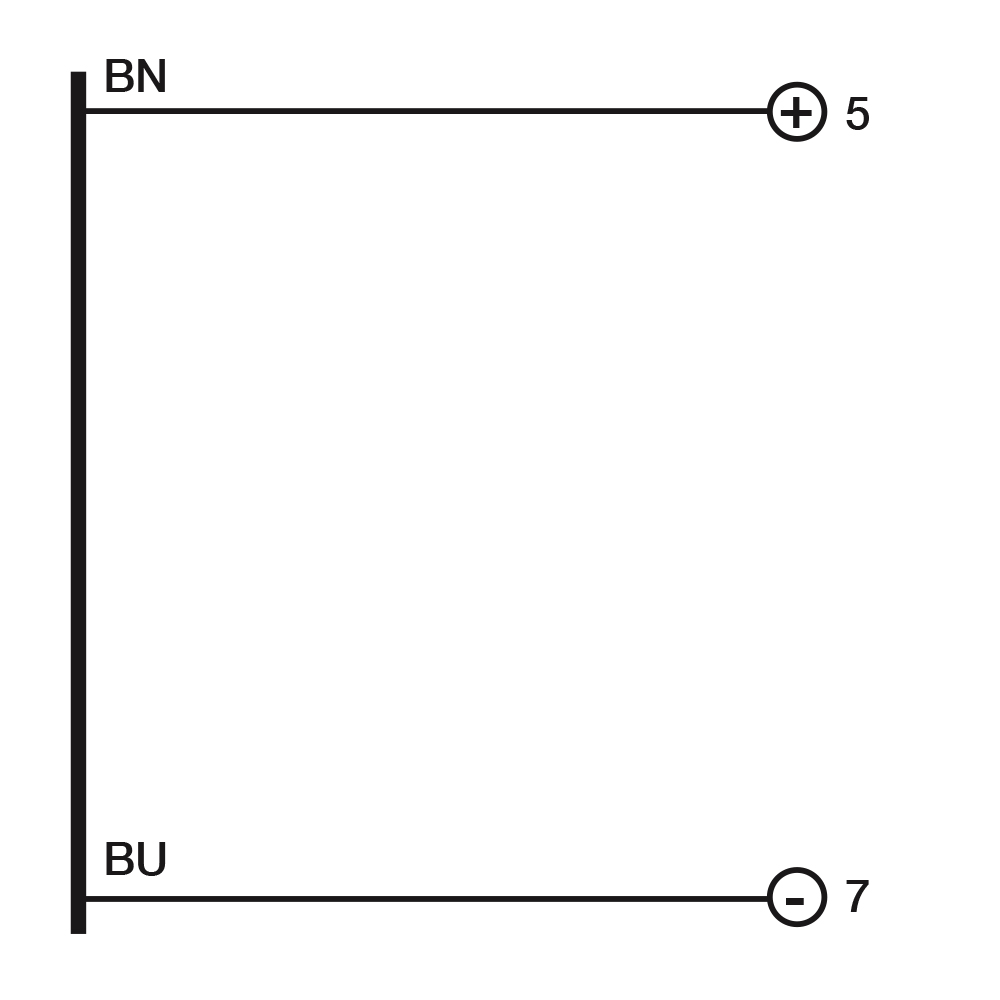

Connections 5m PVC cable
Active Head Material Polycarbonate
Operating temperature -20°C … +60°C
Diameter/Dimension Ø 10mm

Test/Approvals

Approvals CE
EMC compatibility Conforming with EMC directive according with EN60947-5-2
Degree of protection IP67

Generical Data

Dimensions Ø 10mm x 41mm
Operating Temperature -20°C … +60°C
Mechanical Protection IP67
