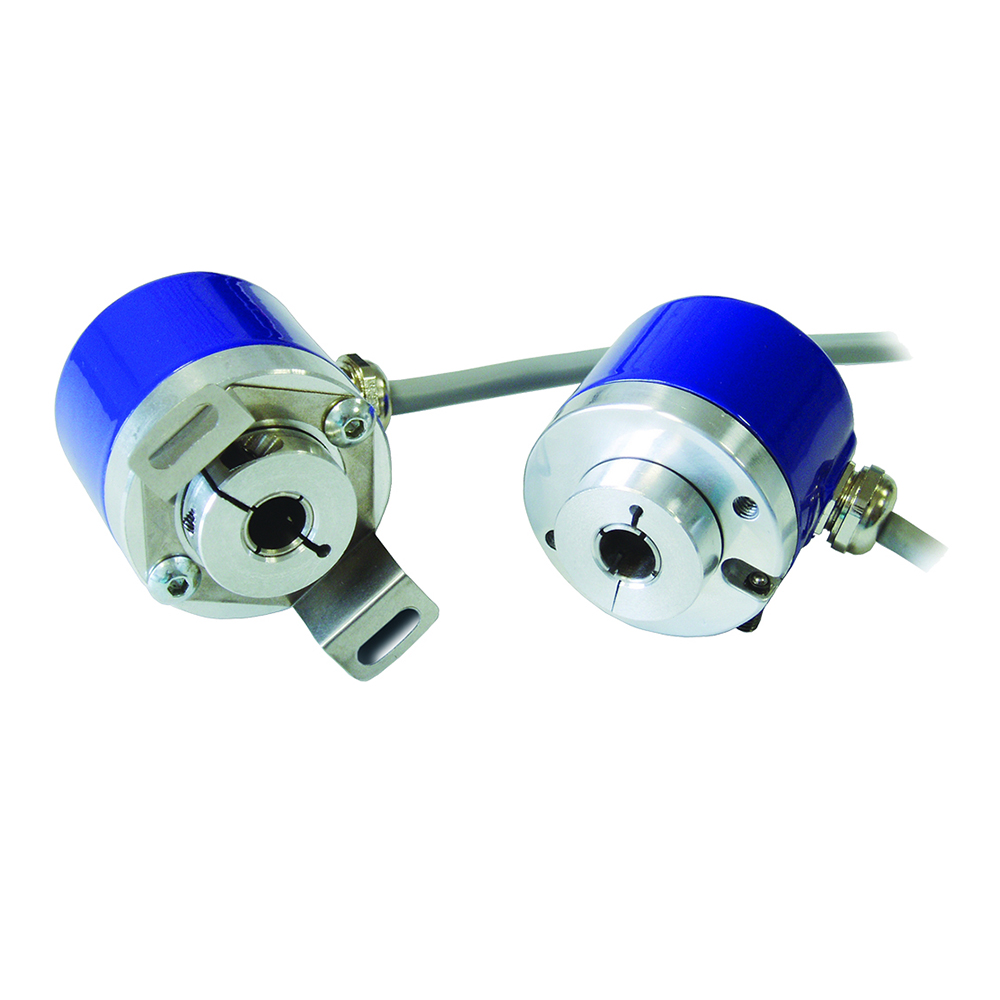

MDI38F/G
Series Catalogue
3 channel encoder (A / B / Z) up to 2500 ppr
Power supply up to +30 VDC with several electronic outputs available
Up to 220 kHz output frequency
Cable output, connectors available on cable end
Metal cover for high IP mechanical protection
Blind hollow shaft diameter up to 10 mm
Mounting by stator coupling or anti-rotation pin
Available products: 1
Model
Description
Incremental Encoder 38F/G, Blind hollow shaft
