CS-ME

95ASE1270

CSME-03VU24-Y14

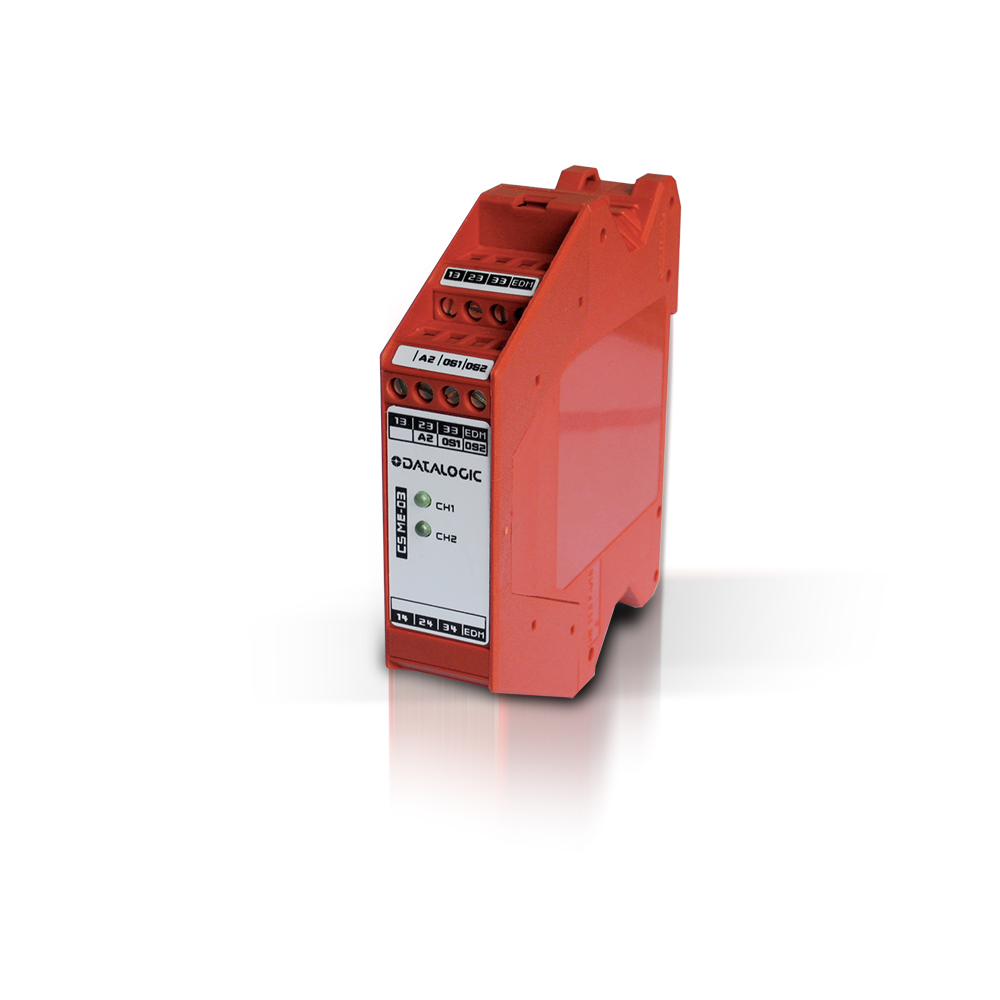

Forcibly guided relays interface for safety light curtains

Overview

  • Module for solid-state output circuits (optical barriers type 2 and 4)
  • 2 OSSD inputs
  • Up to safety category 4 (EN ISO 13849-1), SIL 3 (EN 62061), PL e (EN ISO 13849-1)
  • Supply voltage 24 Vdc
  • Output contacts: 3 NO safety contacts and 1 NC feedback/EDM contact
  • LED indicating the switching state of the channels 1 and 2
  • Small 22,5 mm housing with snap montage on DIN-rail

Technical Features

Detection properties
Nominal sensing distance n/a
controlled height n/a
Sensitivity adjustment n/a
Application
Description DIN-rail mount case
Functions Forcibly guided relay interface
Safety parameters
Type Safety accessory
Outputs
Output type Relay 3NO + 1NC
Response time 20,0
Electrical data
Operating Voltage 24 VDC
Emission n/a
Mechanical data
Dimensions 91x99x22.5
Connections Terminal block
Material Plastic
Generical Data
Dimensions 91x99x22.5
